Product Details:
Payment & Shipping Terms:
|
| Cargo Name: | PET Washing Line | Application: | PET Bottle Recycle To Flakes |
|---|---|---|---|
| Production Capacity: | 300~3000kg / H | Parts Contact Material: | 380V,50HZ,3P(customized) |
| Fakes Moisture: | 1 - 2% | Processing Steps: | Sorting Crushing Washing Drying |
| Waster Supply: | 5 - 7 M3 / Hr | Flakes Particle: | 8-16mm |
| High Light: | 1000kgh PET Recycling Line,250kw PET Recycling Line,1000kgh pet bottle recycling plant |
||
1000kg / H Waste PET Bottle Crushing Washing Recycling Machine PET Washing Line
Despriction:
The Waste Bottle PET Washing Line is used for crushing, cleaning, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET materials.
We have several different standards of PET bottle crushing washing recycling machine line according to different production capacity and requirement for cleaning (capacity of 300-3000kg/h).
Customers can have PET Washing Line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.

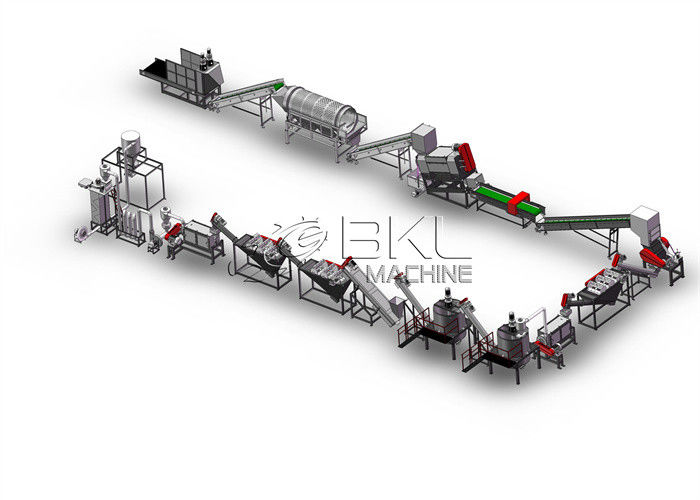

PET Bottle Crushing Washing Recycling Machine process:
Models&specifications
| del | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Man power | 4-6 person | 6-8 person | 8-10 person | 10-12 person | 12-16 person |
| Water supply | 4-5m3/hr | 8-10m3/hr | 8-12m3/hr | 10-15 m3/hr | 20-30 m3/hr |
Components of a typical PET Washing Line
| Belt conveyor | Infeeding |
| Bale Breaker | break the ba |
| Trommel screen | separate heavy stones, caps, sand or other small contamination down |
| Pre-washing machine | Pre -Washing the whole bottle surface |
| Label remover | Remove 95% lables on bottles before crushing |
| Sorting belt | sorting the dirties out before granulating. |
| Metal Detector | detects metal contamination |
| Granulator / Crusher | Wet crushing bottles to flakes size |
| Screw conveyor | Conveying material to downstream machines |
| High speed Friction washer | Friction washing and cleaning flakes |
| Single screw or double screw washing tank | flakes floating washing and conveying. |
| Hot Washing Tank/ steam washer | Hot wash with detergent for clean PET flakes and remove glue |
| Horizontal dewatering machine ( Dehydrator ) | Dehydrate flakes to dry flakes |
| Second granulator (optional) | Crush flakes to final size required. |
| Zig-Zag label separato (air classifier) | separate labels in the crushed flakes. |
| Wind conveying system | Material transport and bagging |
| Control cabinet | control the whole system intensively. |
PET washing line Features:

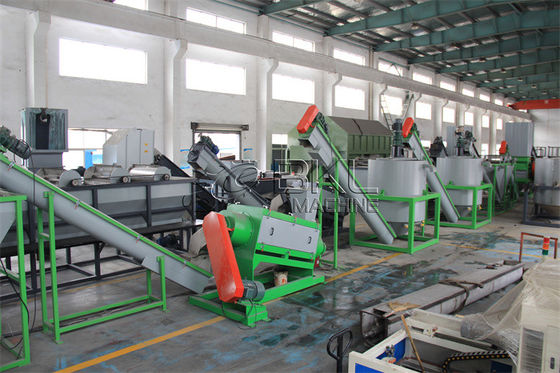

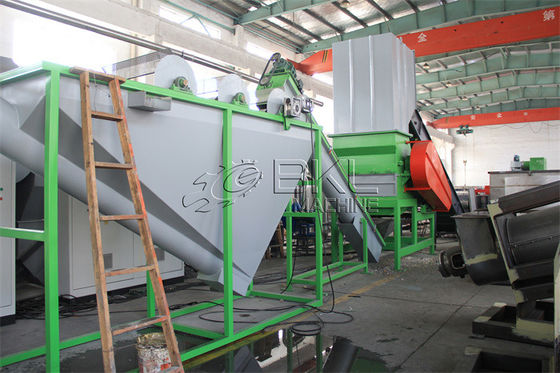

Detailed Photos:
