Product Details:
Payment & Shipping Terms:
|
| Cargo Name: | PE Film Recycling Line | Automatic Grade: | Automatic |
|---|---|---|---|
| Plastic Material: | PP PE HDPE LDPE LLDPE | Input Capacity: | 100-2000kg/h |
| Application: | Film,bottles,fiber,profile Wastes | Final Moisture: | 1-2% For PP PE Flakes |
| Core Components: | Crusher, Washer, Dehydrator Dryer | Video Out-going-inspection: | Provided |
| Highlight: | HDPE PE Plastic Recycling Lines,100kg/h Plastic Recycling Lines,100kg/h PE film recycling line |
||

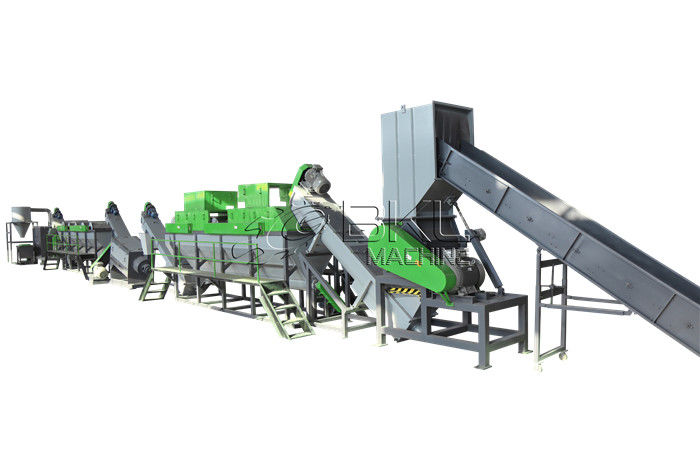

Soft Plastic HDPE LDPE PE film recycling line
Description
PE film recycling line is the ideal solution for your plastic film recycling needs.
This fully automated washing line takes plastic PP / PE films (polypropylene and polyethylene films) and turns them into clean, contaminant-free film pieces that can be used to produce high-quality PP / PE granules in the pelletizing process. The pellets produced can then be used to manufacture new plastic products.
To fully wash dirty or soiled PP / PE film, a series of recycling machinery must be used in a specific order.
Our standard, high-efficiency PE film washing line offers the most effective way to clean plastic films and ranges from an input capacity of 500kg/h upwards to 2,000kg/h. The output capacity is dependant on the volume of contamination within the PE films you’re recycling.
While our standard PE film recycling line is sufficient for most facilities, custom setups with additional machinery and increased capacity can be designed for your specific needs
Due to the soft material has a problem is very loose, and has much water content inside. Our company has carried out a lot of research in response to this series of problems. To this end, it has been found that the use of an extruder pelletizer after crushing and cleaning will have a better effect and a high energy utilization rate. The material can be directly used for pelletizing or other extrusion applications.
Product features and details of PE film recycling line:
Features:
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
Details:
| 1 | Save labor, feeding waste plastic by belt conveyor. |
| 2 | Machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water, which can wash plastic preliminary and improve crushing efficiency. |
| 4 | High speed friction washer can separate dirty out by the high rotating speed of the screw. |
| 5 | Floating washer tank separate different plastic by density, the plastic with a density less than water float to the water surface, and the plastic with a density bigger than water sink to the bottom of the tank. |
| 6 | Screw conveyor is used to convey plastic pieces. |
| 7 | Hot washer is used to separate the oil from the plastic. |
| 8 | Dryer, we have centrifugal dewatering machine and squeeze dryer for you choose. |
Technical parameter of PE film recycling line
For soft PP / PE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
Detailed Photos
