Product Details:
Payment & Shipping Terms:
|
| Name: | PET Recycling Line | Application: | PET Bottle Recycling |
|---|---|---|---|
| Material Processed: | PET BOTTLE,Plastic Flakes | Plastic Type: | PET |
| Raw Material: | Waste PE PP PET Bottle | Key Selling Point: | High Productivity Competitive Price |
| Final Products: | Clean Flakes 8-16mm(customized) | Washing Machine Parts: | Contact With PET Material Are Made Of Stainless Steel 304 |
| High Light: | 500kg h PET Recycling Line,16mm PET Recycling Line,500kg h Plastic Recycling Machine |
||
PET Recycling Line
Description:
PET Plastic Recycling Machine is the best solution for PET bottles recycling and washing. The complete washing machine line could turn baled dirty polyester bottles into clean and dry PET flakes which could used be pelletized to granulas or for PET fiber making. This line is controlled with a central electrical control panel from the begining to the end
We have several different standards of PET bottle crushing washing recycling machine line according to different production capacity and requirement for cleaning (capacity of 300-3000kg/h).
Customers can have PET bottle crushing washing recycling machine line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.
PET Plastic Recycling Machine Process include:
Components of a typical 500kg/h PET Plastic Recycling Machine:
| Belt conveyor | 1set |
| Label Remover | 1set |
| Metal detector + automatic separation device | 1set |
| Manual Sorting Table | 1set |
| Belt Conveyor | 1set |
| Crusher | 1set |
| Screw loader | 1set |
| Floating tank | 1set |
| Screw loader | 1set |
| Steam washer | 1set |
| Screw loader (option) | 1set |
| Steam washer(option) | 1set |
| Screw loader | 1set |
| High speed friction machine | 1set |
| Floating washer | 1set |
| Spray washer(option) | 1set |
| Centrifugal dewatering machine | 1set |
| Zig-zag label blower | 1set |
| Silo | 1set |
| Electric cabinet | 1set |
Models&specifications:
| Model | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Man power | 4-6 person | 6-8 person | 8-10 person | 10-12 person | 12-16 person |
| Water supply | 4-5m3/hr | 8-10m3/hr | 8-12m3/hr | 10-15 m3/hr | 20-30 m3/hr |
The final usage of PET flakes processed by our PET Plastic Recycling Machine:
1. PET flakes for Bottle to Bottle – B to B quality (suitable to be extruded at food grade quality)
2. PET flakes for Film or Sheets
3.PET flakes for Fibers
4.PET flakes for Strapping

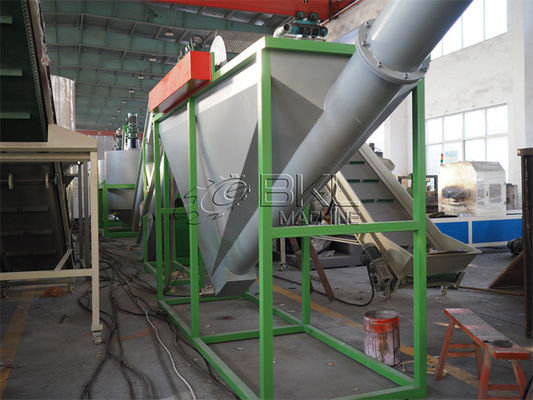

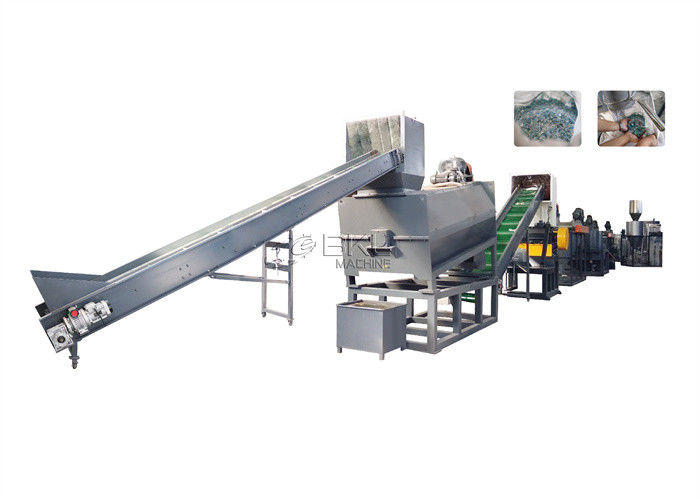

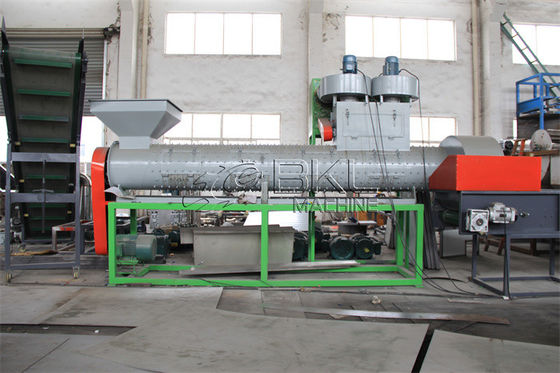

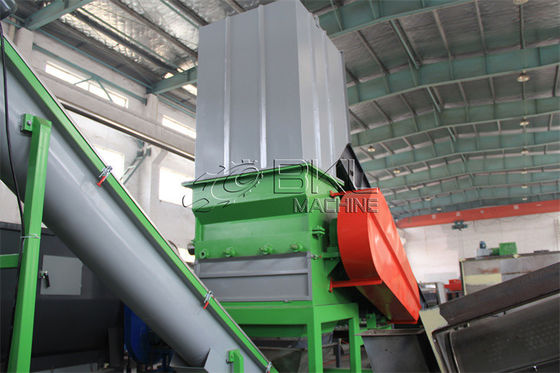

Photos of PET Plastic Recycling Machine:
