| Name: | PET Recycling Machine | Application: | PET Bottle Recycling And Processing |
|---|---|---|---|
| Processing Steps: | Debale,Delabel,Sorting,Crush,Wash,Dry,Label Classifier | Capacity: | 300-2000kg/h |
| Raw Material: | Waste PET Bottles | Final Products: | Clean Flakes 8-16mm(customized) |
| Material: | Stainless Steel,carbon Steel | Impuritiy: | 100-300ppm Up To Different Machine And Material |
| High Light: | 1000kg H pet bottle crushing machine,300ppm pet bottle crushing machine,1000kg H pet recycling machine |
||
PET Recycling Machine
Description:
Post-consumer PET bottles are doubtless among the most important components of the plastic recycling market. Recycled PET may be used in a wide variety of final applications, with very interesting and remunerable financial returns for the recycling companies.
PET Recycling Machine is the best solution for PET bottles recycling and washing. The complete washing machine line could turn baled dirty polyester bottles into clean and dry PET flakes which could used be pelletized to granulas or for PET fiber making. This line is controlled with a central electrical control panel from the begining to the end
Customers can have PET bottle crushing washing recycling machine line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.
PET Recycling Machine Main Process include:
Models&specifications:
| Model | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Man power | 4-6 person | 6-8 person | 8-10 person | 10-12 person | 12-16 person |
| Water supply | 4-5m3/hr | 8-10m3/hr | 8-12m3/hr | 10-15 m3/hr | 20-30 m3/hr |
Components of a typical 1000kg/h PET Recycling Machine:
| Rubber level conveyor | 1 set |
| Bale breaker | 1 set |
| Belt Conveyor | 1 set |
| Trommel | 1 set |
| Belt conveyor | 1set |
| Label Remover | 1set |
| Metal detector + automatic separation device | 1set |
| Manual Sorting Table | 1set |
| Belt Conveyor | 1set |
| Crusher | 1set |
| Screw loader | 1set |
| Floating tank | 1set |
| Screw loader | 1set |
| Steam washer | 1set |
| Screw loader | 1set |
| Steam washer | 1set |
| Screw loader | 1set |
| High speed friction machine | 1set |
| Floating washer | 1set |
| Spray washer | 1set |
| Centrifugal dewatering machine | 1set |
| Zig-zag label blower | 1set |
| Silo | 1set |
| Electric cabinet | 1set |
Features of PET recyclinng Machine:
1.Final PET flakes’ humidity below 1%, impurities 100ppm, PVC label content 100ppm.
2.Parts which contact PET materials use SUS304.
3.World famous brand components will be applied to the waste PET bottle crushing washing recycling machine line, such as NSK bearing, Siemens contactor, Omron temperature controller, Siemens invertor, Siemens PLC controller, etc.
4. The whole production line with CE certification

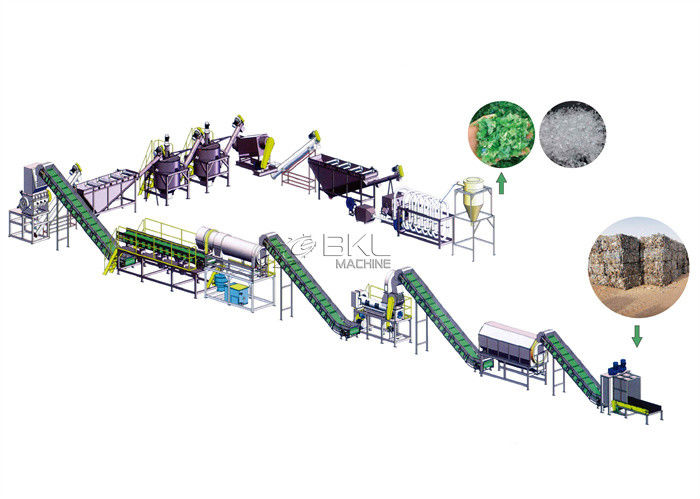

Photos of PET Recycling Machine:
