Product Details:
Payment & Shipping Terms:
|
| Name: | PET Recycling Equipment | Application: | PET Bottle Recycling And Processing |
|---|---|---|---|
| Process: | Debaler,Delable,Sorting,Crush,Wash,Drying | Production Capacity: | 1000kg/h |
| Raw Material: | Waste PET Bottles | Final Products: | Clean Flakes 8-16mm(customized) |
| Crusher Model: | 1200 | Washing Steps: | Hot Washing, Friction Washing,floating Washing |
| Keyword: | PET Recycling Line | ||
| High Light: | 1000KG H pet bottle flakes machine,16mm pet bottle flakes machine,16mm PET Recycling Equipment |
||
PET Bottle Washing Recycling Plant PET Recycling Equipment
Description:
Post-consumer PET bottles are doubtless among the most important components of the Plastic Recycling Plant. Recycled PET may be used in a wide variety of final applications, with very interesting and remunerable financial returns for the recycling companies.
The waste PET Recycling Equipment line is used for crushing, washing, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET materials.
Customers can have PET Bottle Washing Recycling Plant to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.
PET Recycling Equipment process:
A typical PET recycling equipment line is consisit of the following components:
| Belt conveyor | For waste material infeeding |
| Bale Breaker | opens the tight bales of PET bottles |
| Trommel screen | separate heavy stones, caps, sand or other small contamination down |
| Pre-washing machine | Pre -Washing the whole bottle surface |
| Label remover | Remove 95% lables on bottles before crushing |
| Sorting belt | sorting the dirties out before granulating. |
| Metal Detector | detects metal contamination |
| Granulator / Crusher | Wet crushing bottles to flakes size |
| Screw conveyor | Conveying material to downstream machines |
| High speed Friction washer | Scrub washing and cleaning flakes |
| Single screw or double screw washing tank | flakes floating washing and conveying. |
| Hot Washing Tank/ steam washer | Hot wash with detergent for clean flakes and remove glue |
| Horizontal dewatering machine ( Dehydrator ) | Dehydrate flakes to dry flakes |
| Second granulator (optional) | Crush flakes to final size required. |
| Zig-Zag label separato (air classifier) | separate labels in the crushed flakes. |
| Wind conveying system | Material transport and bagging |
| Control cabinet | control the whole system intensively. |
Models&specifications of PET Recycling Equipment :
| Model | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Man power | 4-6 person | 6-8 person | 8-10 person | 10-12 person | 12-16 person |
| Water supply | 4-5m3/hr | 8-10m3/hr | 8-12m3/hr | 10-15 m3/hr | 20-30 m3/hr |
Final PET products quality for reference:
Final Moisture of PET flakes: < 1-2%
Total Impurity: < 200ppm
PVC Content: < 100ppm
PE/PP Content: < 100ppm
Particle Size: < 14-16mm
Final products real quality data is up to the real material situation,too.

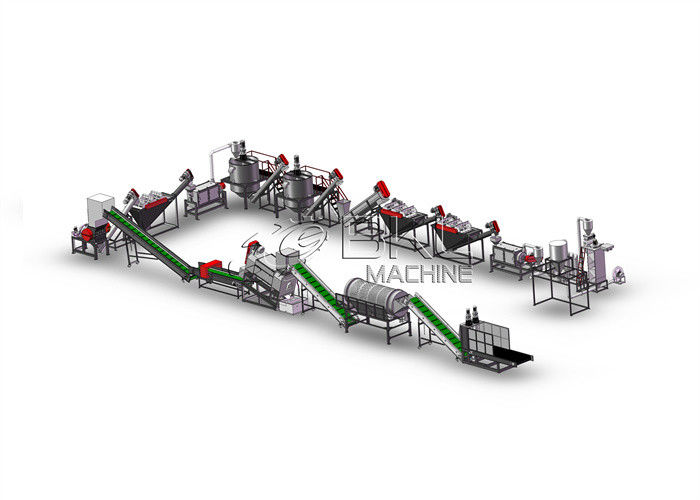

Photos of PET Recycling lines:
