Product Details:
Payment & Shipping Terms:
|
| Name: | PET Bottle Flakes Hot Washing Machine | Processed Material: | PET Flakes |
|---|---|---|---|
| Capacity: | 1000kg/h | Heating Source: | Electrical Heating Or Steam Heating |
| Stirring Motor: | 5.5KW | Keywords: | PET Flakes Hot Washer |
| Material: | Part Contact With Material Are SS304 | Application: | Washing Machine In PET Recycling Line |
| High Light: | 5.5KW pet bottle flakes machine,SS304 pet bottle flakes machine,SS304 pet flakes hot washing machine |
||

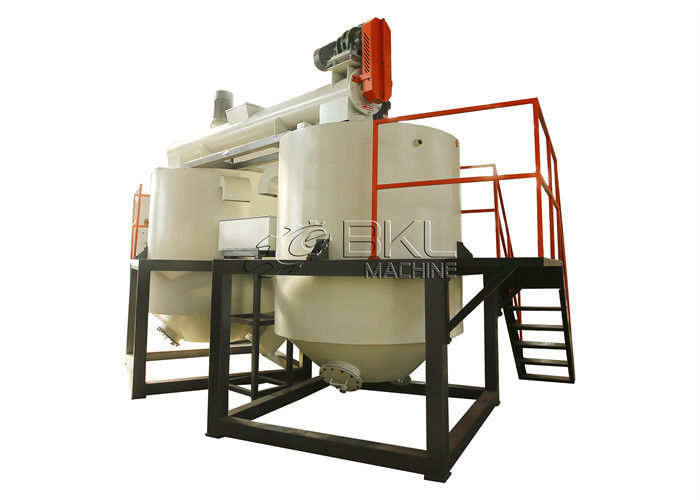

PET Bottle Flakes Hot Washing Machine Of PET Recycling Line
Description :
PET Bottle Flakes Hot Washing Machine (PET flakes hot washer) is normally used in a PET bottle washing recycling line.
The final purpose is get high quality hot washed PET flakes.
During working, Customer could use steam boiler to supply the hot steam for heating water inside the hot washing machine chamber to keep temperature above 90℃. Meanwhile,caustic soda or detergent will be added into the water carefully for clean the flakes enough.The flakes will stay in the machine under the stirring mixing for 8-10 min,The sinking PET flakes will transfer to downstream recycling machines through the bottom screw.
The floating material will be separate out from top discharge tunnel.So It could remove impurity effectively such as glues,oil,liquid ect.The inside layer are all made of Stainless steel. Middle is insulating layer keep the water warm always.
PET Bottle Flakes Hot Washing Machine Standard model & specifications:
| Model | Drum diameter | Motor power | Electrical heating sticks |
| HW-1600 | 1600mm | 5.5kw | 6 pieces |
| HW-2000 | 2000mm | 7.5lw | 8 pieces |
| Steam heating circle pipes are equipped.Steam source supplied by Customer. | |||
Function: of PET flakes Hot washer :
High Quality Pet Flakes Hot Washer / PET Flakes Hot Washing Machine / PET Flakes Washing Machine
1. With hot water washing to remove oil/glue and other dirty from the flakes .
2.The tank made with insulation layer to save energy.
3. Feeding caustic soda/detergent to washing
4.Advised to supply heat by steam, customer can buy a steam boiler for steam supply, the boiler can heating up by gas/diesel/petrol/LPG
Photos for reference :
