| Cargo Name: | PET Bottle Washing Machine | Application: | PET Bottle Recycle To Flakes |
|---|---|---|---|
| Production Capacity: | 500~600kg / H | Parts Contact Material: | 380V,50HZ,3P(customized) |
| Fakes Moisture: | 1 - 2% | Processing Steps: | Sorting Crushing Washing Drying |
| Final Impurity: | 100-200ppm | Flakes Particle: | 8-16mm |
| Keyword: | PET Bottle Washing Machine | ||
| High Light: | 380V 50HZ plastic washing machine,200ppm plastic washing machine,200ppm pet flakes washing machine |
||

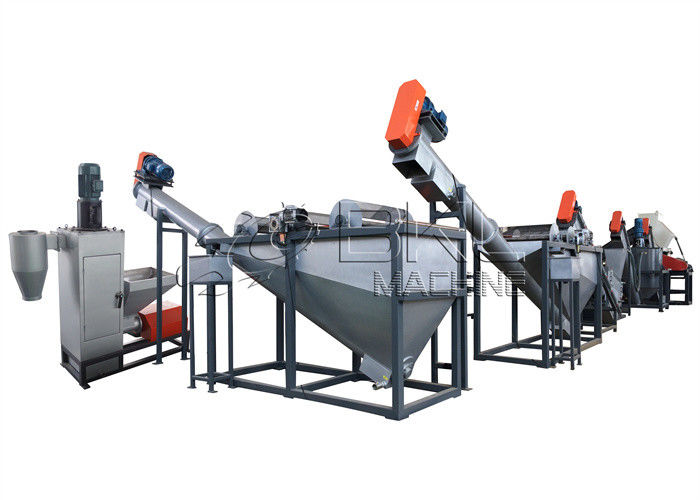

PET Bottle Washing Machine PET Recycling Machine Line
Despriction:
Our PET Bottle Washing Machine is used for crushing, cleaning, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET flakes .
We have several different standards of PET bottle crushing washing recycling machine line according to different production capacity and requirement for cleaning (capacity of 300-3000kg/h).
Customers can have PET Washing Line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.
PET Bottle Washing Machine process:
Models&specifications
| del | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Man power | 4-6 person | 6-8 person | 8-10 person | 10-12 person | 12-16 person |
| Water supply | 4-5m3/hr | 8-10m3/hr | 8-12m3/hr | 10-15 m3/hr | 20-30 m3/hr |
Components of a typical PET Bottle Washing Machine
| Belt conveyor | Infeeding |
| Bale Breaker | break the ba |
| Trommel screen | separate heavy stones, caps, sand or other small contamination down |
| Pre-washing machine | Pre -Washing the whole bottle surface |
| Label remover | Remove 95% lables on bottles before crushing |
| Sorting belt | sorting the dirties out before granulating. |
| Metal Detector | detects metal contamination |
| Granulator / Crusher | Wet crushing bottles to flakes size |
| Screw conveyor | Conveying material to downstream machines |
| High speed Friction washer | Friction washing and cleaning flakes |
| Single screw or double screw washing tank | flakes floating washing and conveying. |
| Hot Washing Tank/ steam washer | Hot wash with detergent for clean PET flakes and remove glue |
| Horizontal dewatering machine ( Dehydrator ) | Dehydrate flakes to dry flakes |
| Second granulator (optional) | Crush flakes to final size required. |
| Zig-Zag label separato (air classifier) | separate labels in the crushed flakes. |
| Wind conveying system | Material transport and bagging |
| Control cabinet | control the whole system intensively. |
Features of PET bottle washing machine:
1.Final PET flakes’ humidity below 1%, impurities 100ppm, PVC label content 100ppm.
2.Parts which contact PET materials use Stainless steel.
3.World famous brand components will be applied to the waste PET bottle crushing washing recycling machine line, such as NSK bearing, Siemens contactor, Omron temperature controller, ABB invertor, Siemens PLC controller, etc.
4. The whole production line with CE certification
Detailed Photos:
