| Name: | Sink Float Separation Tank | Processed Material: | PET PP PE ABS PS PC Ect. |
|---|---|---|---|
| Width: | 1m~1.8m | Length: | 4m~8m |
| Interior Material: | Stainless Steel 304 | Exterior Support Frame: | Carbon Steel |
| Application: | Washing Machine In PET Recycling Line | Rotating Drum: | Quantity Up To The Tank Length 4~6pcs |
| Screw Conveyor: | 2.2kw~5.5kw | Keyword: | Sink Float Separation Tank |
| High Light: | 1.8m Sink Float Separation Tank,PET Sink Float Separation Tank,1.8m sink float plastic separation |
||
Efficient Sink Float Separation Tank Of PET Recycling Line
Description :
Sink float separation tank is an essential machine for washing and separating mixed plastics. It's an effective machine commonly used in PET bottle recycling plant due to its unique ability to separate PET plastic (bottles)from PP and PE plastic (like bottle caps and labels)
When filled with waters in the tanks,The material with density lower than water density will be float,such as the PP and PE. The material with density higher than the water density will sink down,like the PET, PVC,PVB, stones,dust,glasses,metals ect. We could separate main material with other types efficiently. Meanwhile, after washed by large amount of water, plastic materials will get more clean with this processing. Washing rollers equipped will help improve cleaning effect and pushing material forward to next step. In PET line, the PET flakes sink down will be discharge out with screw feeder from bottom.
Except the support frame and platform, All the material used in the tank body and rotating drums are all made of stainless steel
.
Varies models are supplied for different plastic application.Certainly, We could also design as per your special request
Applications and Function:
PET recycling line
In PET bottle recycling plant, The PET bottles will be curshed in to flakes which will mixed with PP PE labesl or caps . Luckily, PET flakes could be easily separated from this sink float separtion tank. Cause PET has a density higher than water which will quickly find it's way to the bottom of tank while the PP and PE plastics remains float on water top.
Plastic PP PE film flakes Recycling Washing Line
Film or rigid flakes made from PP and PE plastic floats on the top while varies contaminants such as dirt ,rocks, metals and glass sink to the bottom which will collected via horizontal screw and lifting screw conveyor.
Our sink float separation tank can also be used for other types of Plastics ABS PS PC ect.

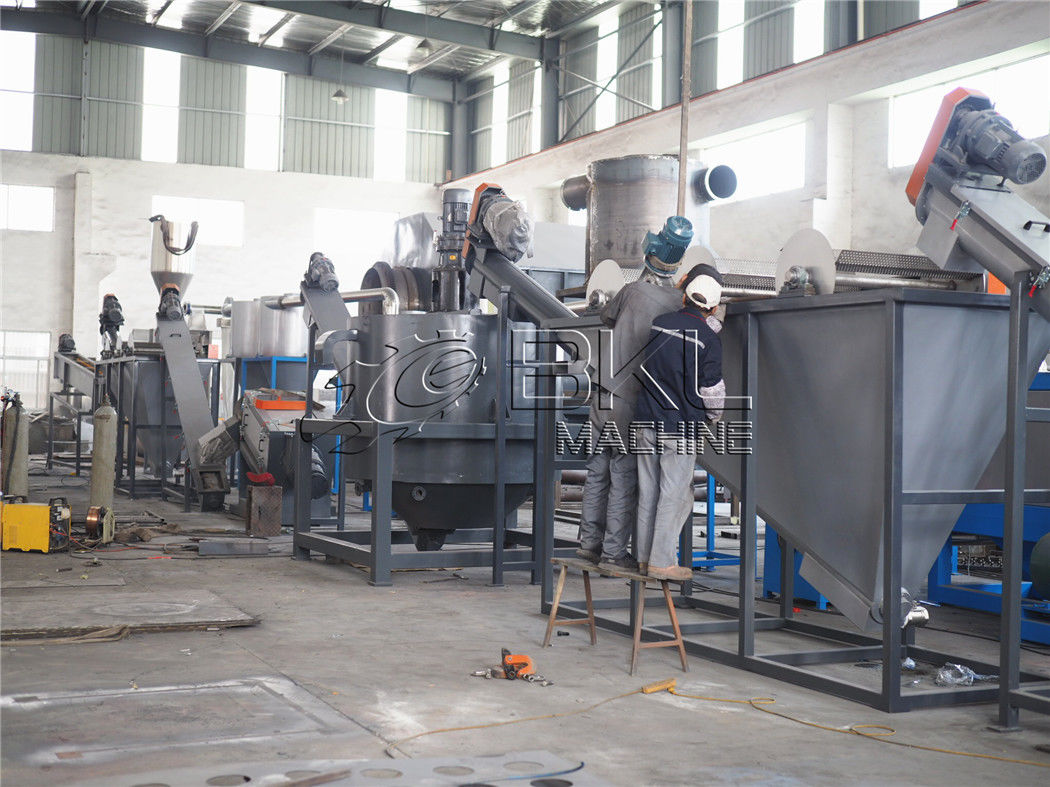

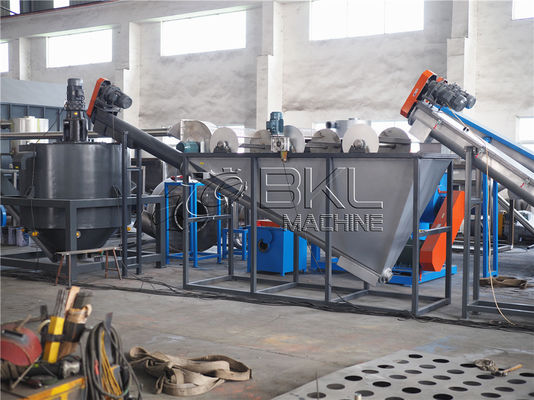

Photos for reference :
