Product Details:
Payment & Shipping Terms:
|
| Name: | Film Screw Press Squeezer | Usage: | Drying And Remove Water From The Washed Plastic Film |
|---|---|---|---|
| Screw Barrel Material: | 38CrMoALA | Driving Motor: | 75KW |
| Cutting: | 4 Pcs Blades, 4KW | Material Conveying: | 4KW |
| Application: | PE PP Film Recycling Washing Line | Keyword: | Plastic Film Screw Press Squeezer |
| Highlight: | 38CrMoAL plastic film washing line,pp pe plastic film washing line,Screw Press film dryer machine |
||
Plastic Film Screw Press Squeezer Plastic Squeezing Machine
Description:
Plastic Film Screw Press Squeezer is a fully automatic squeezing and densifying machine for film and non-woven bags recycled. The system makes use of a screw press to squeeze the material throughly for removing a majority of moisture. For further the drying process,the plastic is heated and densified into small granules that can be used directly in plastic extruders or compactor type pelletizing line.
The self-friction power and auxiliary electric heating system will turn the PE film material at semi-plasticized condition and extruded out from the mould and been cut by speed rotor blades. The cut pieces will be cooling by air and transmit to cyclone silo. The final products will be regular high density granulas/flakes which increase output a lot on pelletizing process.
Features:
1. Latest technology. Instead Dehydrator (Dewatering) machine.
2. Application: wet LDPE LLDPE HDPE PE film, bags, PP woven bags.
3. Low power consumption.
4. Final moisture percent: 3~8% (up to different material type and working situtaion)
Models &specification paremeter:
| Model | JG250 | JG300 | JG320 |
| Capacity | 200-300 | 400-600kg/h | 700-1000kg/h |
| Screw diameter | Φ250mm | Φ300mm | Φ320mm |
| Main Motor Power | 75KW | 110KW | 160KW |
| Heating power | 9KW | 10KW | 12KW |
| Cutting blade | 4pcs | 4pcs | 4 pcs |
| Cutting power | 4KW | 5.5KW | 7.5KW |
| Blower power | 4KW | 5.5KW | 7.5KW |
| FInal moisture content | 3~8% | 3~8% | 3~8% |
| Cutting particle size | Approx 12mm | Approx 12mm | Approx 12mm |
| Cylone volume | 1000L | 1000L | 1000L |
| Pipe connection and silo material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |

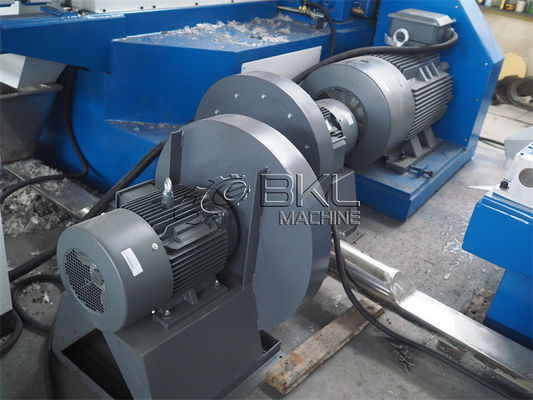

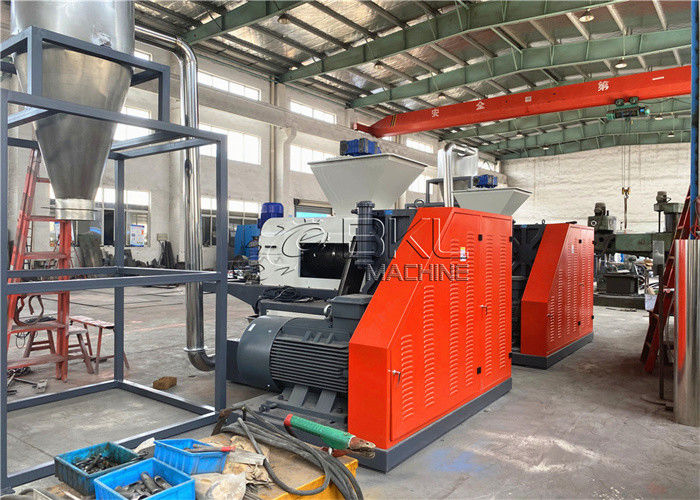

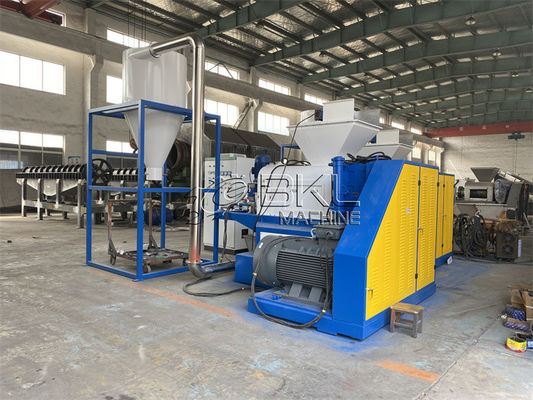

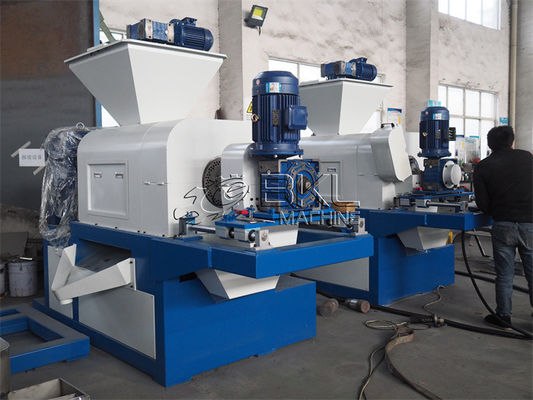

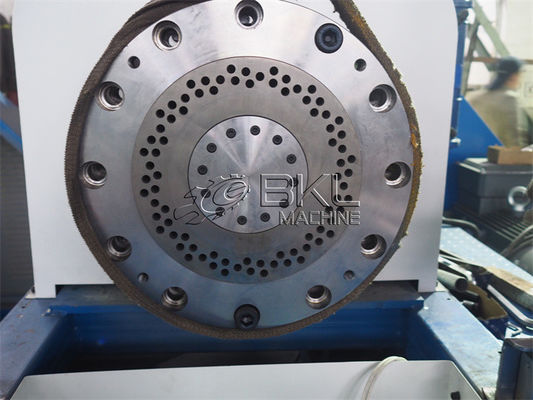

Detailed Photos of lastic Film Screw Press Squeezer:
