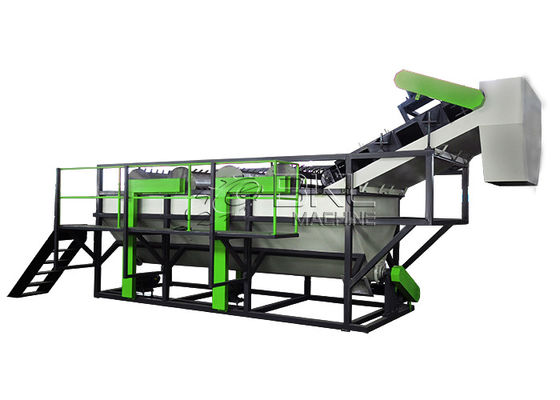

Stainless steel Plastic Recycling Washing machine

Stainless steel Plastic Recycling Washing machine
Stainless steel Plastic Recycling Washing machine

Large Image :  Stainless steel Plastic Recycling Washing machine

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: BEAKELAND
Certification: CE
Model Number: BKL

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Delivery Time: 45~65 WORKING DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 25 SET/ YEAR
Detailed Product Description
Name: Sink Float Washing Tank Processed Material: PP PE
Width: 1m~1.8m Length: 4m~8m
Interior Material: Stainless Steel 304 Exterior Support Frame: Carbon Steel
Application: Washing Machine In PET Recycling Line Rotating Drum: Quantity Up To The Tank Length 4~6pcs
Screw Conveyor: 2.2kw~5.5kw Keyword: Plastic Recycling Washing Line
Highlight:

ss304 Plastic Recycling Washing Line

,

5.5kw Plastic Recycling Washing Line

,

ss304 sink float separation tank

PP PE Plastic Sink Float Washing Tank In Plastic Recycling Washing Line



Description :



Sink float washing tank is an essential machine for washing and separating mixed plastics. It's an effective machine commonly used in PET bottle recycling plant due to its unique ability to separate PET plastic (bottles)from PP and PE plastic (like bottle caps and labels)



When filled with waters in the tanks,The material with density lower than water density will be float,such as the PP and PE. The material with density higher than the water density will sink down,like the PET, PVC,PVB, stones,dust,glasses,metals ect. We could separate main material with other types efficiently. Meanwhile, after washed by large amount of water, plastic materials will get more clean with this processing. Washing rollers equipped will help improve cleaning effect and pushing material forward to next step. In PET line, the PET flakes sink down will be discharge out with screw feeder from bottom.



Except the support frame and platform, All the material used in the tank body and rotating drums are all made of stainless steel

.

Varies models are supplied for different plastic application.Certainly, We could also design as per your special request





Applications and Function:



Plastic PP PE film flakes Recycling Washing Line



Our sink float washing tank can also be used for Floating plastics like PP PE HDPE LDPE.



Film or rigid flakes made from PP and PE plastic floats on the top while varies contaminants such as dirt ,rocks, metals and glass sink to the bottom which will collected via horizontal screw and  lifting screw conveyor.









Photos for reference :



Stainless steel Plastic Recycling Washing machine 0

Stainless steel Plastic Recycling Washing machine 1
