Product Details:
Payment & Shipping Terms:
|
| Name: | Single Screw Extruders | Application: | Sheet,Pipe,Profile,Plate,Filament |
|---|---|---|---|
| Screw Design: | Single | Plastic Processed: | PP PE HDPE LDPE PPR PS ABS PC ECT |
| Raw Material: | PVC | Usage: | PVC Pipe Making |
| Keyword: | Plastic Extrusion Machine | ||
| High Light: | SJ Single Screw Extruders,PC ECT Single Screw Extruders,PC SJ profile extrusion line |
||
SJ Series Single Screw Extruders Plastic Extrusion Machine
Description:
SJ Series Single Screw Extruders are mainly used to process PP, PE, PP-R,ABS and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation. This Single Screw Extruder has the advantage of simple production technological process, high output, stable quality and low cost.
Main advantage:
1.Suitable for various polyolefin materials: HDPE, PPR, PP,and ABS etc. SJ single screw extruder adopts advanced human-machine interface control system to realize the automatic control of the whole line.
2.Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process.
3.High-performance driving system; Wearable and easy to maintain.
Technical Parameters:
| Model | L/D | Output | Speed of Screw Rotationl | Power | Center Height |
| SJ-20 | 10-33 | 1-3kg/h | 20-120r/min | 1.5-3kw | 1000mm |
| SJ-25 | 10-33 | 3-5kg/h | 20-120r/min | 3-5kw | 1000mm |
| SJ-30 | 10-33 | 10-25kg/h | 20-120r/min | 3-5.5kw | 1000mm |
| SJ-45 | 10-33 | 10-35kg/h | 20-120r/min | 7.5-18.5kw | 1000mm |
| SJ-50 | 10-33 | 20-80kg/h | 20-120r/min | 22-37kw | 1000mm |
| SJ-65 | 10-33 | 80-150kg/h | 20-120r/min | 37-55kw | 1000mm |
| SJ-75 | 10-33 | 120-280kg/h | 20-120r/min | 55-90kw | 1000mm |
| SJ-90 | 10-33 | 150-450kg/h | 20-120r/min | 90-160kw | 1200mm |
| SJ-120 | 10-33 | 300-600kg/h | 20-120r/min | 160-260kw | 1200mm |
| SJ-150 | 10-33 | 450-700kg/h | 20-120r/min | 260-315kw |
1200mm |

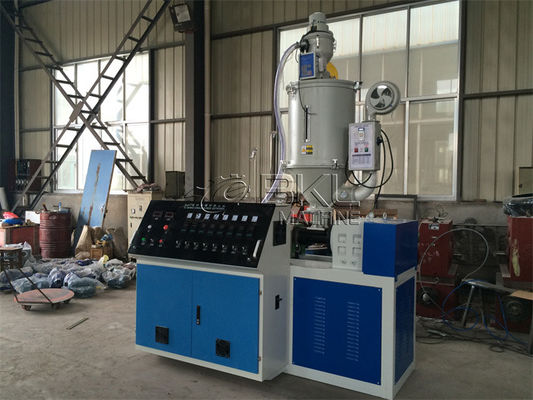

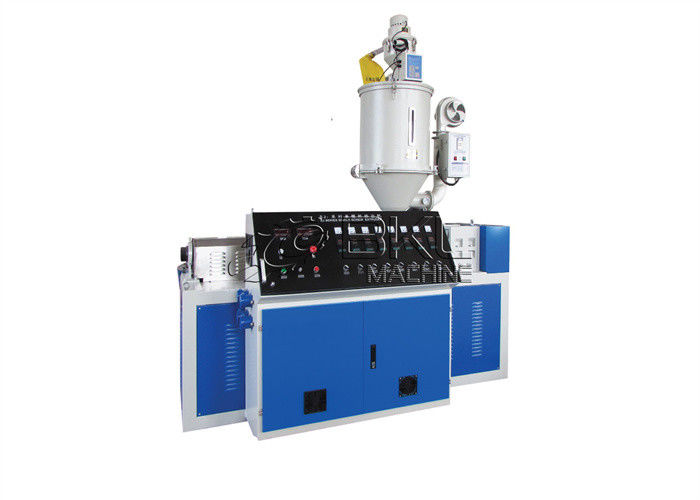

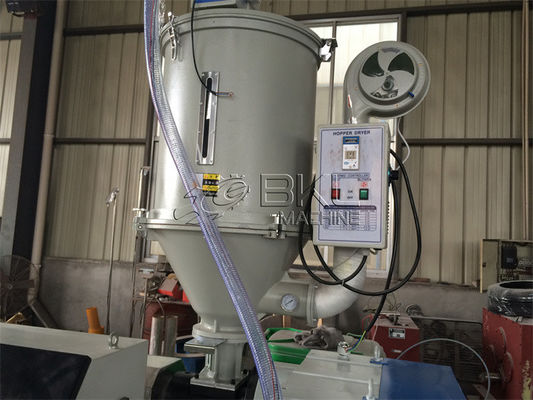

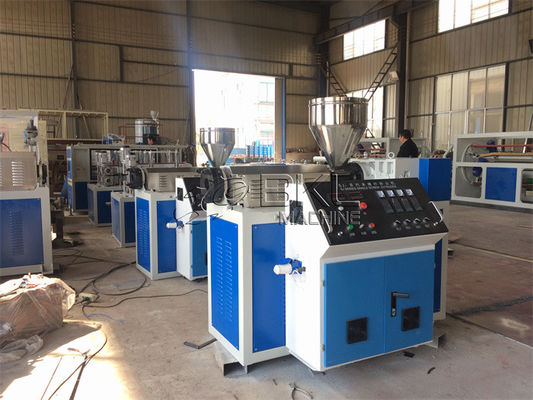

More Photos:
