Product Details:
Payment & Shipping Terms:
|
Name: | Film Agglomerator | Application: | Recycle Big Volume Plastic To Heavy Bubble Material |
---|---|---|---|
Funtion: | Compactor Film/Raffia/fiber/cloth To Granulas | Motor Power: | 110-132KW |
Fixed Knife: | 8 Pcs | Rotory Knife: | 4 Pcs |
Material Of Blades: | T10 | Caoacity: | 300-600kg/h Up To Material Types |
Plastic Types: | PP PE PET PS PVC Film Sheet Fiber Ropes Ect | Keyword: | Densifier |
High Light: | Agglomerator plastic granules making machine,Film plastic granules making machine,Film pvc granules making machine |
Agglomerator Plastic Machine Film Agglomerator Fiber Cloth Densifier
Description:
The BSL serial Film Agglomerator mainly used for cutting and recycling thermoplastic films and chemical fibers, such as PP/PE/LDPE/HDPE/PET/PVC/PS sheet/ film and so on.
It could turn waste thermoplastic thin film(thickness ≤2 mm)to granula shapes after processing. The application field could be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.
The Agglomerator Plastic Machine main function: Crushing and Compacting thin and flex material to more heavy bubble granulas which could be feed to pelletizing feeder with more higher capacity.
We supply plastic agglomerator machine price economic to all our customers.
Option parts:
Machine parameters:
Model | Volume(L) |
Effective Volume(L) |
Mainshaft Speed(rpm) |
Capacity (kg/hr) |
Heating Method |
Discharge Method |
BSL-100 | 100 | 75 | 800 | 80-100 |
By self friction |
Manually or Pneumatic |
BSL-200 | 200 | 150 | 800 | 150-200 | ||
BSL-300 | 300 | 225 | 800 | 250-300 | ||
BSL-500 | 500 | 375 | 750 | 300-400 | ||
BSL-800 | 800 | 600 | 750 | 500-600 | ||
Material of inner barrel: Stainless steel 304 |
Application Materials:
PE (HDPE LDPE)PP PET PVC PS
Material shapes: film, bag, (PE, PP) regrind,fiber,rope, cloth,silk, Woven ,Non-wonven,Packing materials
Material types: rolls, loose, bundled

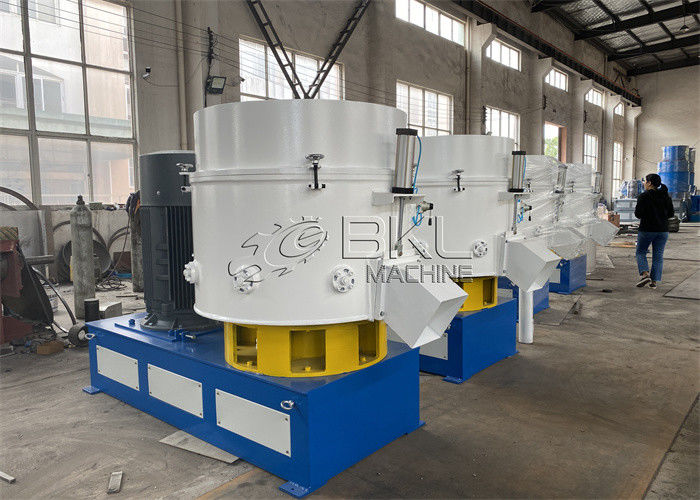

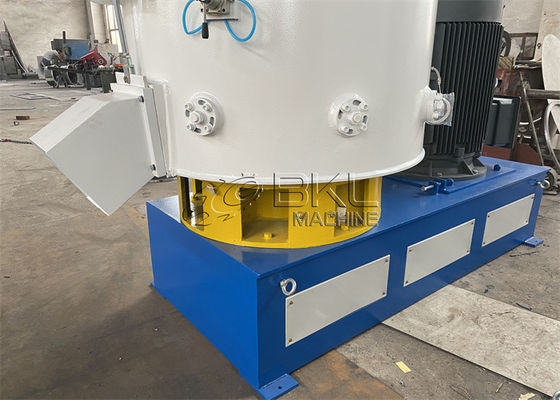

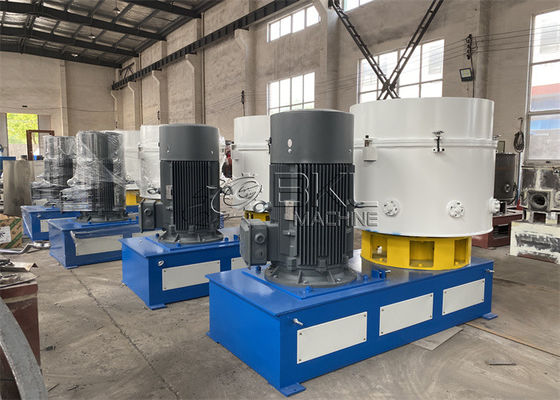

More photos of Agglomerator Plastic Machine :
