Waste Plastic Washing Machine in Plastic Film Washing Line
Plastic Film Washing Line Description
The Plastic Film Washing Line is designed to recover agricultural film and PPraffia bag / woven bag which contains a lot of sediment and dirt. The Waste plastic washing machine has high crushing efficiency, strong cleaning and drying ability. This plastic washing machine is mainly used for waste PP PE film, raffia bag, woven bag cleaning dehydration drying and then granulating production line.
The whole line includes :
Belt Conveyor: The materials go into the crusher by the crawler belt, which is moved by inside scroll wheel.
Crusher: Crush the material.
Screw Loader: Put the flakes into the Hot washer to clean.
Hot Washer: If the bottle is very dirty, like oil, sand, it must be use hot washer.
Screw Loader: Put the flakes into the High-speed Friction Washer to clean.
High-speed Friction Washer: After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
Floating Washer 1: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Floating Washer 2: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Dewatering: Rejection the water from the flakes, moisture content is less than 2%.
Drying Pipeline
Silo: Storage materials.
Electrical Control Cabinet
Working Flow of Plastic Film Washing Machine:
Belt conveyor → Crusher (with water) → High speed friction washing machine → Floating washing machine(Can be hot washer) → High speed friction washing machine → Floating washing machine → dewatering machine → drying pipeline system → Silo→control cabinet
Plastic Film Washing Machine Technical parameter:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |

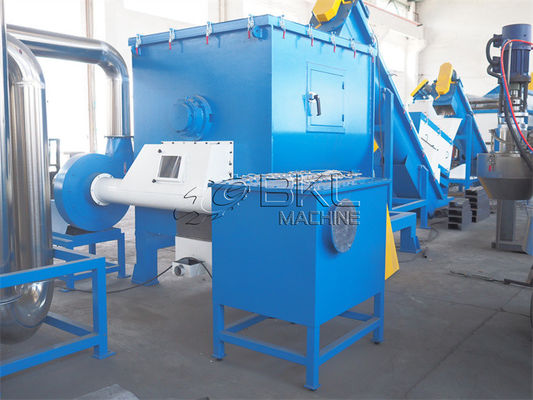

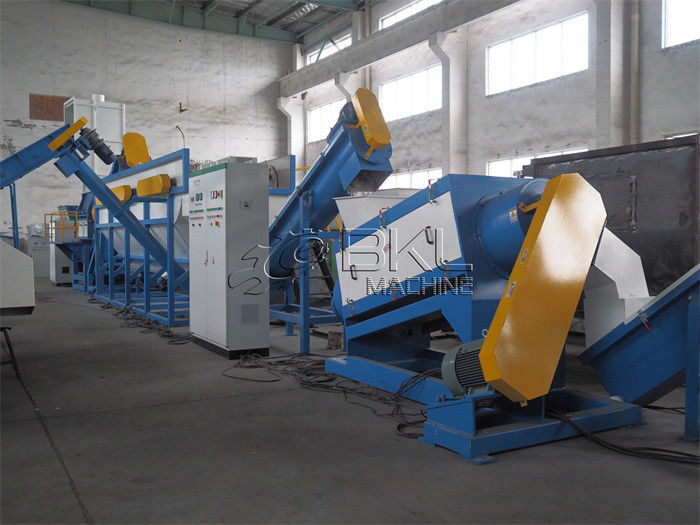

Detailed Photos
After this PP PE Plastic Film Washing Machine, We also offer the following recycling lines of PP PE plastic granulator pelletizing recycling machine, that can make the washed PP PE flakes into PP PE granules/pellets.
