| Product Name: | HDPE Washing Line | Automatic Grade: | Automatic |
|---|---|---|---|
| Material Type: | HDPE PP PE | Processing Steps: | Crushing-Washing-Drying |
| Input Capacity: | 500-600kg/h | Application: | Bottles, Profiles,sheet,pipe Wastes |
| Final Moisture: | 5-10% | Quality Control: | Runing Test Before Delivery |
| Washing Machine Main Parts: | Stainless Steel 304 | Keyword: | Plastic Washing And Drying Machine |
| High Light: | 500kg/h plastic scrap washing machine,600kg/h plastic scrap washing machine,Automatic pp pe film washing system |
||
Plastic Waste Washing Machine Of PP PE Plastic Scrap Washing Machine
PP PE Plastic Scrap Washing Machine Description
PP PE Plastic Scrap Washing Machine is widely used to washing recycling the waste HDPE PP plastic rigid plastic. Such as plastic milk bottle, shampoo bottle, medicine bottle, PE drinking bottle, plastic basin, plastic bucket, etc. This recycling machine can crushing washing and drying the dirty rigid plastic into clean plastic flakes.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bottles. This HDPE HDPE plastic bottle recycling machine could layout as "L", “S” or "U" shape according different workshop.
Working Flow of PP PE Plastic Scrap Washing Machine:
Belt conveyor → Crusher (with water) → High speed friction washing machine → Hot water floating washing machine → Screw conveyor → Horizontal high speed friction washing machine → Cold water floating washing machine → Screw conveyor → drying system → Storage hopper→control cabinet
Option device:
Bale Opener
Metal detector
Hot washer
Zig-zag Air classifier
Plastic Waste Washing Machine Technical parameter:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Advantage:
Very low labor request.
Stable running.
CE certification, ISO9001 certification, SGS certification
Configuration based on client requirement and material, and give reasonable suggest.

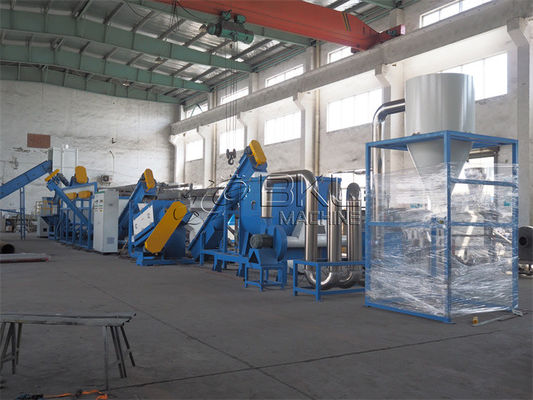

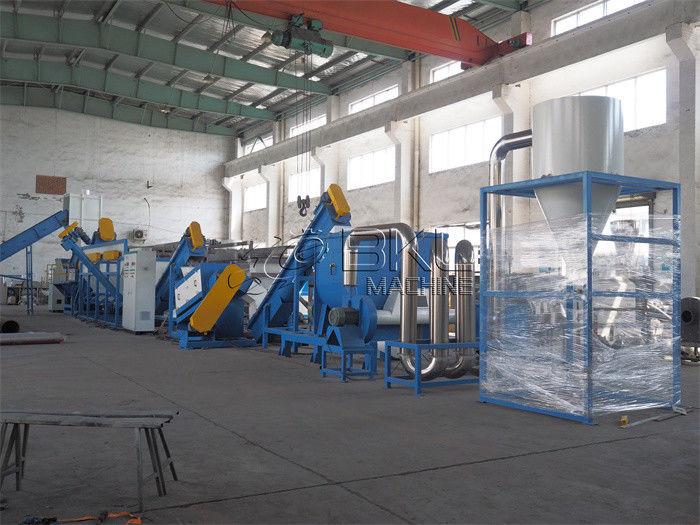

Detailed Photos
After this PP HDPE plastic bottle recycling machine, We also offer the following recycling lines of PP HDPE plastic granulator pelletizing recycling machine, that can make the washed PP HDPE flakes into PP HDPE granules/pellets.
