Product Details:
Payment & Shipping Terms:
|
| Machine Name: | Film Recycling Granulating Machine Line | Screw Diameter: | 130 |
|---|---|---|---|
| L / D: | 28 | Plastic Processed: | PE,PP,HDPE,LDPE Film |
| Capcacity: | 400 Kg / H | Application: | Granules |
| Automatic Grade: | Automatic | Dimension(l*w*h): | BASED |
| High Light: | 400kg h Plastic Granulating Line,LDPE Plastic Granulating Line,LDPE plastic bag recycling machine |
||
PE Film And Bags Recycling Machine In Plastic Granulating Line
Description:
Film Recycling Granulating Machine Line with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, plastic handbag etc.
After processing techniques such as compression, heating, melt, pelletizing, cooling, drying etc., the final products are plastic pellets, granules, which can be to produce garbage bags, drainage pipes, plastic board etc.
Single stage extruder is normally designed for good cleanliness and low moisture material,such as leftover material from the film/bag production line, printed films ect.
| No. | Machine | Qty. |
| 1 | Belt conveyer | 1 set |
| Option | Metal detectors | 1set |
| 2 | Agglomerator | 1 set |
| Option | 130/28 single screw extruder | 1 set |
| Option | Screen changer | 1 set |
| Option | Traction device | 1 set |
| Option | Frequency inverter | 1 set |
| 3 | ML130/10 single screw extruder | 1 set |
| 4 |
Screen changer |
1 set |
| 5 | Water ring cutter-patent technology | 1 set |
| 6 | Centrifugal dryer water tank | 1 set |
| 7 | Vibrator | 1 set |
| 8 | Packing system | 1 set |
| 9 | Control cabinet | 1set |
Components:

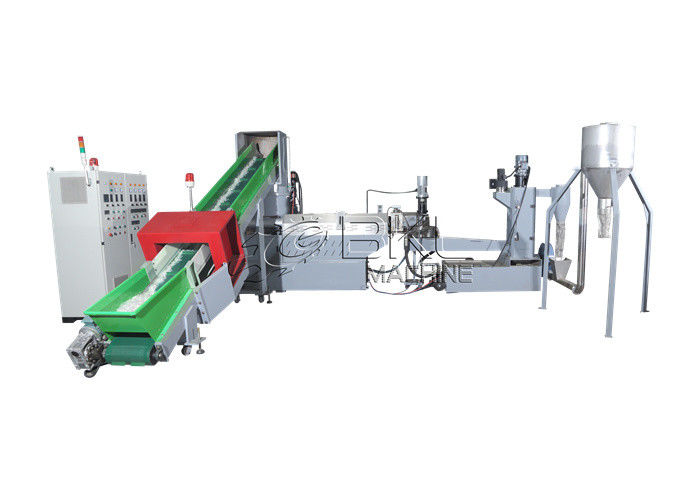

Film Recycling Granulating Machine Line mainly consists of Belt conveyor, Cutter Compactor, Single Screw Extruder, Degassing, Hydraulic Screen Changer, Die Mould, Water ring Pelletizing or Spaghetti Pelletizing, Centrifugal Dewatering or Cooling Water Tank,Vibration machine,Air blowing and Silo, Electric Control Panel.
Optional devices:
Metal detector
Roll hualing off deice
Masterbatch / Additives feeder
| Warehouse/Workshop |
Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M×M×M): 18 (Length)×4.5 (width) ×4 (Height) |
| Temperature & Humidity | ≤40℃, 95% |
| Power supply |
Supply voltage: 3×380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ |
| Lubrication oil: | Sinopec, Exxon mobile |
