Product Details:
Payment & Shipping Terms:
|
| Machine Name: | Plastic Granulating Line | Screw Diameter: | 160 |
|---|---|---|---|
| L / D: | 28 | Plastic Processed: | PE,PP,HDPE,LDPE Film |
| Capcacity: | 500-600 Kg / H | Application: | Granules |
| Automatic Grade: | Automatic | Dimension(l*w*h): | BASED |
| Keyword: | Advanced Recycling PE Plastic Bags | ||
| High Light: | 800kg h plastic bag recycling machine,ML160 plastic bag recycling machine,ML160 polythene bag recycling machine |
||

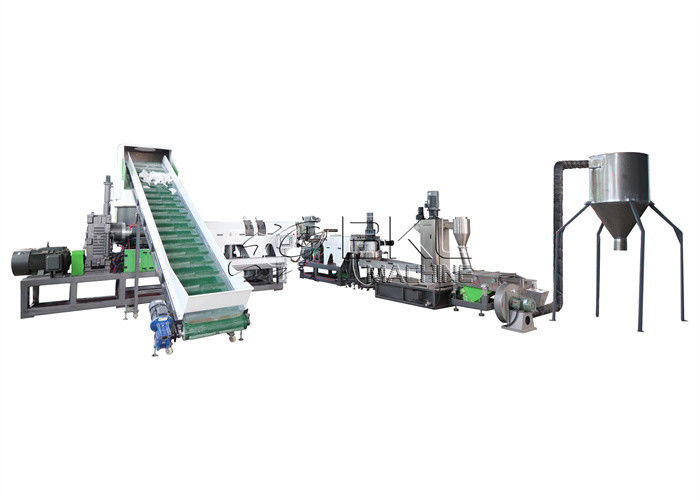

Advanced Recycling PE Plastic Bags Plastic Granulating Line
Description:
PE Plastic Bags Plastic Granulating Line with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, plastic handbag etc.
After processing techniques such as compression, heating, melt, pelletizing, cooling, drying etc., the final products are plastic pellets, granules, which can be to produce garbage bags, drainage pipes, plastic board etc.
Components:
| No. | Machine | Qty. |
| 1 | Belt conveyer | 1 set |
| Option | Metal detectors | 1set |
| 2 | Agglomerator | 1 set |
| 3 | ML160/30 single screw extruder | 1 set |
| Option | Traction device | 1 set |
| Option | Frequency inverter | 1 set |
| 4 | Screen Changer | 1 set |
| 5 | ML160/10 single screw extruder | 1 set |
| 6 |
Screen changer |
1 set |
| 7 | Water ring cutter system | 1 set |
| 8 | Centrifugal dryer water tank | 1 set |
| 9 | Vibrator | 1 set |
| 10 | Packing system | 1 set |
| 11 | Control cabinet | 1set |
Optional devices:
Metal detector
Roll hualing off deice
Masterbatch / Additives feeder
Advantage:
Very low labor request.
Stable running.
Automatic constant temperature control.
CE certification
Configuration based on client requirement and material, and give reasonable suggest.

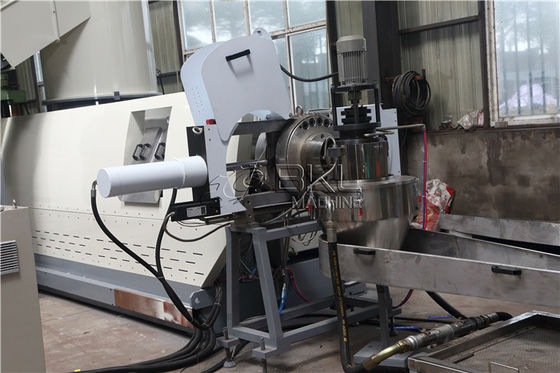

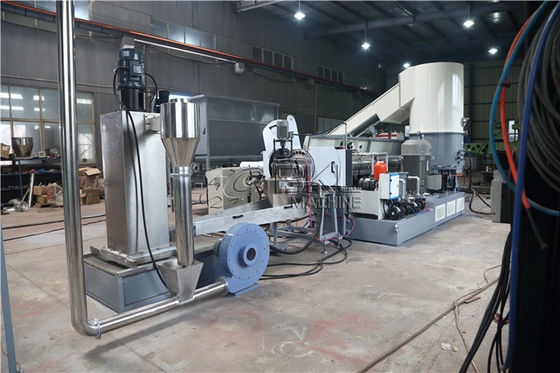

Photos of plastic pelletizing recycling machine
Belt conveyor (can equip the metal detector)
High quality gearbox
Compactor barrel (agglomerator)
Efficient extruder
Non-stop hydraulic screen filter changer
Watering cutting machine
