| Product Name: | PP PE Film Washing Line | Automatic Grade: | Automatic |
|---|---|---|---|
| Material Type: | PP PE HDPE LDPE LLDPE | Processing Steps: | Crushing-Washing-Drying |
| Input Capacity: | 100-2000kg/h | Application: | Film,bottles,fiber,profile Wastes |
| Final Moisture: | 5-10% | Quality Control: | Runing Test Before Delivery |
| Washing Machine Main Parts: | Stainless Steel | ||
| High Light: | 1000Kg/H Plastic Recycling Lines,ss304 Plastic Recycling Lines,1000Kg/H PE Film Washing Line |
||

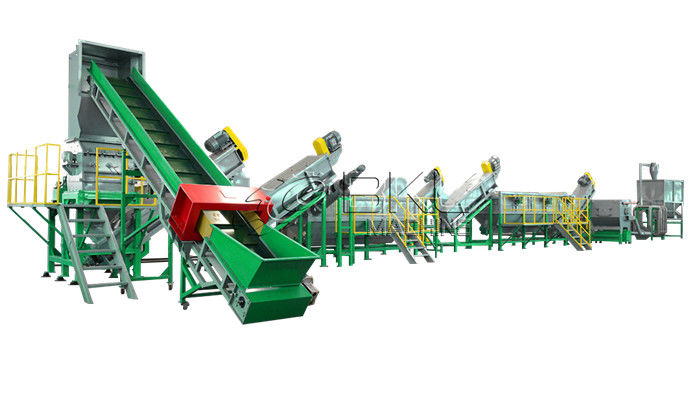

200-1000 Kg / H PP PE Film Washing Line Plastic Recycling Lines
Description
PE PP film washing line could roughly divided to PP PE film plastic recycling lines and PP PE rigid plastics recycling lines.
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution. This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products
Due to the soft material has a problem is very loose, and has much water content inside. Our company has carried out a lot of research in response to this series of problems. To this end, it has been found that the use of an extruder pelletizer after crushing and cleaning will have a better effect and a high energy utilization rate. The material can be directly used for pelletizing or other extrusion applications.
Product features and details:
Features:
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
Details:
| 1 | Save labor, feeding waste plastic by belt conveyor. |
| 2 | Machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water, which can wash plastic preliminary and improve crushing efficiency. |
| 4 | High speed friction washer can separate dirty out by the high rotating speed of the screw. |
| 5 | Floating washer tank separate different plastic by density, the plastic with a density less than water float to the water surface, and the plastic with a density bigger than water sink to the bottom of the tank. |
| 6 | Screw conveyor is used to convey plastic pieces. |
| 7 | Hot washer is used to separate the oil from the plastic. |
| 8 | Dryer, we have centrifugal dewatering machine and squeeze dryer for you choose. |
Technical parameter of PP PE film washing line
For soft PP / PE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
Detailed Photos
