Product Details:
Payment & Shipping Terms:
|
Machine Name: | Plastic Pelletizing Recycling Machine | Screw Diameter: | 130mm |
---|---|---|---|
L / D: | 28,10 | Plastic Processed: | PE,PP,HDPE,LDPE Film |
Output: | 400 - 550 Kg / H | Compactor Motor: | 90KW |
Main Motor: | 110-132KW | Baby Extruder: | 45KW |
Keyword: | PE Film Recycling | ||
High Light: | LDPE film Plastic Recycling Lines,90KW Plastic Recycling Lines,LDPE film Plastic Pelletizing Recycling Machine |
PE Film Recycling Plastic Pelletizing Recycling Machine
Description:
PE Film Recycling Plastic Pelletizing Recycling Machine is equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.
We have different output for PP Raffia bag Plastic Pelletizing Line , 60-100kg/h,100-150kg/h,150-250kg/h,250-350kg/h.400-550kg/h,600-750kg/h,800-1000kg/h.
Double stage extruder is ideal choice for recycled film material with some moisture percent,such as washed or heavy printed PE films/ PP raffia/ woven ect.
Working Flow of PE Film Recycling Plastic Pelletizing Recycling Machine:
Belt conveyor → Cutter compactor(agglomerator) → Main extruder → Hydraulic screen filter changer→ Second stage extruder → Hydraulic screen filter changer→ Water ring cutting pelletizing → Vibration machine → Dewatering machine → Blower → Storage hopper → Electric control panel
Technical parameters for PE Film Recycling Plastic Pelletizing Recycling Machine:
Seires | Model | Screw Diameter(mm) | L/D | Capacity (kg/h) |
ML | 85-85 | 85 | 33~36:1 +10:1 | 150~250 |
100-100 | 100 | 33~36:1 +10:1 | 250-350 | |
130-130 | 130 | 33~36:1 +10:1 | 450-600 | |
160-160 | 160 | 33~36:1 +10:1 | 650-800 | |
180-200 | 180,200 | 33~36:1 +10:1 | 800-1100 |
Advantage:

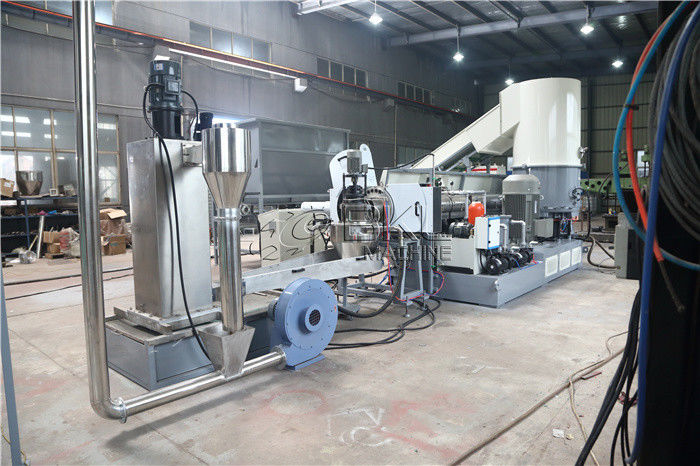

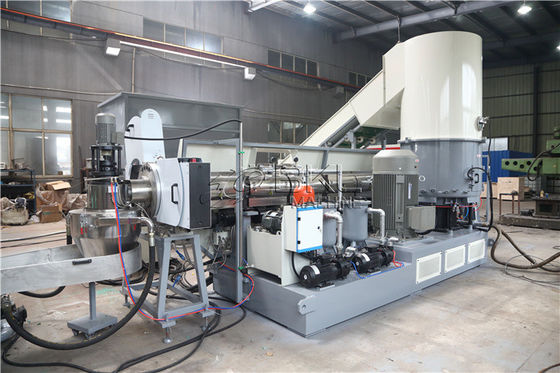

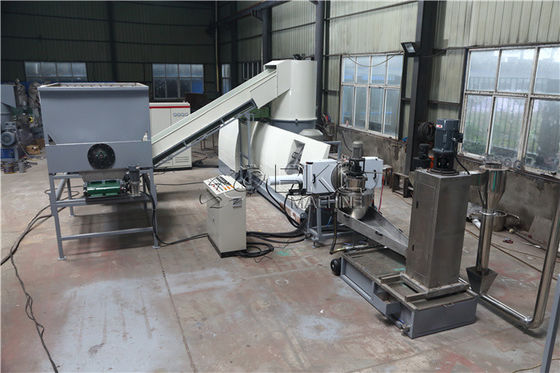

Photos for recycled PE Film Recycling Plastic Pelletizing Recycling Machine:
