PP PE PVC Plastic Mixing Machine Heating 200l Volume

Name: PP PE PVC Plastic Mixing Machine Heating 200l Volume
Brand: BEAKELAND
SKU: SRL-Z200/500
Price: 1.00 USD
Availability: InStock
Rating: 5 (163 reviews)

Large Image : PP PE PVC Plastic Mixing Machine Heating 200l Volume

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	BEAKELAND
Certification:	CE
Model Number:	SRL-Z200/500

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Delivery Time:	30-50 WORKING DAYS
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets/Year

Contact Now

Detailed Product Description

Name:	Plastic Mixer Machine	Application:	Plastic Raw Material Mixing
Total Volume:	200 / 500L	Typical Mixing Type:	PVC Power Mixing
Motor Power:	30/42/11	Mixing Type:	High Speed Mixing-Cooling Mixing
Automatic Grade:	Automatic	Mixing Time:	8-12 Min
Material For Internal:	Stainless Steel	Keyword:	Heating Mixer Machine
High Light:	PP PE PVC Plastic Mixing Machine , 200l Plastic Mixing Machine , 200l heating mixer machine

PP PE PVC Heating Mixer Machine Plastic Mixer Machine

Description:

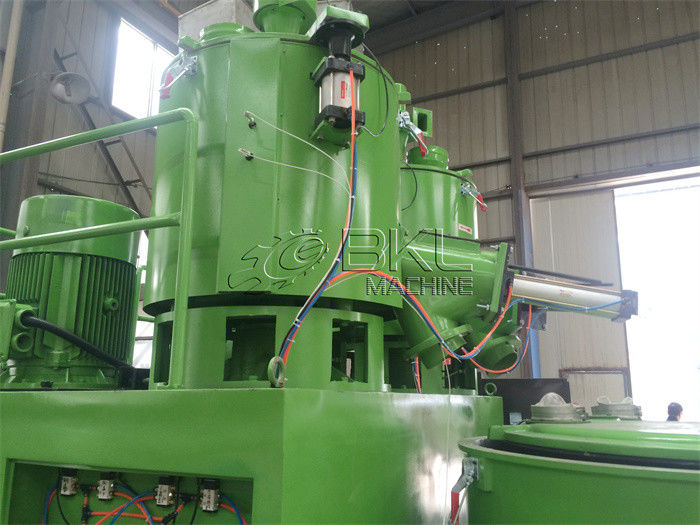

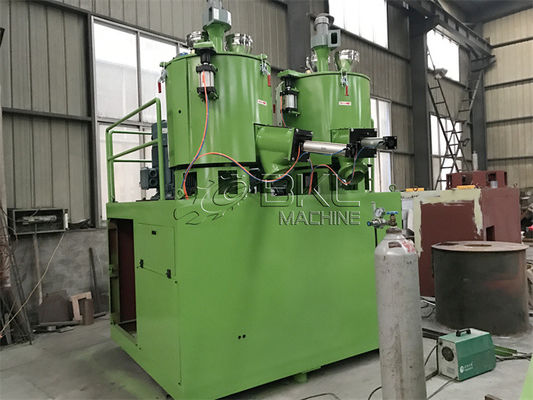

SRL-Z series Plastic mixer machine are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer machine is fed into cooling mixer for cooling to eliminate gas and avoid burning.

Working principle :

The motor directly drives the main shaft to rotate through the belt wheel and the reduction box. The rotating blades with special shapes installed on the main shaft rotate accordingly. Under the action of centrifugal force, the material rises along the tapered wall of the fixed mixing tank and is in a state of reversing motion. , Forming a kind of swirling motion, for materials of different densities, it is easy to mix uniformly in a short time, and the mixing efficiency is more than twice that of ordinary mixers.

Mixed material Application:

Plastic plates,pipe,special-shaped profiles and degradation plastics.

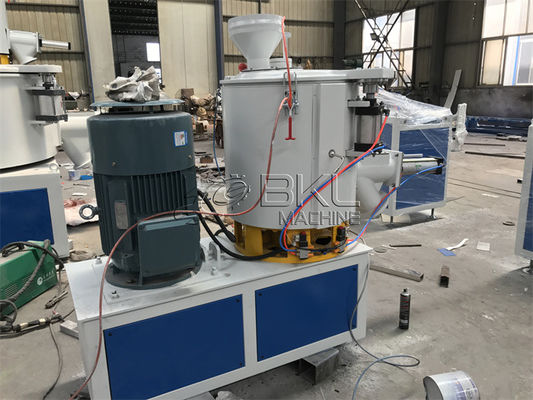

Vertical type Plastic mixer machine:

Model	Total volume	Available capacity	Motor power	Shaft speed	Heating method
SHR-5A	5L	3L	1.1Kw	1400rpm	Self friction/electric
SHR-10A	10L	7L	3Kw	2000rpm
SHR-25A	25L	20L	5.5Kw	1440rpm
SHR-50A	50L	35L	7/11Kw	750/1500rpm
SHR-100A	100L	75L	14/22Kw	650/1300rpm
SHR-200A	200L	150L	30/42Kw	475/950rpm
SHR-300A	300L	225L	40/55Kw	475/950rpm
SHR-500A	500L	375L	47/67Kw	430/860rpm
SHR-800A	800L	600L	60/90Kw	370/740rpm

Tag:

Contact Person: Bonnie Wang

Tel: +86 18852442182
