Product Details:
Payment & Shipping Terms:
|
| Name: | PVC Mixer Machine | Application: | Plastic Raw Material Mixing |
|---|---|---|---|
| Total Volume: | 200 / 500L | Typical Mixing Type: | PVC Power Mixing |
| Motor Power: | 30/42/11 | Mixing Type: | High Speed Mixing-Cooling Mixing |
| Automatic Grade: | Automatic | Mixing Time: | 8-12 Min |
| Material For Internal: | Stainless Steel | Keyword: | Cooling Mixer |
| High Light: | 500L plastic raw material mixing machine,plastic raw material mixing machine,high speed mixer for pvc compounding |
||
Application ＆ Features:

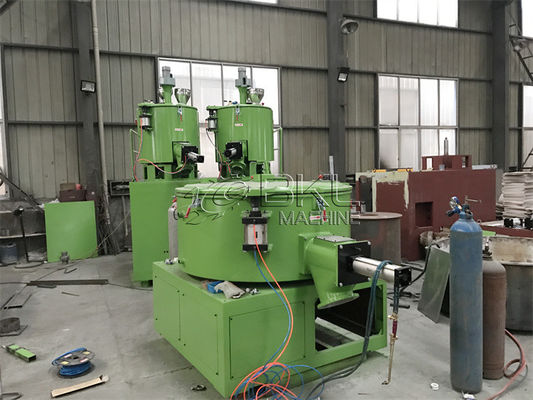

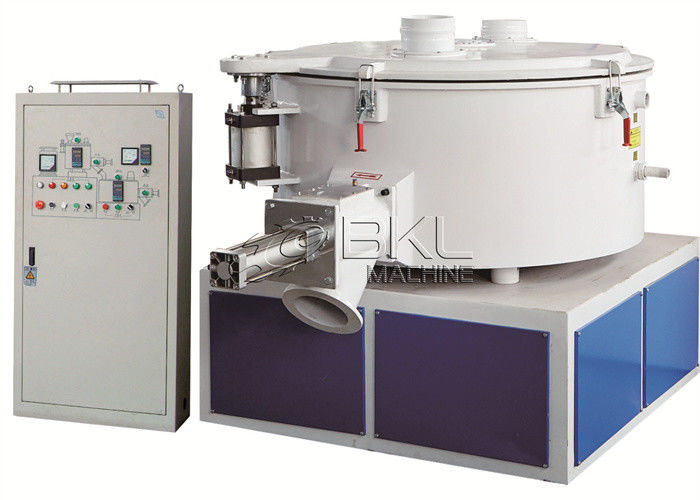

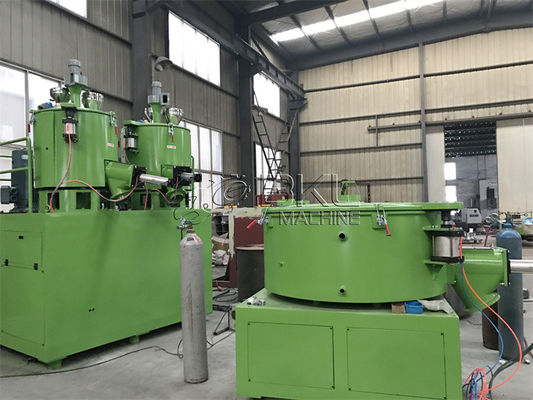

SRL-Z series cooling mixer combined with SHR series high speed mixer,It is widely used in process of mixing,drying and colouring of various plastics.
It can cool materials fast,to get rid of special gases remaining in heat mixed materials and is beneficial to the materials storage,transfer and afterprocess.
It has features of advanced design,easy operation,safe and reliable property,high efficiency,low energy consumption,low noise and corroision resistance.
Low speed SRL-Z series cooling mixer unit which offers high automatic good mixing effective,complete ,function,compact structure,and perfect appearance.The unit is widely used in mixing ,coloring,drying various plastic .
Long service time,due ti all barrel inside is stainless steel.
Blade materials is high quality stainless steel,which pasted the dynamaic and static test.
| Project/Model | SRL-Z100 | SRL-Z200 | SRL-Z300 | SRL-Z500 | SRL-Z800 |
| Total volume(L) | 100 | 200 | 300 | 500 | 800 |
| Effective volume(mm) | 65 | 150 | 200 | 330 | 600 |
| Motor power(kw) | 7.5 | 11 | 11 | 15 | 22 |
| weight(kg) | 1200 | 1800 | 1900 | 3500 | 5000 |
