Product Details:
Payment & Shipping Terms:
|
| Usage: | Waste Plastic Crusher | Motor Power: | 55-75KW |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Type: | Plastic Crusher Machine |
| Machine Color: | Specified By Customer | Product Name: | Plastic Crusher Machine |
| Application: | PET Bottle/PP/PE/PVC Film Sheet Profile | Blades Material: | 9CrSi/D2/SKD-11 |
| High Light: | 75KW Plastic Waste Recycling Machine,SKD11 Plastic Waste Recycling Machine,SKD11 Plastic Bottle Crushing Machine |
||
Plastic Waste Recycling Machine Waste Plastic Crusher Machine
Description:
Waste Plastic Crusher Machine is an ideal second time size reduction machine after shredding processing. No matter what kind of granulators you choose,The key parts are combined with heavy duty rotor with rotor blades and the stationary blades which formed the cutting system inside the chamber.The feeded material will be cut continuously until the particle size is suitable for go through the screen filter.
Applications :
PP PE PET ABS PVC PS PA PC ect.
Plastic lumps, sheets, films, pipes, bottles, sprues, runners, rejects, etc.
Main technical parameter:
| ITEM | UNIT | HVC500/800 | HVC600/1000 | HVC600/1200 | HVC700/1200 | HVC800/1200 |
| Rotor Diameter | mm | φ500 | Φ600 | Φ600 | Φ700 | Φ800 |
| Rotor Width | mm | 800 | 1000 | 1200 | 1200 | 1200 |
| Rotor Knives | pcs | 5x2 | 5x2 | 5x2 | 5x2/7x2 | 5x2/7x2 |
| Stator Knives | pcs | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
| Cutting Chamber Dimension | mm | 500x800 | 600x1000 | 600x1180 | 700x1180 | 800x1180 |
| Motor Power | kw | 37-55 | 55~75 | 90 | 110 | 132-160 |
| Capacity | Ton/hr | 0.3-0.5 | 0.6-1 | 1-1.5 | 1.5-2 | 2-2.5 |
| Open hopper | By electric or hydraulic control | By hydraulic control | ||||
| Open screen cradle | By manual/hydraulic | By hydraulic | ||||
Features:
Strong welded construction from heavy gauge steel plate.
Flat or Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings
Precision machined rotors (Forward set V-Rotor as standard).
Manual, electric and hydraulic chamber opening mechanisms for quick access for maintenance and machine cleaning.
Replaceable wear plates at either end of the rotor shaft.
Stand Alone Electrical Control Panel - using quality components and Siemens PLC’s.
Tested, Approved and Certified to the applicable CE safety standards.

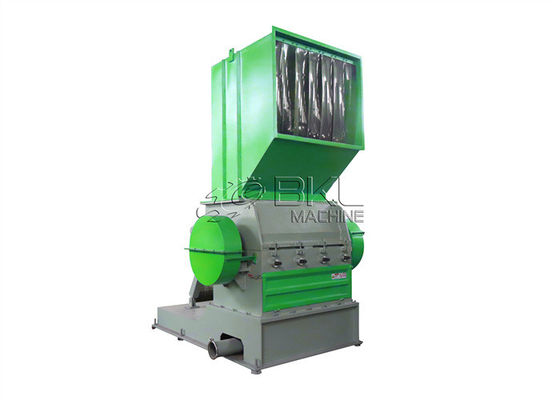

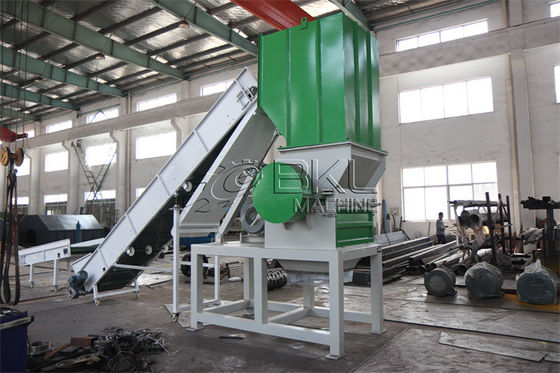

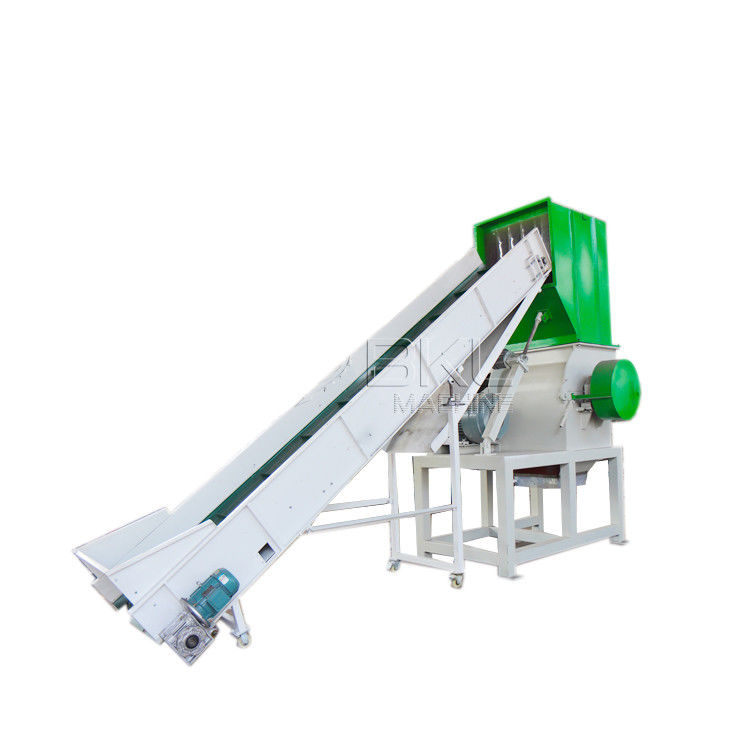

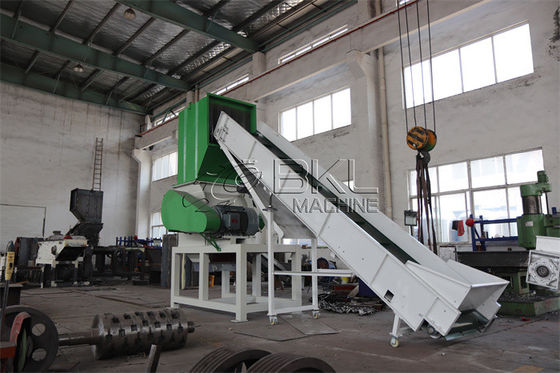

Plastic Crusher Machine Photos:
