Product Details:
Payment & Shipping Terms:
|
| Usage: | Plastic Granulator | Motor Power: | 90-110KW |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Type: | Plastic Crusher Machine |
| Machine Color: | Specified By Customer | Product Name: | Plastic Crusher Machine |
| Application: | PET Bottle/PP/PE/PVC Film Sheet Profile | Blades Material: | 9CrSi/D2/SKD-11 |
| Keyword: | Plastic Granulator Machine | ||
| High Light: | 110KW plastic granulator machine,9CrSi plastic granulator machine,9CrSi plastic recycling granulator machine |
||
Strong Plastic Granulator Machine Plastic Crusher Machine
Description:
Waste Plastic Granulator is an essential size reduction machine in plastic recycling industry. The specially designed granulators are extremely durable and unique which could cut varies plastics into small uniform flakes or regrinds.
No matter what kind of granulators you choose,The key parts are combined with heavy duty rotor with rotor blades and the stationary blades which formed the cutting system inside the chamber.The feeded material will be cut continuously until the particle size is suitable for go through the screen filter.
The Plastic Granulators could use independent or use in complete recycling solution including the most popular PP PE film washing line , PET bottle washing line ect.
Applications :
PP PE PET ABS PVC PS PA PC ect.
Plastic lumps, sheets, films, pipes, bottles, sprues, runners, rejects, etc.
Main technical parameter:
| ITEM | UNIT | HVC500/800 | HVC600/1000 | HVC600/1200 | HVC700/1200 | HVC800/1200 |
| Rotor Diameter | mm | φ500 | Φ600 | Φ600 | Φ700 | Φ800 |
| Rotor Width | mm | 800 | 1000 | 1200 | 1200 | 1200 |
| Rotor Knives | pcs | 5x2 | 5x2 | 5x2 | 5x2/7x2 | 5x2/7x2 |
| Stator Knives | pcs | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
| Cutting Chamber Dimension | mm | 500x800 | 600x1000 | 600x1180 | 700x1180 | 800x1180 |
| Motor Power | kw | 37-55 | 55~75 | 90 | 110 | 132-160 |
| Capacity | Ton/hr | 0.3-0.5 | 0.6-1 | 1-1.5 | 1.5-2 | 2-2.5 |
| Open hopper | By electric or hydraulic control | By hydraulic control | ||||
| Open screen cradle | By manual/hydraulic | By hydraulic | ||||
Features:
Strong welded construction from heavy gauge steel plate.
Flat or Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings
Precision machined rotors (Forward set V-Rotor as standard).
Manual, electric and hydraulic chamber opening mechanisms for quick access for maintenance and machine cleaning.
Replaceable wear plates at either end of the rotor shaft.
Stand Alone Electrical Control Panel - using quality components and Siemens PLC’s.
Tested, Approved and Certified to the applicable CE safety standards.

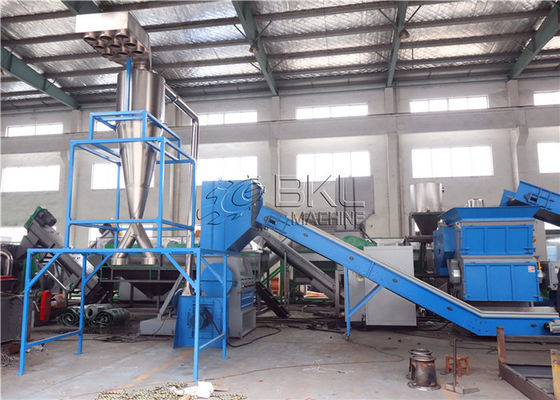

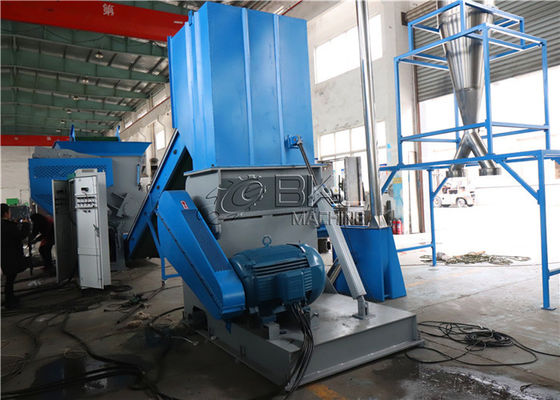

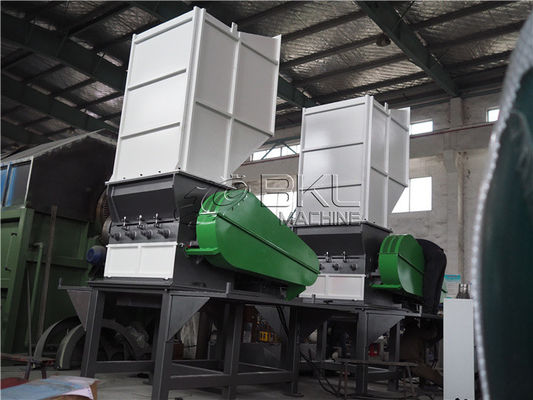

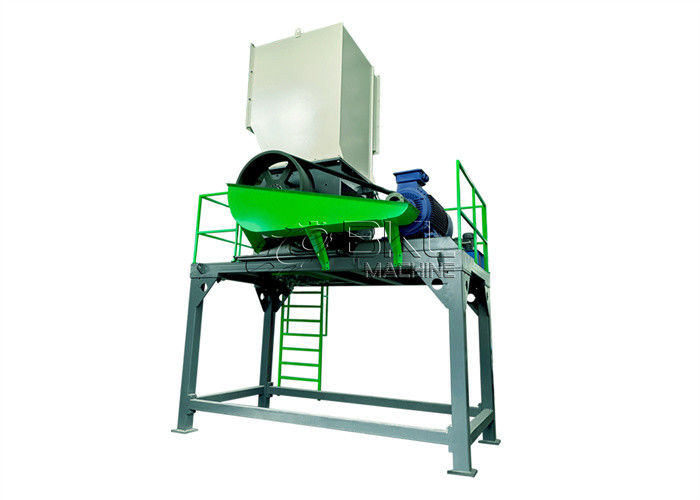

Plastic Granulator Photos:
