Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plastic Bottle Crushing Machine | Plastic Type: | HDPE PET PP Bottles Cans Cabinet Drum Ect. |
|---|---|---|---|
| Application: | PET HDPE PP Bottle Recycling Lines | Usage: | To Crush Material Into Small Sizes |
| Shaft Blades: | V-cut Or C-cut Technology | Suitable For: | Wet Cutting With Water |
| Motor Power: | 45KW | Capacity: | 500kg/h For HDPE Bottles |
| Keyword: | Big Crusher Machine | ||
| Highlight: | HVC 500 Plastic Crusher Machine,HDPE PET Plastic Crusher Machine,HDPE PET Big Crusher Machine |
||

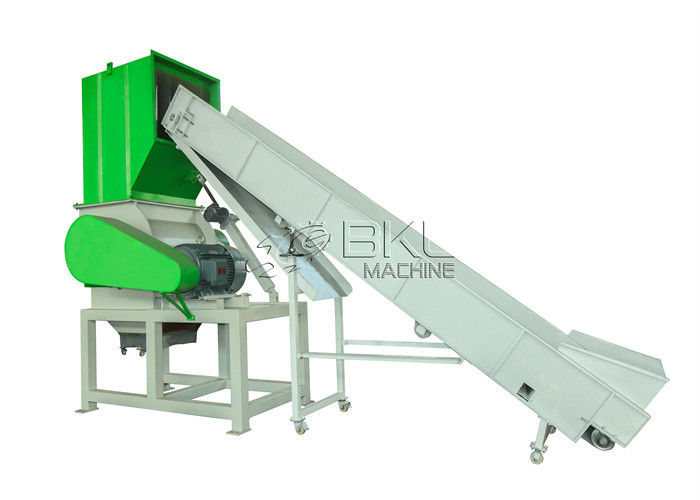

High Efficiency Big Crusher Machine Plastic Bottle Crushing Machine
Description:
The HVC series Plastic Bottle Crushing Machine sometimes referred to as a “crusher”, cuts whole PET plastic bottles into small, uniform pieces, or more popularly known as PET flakes.
Within our PET bottle recycling line, a wet granulator is actually used where an added waterline is implemented to continuously spray water into the cutting chamber. This feature has two important uses:
1.The PET flakes are partially cleaned within the wet granulator.
2.The water acts as a lubricate lowering friction and heat within the cutting chamber. By adding water to the cutting chamber, we can decrease the frequency of knife sharpening by two to three times.
Applications :
PP PE PET ABS PVC PS PA PC ect.
Main technical parameter:
| ITEM | UNIT | HVC500/800 | HVC600/1000 | HVC600/1200 | HVC700/1200 | HVC800/1200 |
| Rotor Diameter | mm | φ500 | Φ600 | Φ600 | Φ700 | Φ800 |
| Rotor Width | mm | 800 | 1000 | 1200 | 1200 | 1200 |
| Rotor Knives | pcs | 5x2 | 5x2 | 5x2 | 5x2/7x2 | 5x2/7x2 |
| Stator Knives | pcs | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
| Cutting Chamber Dimension | mm | 500x800 | 600x1000 | 600x1180 | 700x1180 | 800x1180 |
| Motor Power | kw | 37-55 | 55~75 | 90 | 110 | 132-160 |
| Capacity | Ton/hr | 0.3-0.5 | 0.6-1 | 1-1.5 | 1.5-2 | 2-2.5 |
| Open hopper | By electric or hydraulic control | By hydraulic control | ||||
| Open screen cradle | By manual/hydraulic | By hydraulic | ||||
Features:

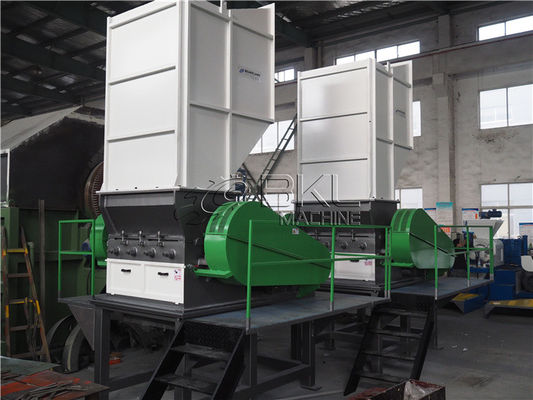

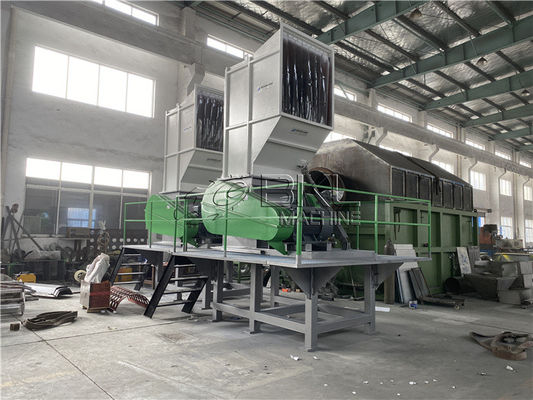

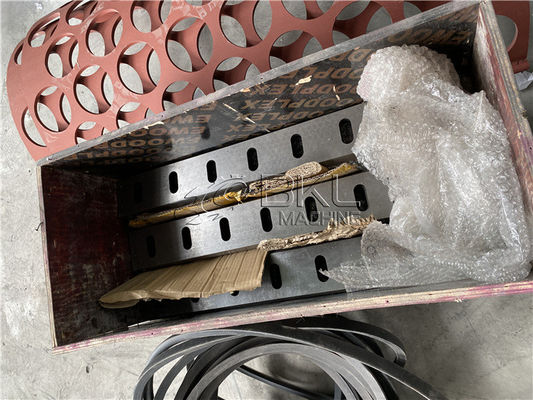

More photos:
