Product Details:
Payment & Shipping Terms:
|
| Name: | Film Recycling Shredder Machine | Motor Power: | 45/55KW |
|---|---|---|---|
| Capacity: | 500-800kg/h | Condition: | NEW |
| Shaft Design: | Single Shaft | Dimension(l*w*h): | 2300*2300*2250 |
| Usage: | Plastic Shredding Recycling | Blades Material: | SKD11 Or DC53 |
| High Light: | Cpp plastic film shredder,Bopp plastic film shredder,Bopp Recycling Shredder Machine |
||
Pe Pp Cpp Opp Bopp Pet Film Recycling Shredder Machine
Brief info:
| Type: | Heavy type Swing arm pusher Single shaft shredder |
| Model No.: | YPS 850,YPS1050,YPS1250,YPS1450,YPS2000,YPX1500,YPX2000 |
| Application raw material: | PP PE(HD,LD,LLD) PS ABS PVC PA PS ect. |
| Raw material shape: | Kinds of hard plastics like Pipes,lumps,blocks,film in bales |
| Core Components | the motor, Reducer, rotating knife shaft, imported knife, fixed knife rack, base cabinet, hydraulic cylinders, pumps, cylinders, ect |
| Structure: | Top Feed |
| Knife Classification: | Claw Knife shredder |
| Knife Roller: | Solid Knife Roller |
| Certification: | CE |
| Export Markets: | Global |
| Packing: | Export Standard Package |
| Origin factory location: | Zhangjigang City, Jiangsu Province, China. |
| HS Code: | 84778000 |
Description:

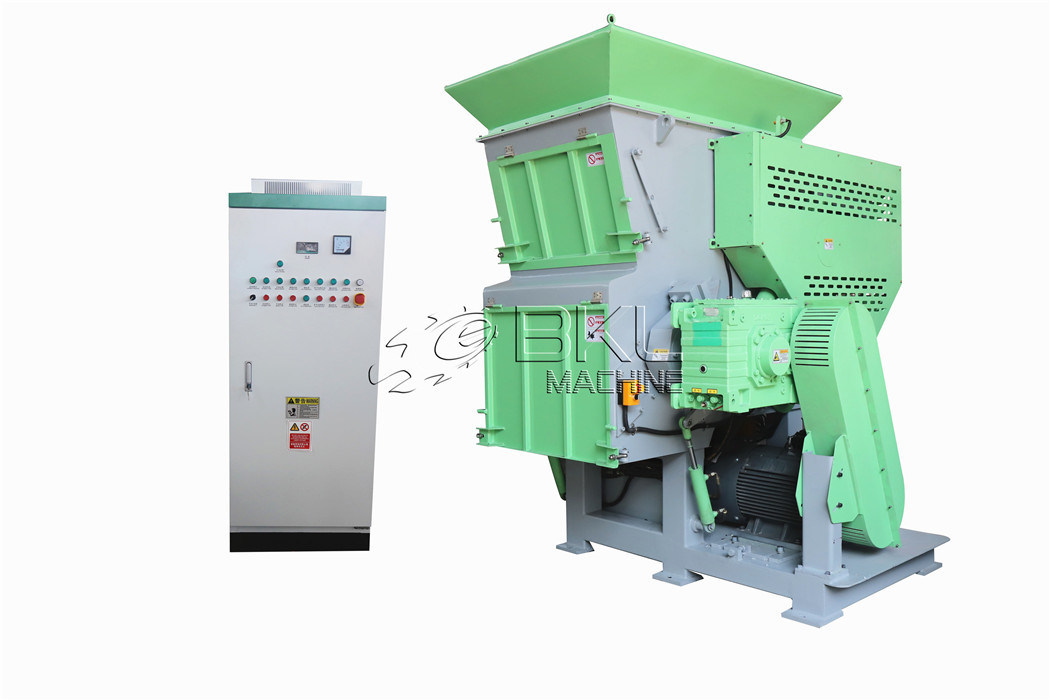

Pe Pp Cpp Opp Bopp Pet Film Recycling Shredder Machine
YPS/YPG series Single Shaft shredders are a kind of heavy duty size reduction machines which are capable for shredding a large range of materials such as plastics, woods,textiles,tires,cardboard,packed fibers,film in rolls ect. These models machines are specially designed for varies thick material like plastic blocks,lumps,polymer pipes, household plastics ect.
Application:
Plastic lump, plastic purgings, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, industrial waste paper, wood pallet, circuit board, aluminum material, copper material, wire, cable, etc.
Final Products:
Features:
1.Easy for operation and maintainence
2.Low Power consumption,low noise,low price
3.Large diameter rotor,Low speed, high torque geared drive
4.Compact structure,low occupation place.
5.Powerful hydraulic swing type ram
6.Robust welded steel construction.
7.Two rotor designs with concave ground square knives

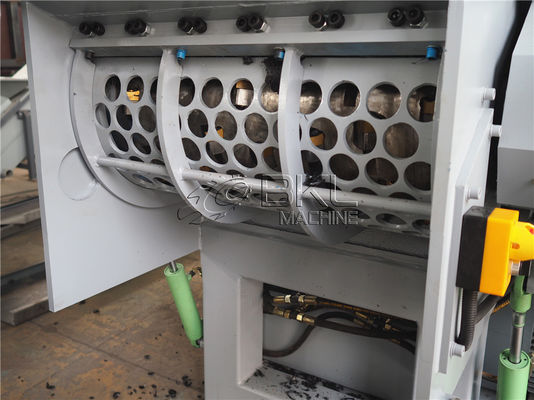

8.Electrical hydraulic control to open screen cradle
9.The screen filter sizes ranges for varies material particle size control.
10.PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine.
11.Electrical overloading protective
Main technical parameter:
| Model | YPS850 | YPS1050 | YPS1250 | YPS1450 | YPS2000 | YPX1500 | YPX2000 |
| Rotor diameter(mm) | 460 | 460 | 460 | 460 | 460 | 750 | 750 |
| Rotary speed(rpm) | 74 | 74 | 74 | 74 | 74 | 52 | 52 |
| Motor power(KW) | 45/55 | 55/75 | 75/90 | 90/110 | 2×55/2×75 | 2×75 | 2×90 |
| Rotary knife(PCS) | 60/64 | 80/75 | 90/88 | 102/96 | 144/140 | 76 | 96 |
| Stator knife(PCS) | 6 | 6 | 8 | 10 | 14 | 10 | 14 |
| Knife material | SKD11/ D2 | ||||||
| Hydraulic power(KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Screen size(mm) | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Feeding size(mm) | 840*1570 | 1000*1570 | 1200*1570 | 1400*1570 | 1960*1570 | 2540*1620 | 2540*2020 |
Advantages:
1.Whole chamber moves around, high shredding efficiency, never stuck.

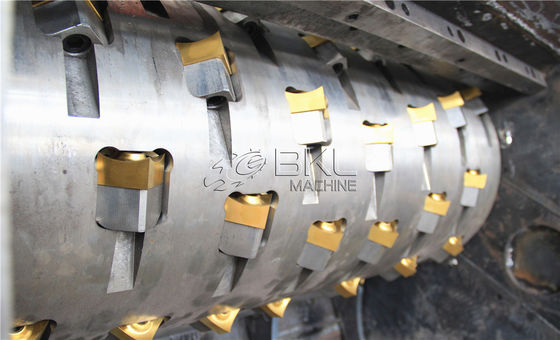

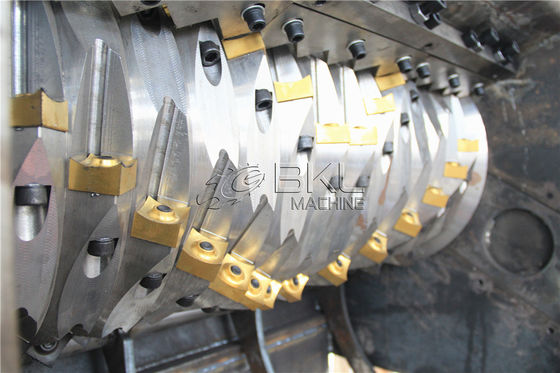

2. Solid main shaft, the shaft & knife rest is an integrated part and processed by CNC machining center with long life.
3.Transmission parts are locked by coupling and iron pins, protect reducer while avoid power loss.
4. The knife material is imported from TAIWAN/JAPAN, long service life.
5.Electrical system adopts PLC program 6.Features start, stop, reverse functions along with automatic overload return mechanism to prevent damage to working parts.
7.CE certified
