Product Details:
Payment & Shipping Terms:
|
| Name: | Industrial Plastic Shredder Machine | Application: | Plastic Recycling Size Reduction |
|---|---|---|---|
| Shaft Design: | Single Shaft | Blades Material: | SKD11 Or DC53 |
| Processed Material: | Plastic Scraps Or Flexible Strap Pieces | Main Motor: | 22kw Or 30kw |
| Keywords: | Plastic Shredder Machine | Usage: | Waste Plastic Cusher |
| High Light: | SS600 Plastic Shredder Machine,DC53 Plastic Shredder Machine,DC53 plastic bottle shredder |
||
Shredder For Plastic Recycling Industrial Plastic Shredder Machine
Description:
Single shaft shredder/Plastic Shredder Machine /Plastic Recycling Grinder/Plastic Granulator
SS series Single Shaft shredders are a kind of heavy duty size reduction machines which are capable for shredding a large range of materials such as hard plastics, woods,textiles,tires,cardboard,packed fibers,film in rolls ect. These models machines are specially designed for varies thick material like plastic blocks,lumps,polymer pipes, household plastics ect.
Details:
Material before Material After
Features:
▶Easy for operation and maintainence
▶Low Power consumption,low noise and cost
▶Low rotation rate which could working steady and gentle even when process really rough pieces with PLC control to achieve the flexible and efficient state on the machine's hydraulic system and driving system.
▶High quality gearbox ,motors used on driving system.
▶ Electrical overloading protective,
▶High thickness steel used on sturcture and frame for enhancing the stability of equipment.
▶The shredder use close-packed square structure rotor blades, can be used multiple times and extending the blade life.
▶The PLC controlled hydraulic pusher forces material to the rotor automatically.
▶The screen filter sizes ranges for varies material particle size control.
▶ hydraulic pusher, an independent power system, the structure solid, smooth running, a big chunk of the large bundle of plastic can tear up, feed easily, large capacity
▶PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine.
Main technical parameter:
| Shredder Model | SS600 | SS800 | SS1000 | SS1200 | SS1500 |
| Rotation diameter | 260 | 355 | 355 | 420 | 480 |
| Rotation speed(rpm) | 80 | 80 | 80 | 80 | 80 |
| Rotary blades(pcs) | 26/40 | 38/56 | 46/68 | 68/80 | 78/92 |
| Fixed blades(pcs) | 1 | 2 | 2 | 3 | 3 |
| Hydraulic Station Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Oil cylinder stroke(mm) | 750 | 850 | 1050 | 1200 | 1400 |
| The use of pressure(Mpa) | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 |
| Crushing capacity(kg/h) | 250~400 | 250~450 | 300~600 | 500~1000 | 600~1200 |
| Feeding caliber(mm) | 550*650 | 700*900 | 880*1100 | 1070*1150 | 1280*1300 |
| Power of main motor(kw) | 22/30 | 37/55 | 55/75 | 75/90 | 90/110 |
| Machine weight(kg) | 2500 | 3700 | 4800 | 5500 | 6800 |
| Dimension(L*W*H)(cm) | 240*140*190 | 300*160*225 | 340*170*250 | 380*220*290 | 420*300*330 |
Advantages:
1) Whole chamber moves around, high shredding efficiency, never stuck.
2) Solid main shaft, the shaft & knife rest is an integrated part and processed by CNC machining center with long life.
3)Transmission parts are locked by coupling and iron pins, protect reducer while avoid power loss.
4) The knife material is imported from TAIWAN/JAPAN, long service life.
5)Electrical system adopts PLC program
6)Features start, stop, reverse functions along with automatic overload return mechanism to prevent damage to working parts.

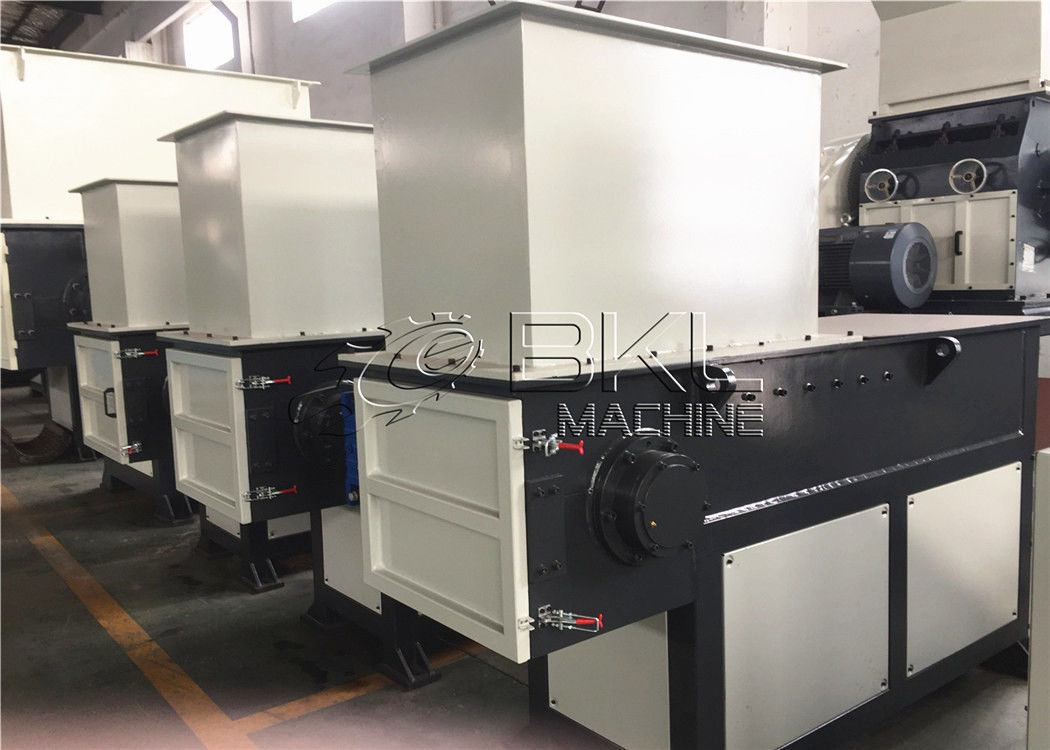

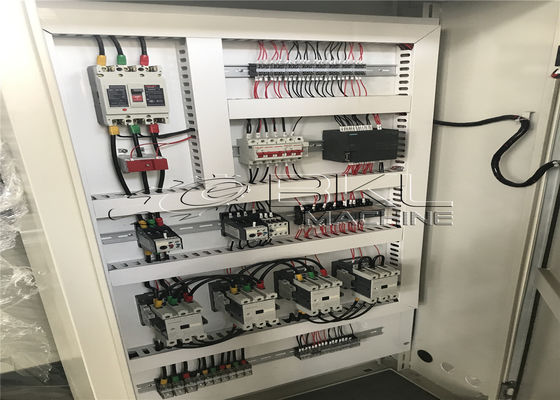

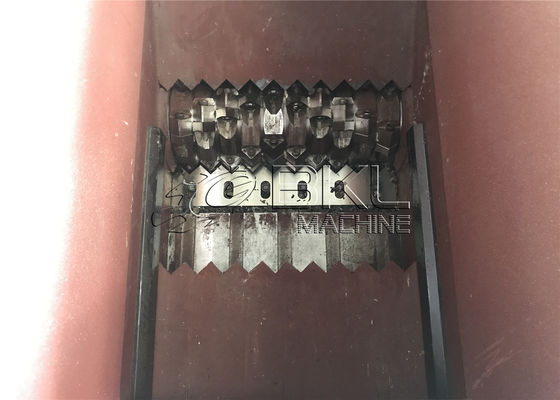

Photos for Single shaft shredder / Industrial Plastic Shredder Machine:
