Product Details:
Payment & Shipping Terms:
|
| Name: | Waste Plastic Shredder | Plastic Type: | PP/PE,PET,PP,PVC,ABS,PS,PC Ect |
|---|---|---|---|
| Blades Material: | 9Crsi, SKD11,DC53 | Application: | Recycle Waste Plastic |
| Usage: | Waste Plastic Cusher | Motor Power: | 55KW |
| Hydraulic Power: | 4KW | Keywords: | Plastic Shredder, Single Shaft Shredder |
| High Light: | SS1000 Plastic Shredder Machine,9Crsi Plastic Shredder Machine,9Crsi Plastic Scrap Granulator |
||
Heavy Duty Solid Plastic Scrap Granulator Wastes Plastic Shredder Machine
Description:
SS series Plastic Shredder Machine is a kind of heavy duty size reduction machines which are capable for shredding a large range of materials such as hard plastics, woods,textiles,tires,cardboard,packed fibers,film in rolls ect. These models machines are specially designed for varies thick material like plastic blocks,lumps,polymer pipes, household plastics ect.

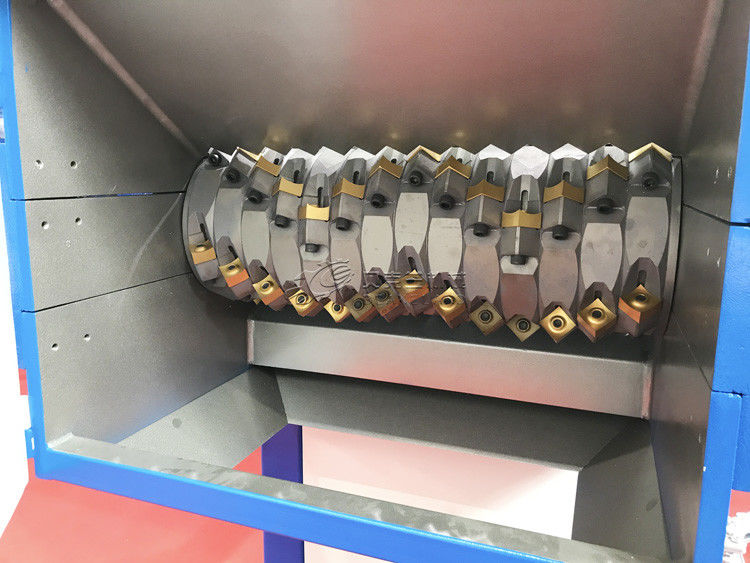

There are two types of rotor blade designs for different applications. A type (Shaft-knife holder intergrated type) for soft material and the B type( blade seat type )for block material.
External bearing seat. The bearing seat was designed outside the machine body, and the main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing to prolonging the life of the bearing.
Details:
Material before Material After
Features:
▶Easy for operation and maintainence
▶Low Power consumption,low noise and cost
▶Low rotation rate which could working steady and gentle
▶High quality gearbox ,motors used on driving system.
▶ Electrical overloading protective,
▶High thickness steel used on sturcture and frame for enhancing the stability of equipment.
▶The shredder use close-packed square structure rotor blades, can be used multiple times and extending the blade life.
▶The PLC controlled hydraulic pusher forces material to the rotor automatically.
▶The screen filter sizes ranges for varies material particle size control.
▶ hydraulic pusher, an independent power system, the structure solid, smooth running, a big chunk of the large bundle of plastic can tear up, feed easily, large capacity
▶PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine.
Main technical parameter:
| Shredder Model | SS600 | SS800 | SS1000 | SS1200 | SS1500 |
| Rotation diameter | 260 | 355 | 355 | 420 | 480 |
| Rotation speed(rpm) | 80 | 80 | 80 | 80 | 80 |
| Rotary blades(pcs) | 26/40 | 38/56 | 46/68 | 68/80 | 78/92 |
| Fixed blades(pcs) | 1 | 2 | 2 | 3 | 3 |
| Hydraulic Station Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Oil cylinder stroke(mm) | 750 | 850 | 1050 | 1200 | 1400 |
| The use of pressure(Mpa) | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 |
| Crushing capacity(kg/h) | 250~400 | 250~450 | 300~600 | 500~1000 | 600~1200 |
| Feeding caliber(mm) | 550*650 | 700*900 | 880*1100 | 1070*1150 | 1280*1300 |
| Power of main motor(kw) | 22/30 | 37/55 | 55/75 | 75/90 | 90/110 |
| Machine weight(kg) | 2500 | 3700 | 4800 | 5500 | 6800 |
| Dimension(L*W*H)(cm) | 240*140*190 | 300*160*225 | 340*170*250 | 380*220*290 | 420*300*330 |
Advantages:
1) Whole chamber moves around, high shredding efficiency, never stuck.
2) Solid main shaft, the shaft & knife rest is an integrated part and processed by CNC machining center with long life.
3)Transmission parts are locked by coupling and iron pins, protect reducer while avoid power loss.
4) The knife material is imported from TAIWAN/JAPAN, long service life.
5)Electrical system adopts PLC program
6)Features start, stop, reverse functions along with automatic overload return mechanism to prevent damage to working parts.
Photos for Single shaft shredder / Plastic Shredder Machine:
