Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Condition: | New | Weight: | 300-2000 Kg |
| Certification: | CE | Power(w): | Customized |
| Material: | PE PP Hard Plastic | Final Product: | Clean Flakes |
| Final Flake Size: | 12mm | Water Consumption: | 3-10 Tons |

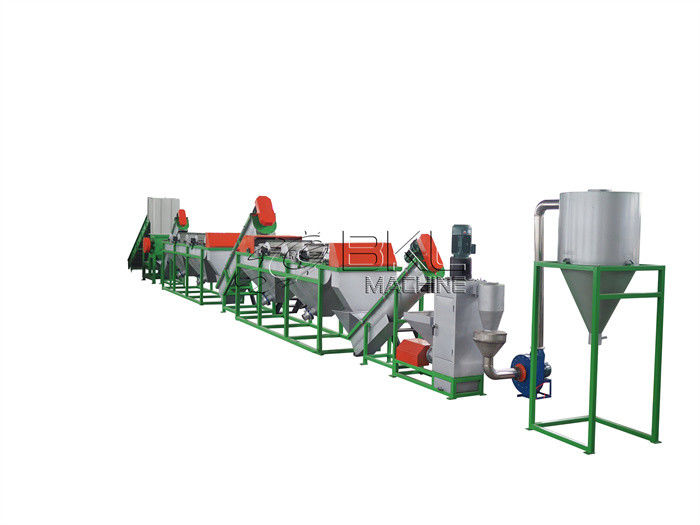

Hard Plastic HDPE Bottle Recycling Washing Production Machine Line
Model of washing line:
| Model | Capacity | Installed Power | Hot washing | Water Supply | Man power |
| BKL-300 | 300kg/hr | 200KW | Optional | 6-8m3/hr | 1-2 |
| BKL-500 | 500kg/hr | 350KW | Optional | 8-10m3/hr | 1-2 |
| BKL-1000 | 1000kg/hr | 600KW | Optional | 15-20m3/hr | 2-3 |
Machine parts list:
| NO | Machine name | Quantity | Remark |
| 1 | Belt Conveyor | 1 set | Optional |
| 2 | Dewatering machine | 1 set | Necessary |
| 3 | Manual Select Platform | 1 set | Necessary |
| 4 | dryer | 1 set | Necessary |
| 5 | Wet Crusher | 1 set | Material of blades: SKD-11 |
| 6 | Lower Speed Friction Washer | 1 set | Necessary |
| 7 | Floating Washer | 1 set | Necessary |
| 8 | Screw Conveyor | 1 set | Necessary |
Description:
It used to recycling the waste HDPE/LDPE/PP Bottles and buckets,hollow container and so on.The production line including the conveyor belt,metal detector ,plastic wet crusher,floting washing tank,high speed friction washer,centrifugal dewatering machine; drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your
requirement.
