Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Condition: | New | Weight: | 300-2000 Kg |
| Certification: | CE | Power(w): | Customized |
| Material: | PP Bags | Final Product: | Clean Flakes |
| Final Flake Size: | 100mm | Water Consumption: | 5tons |
| High Light: | 500kg/H plastic waste recycling machine,Raffia plastic waste recycling machine,Raffia plastic bag recycling machine |
||

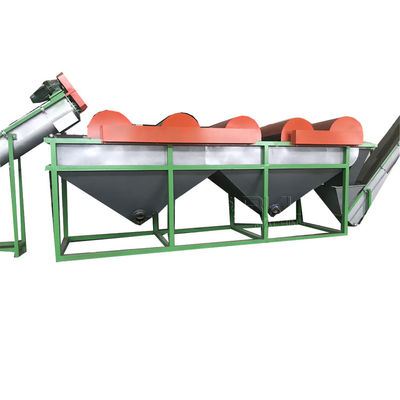

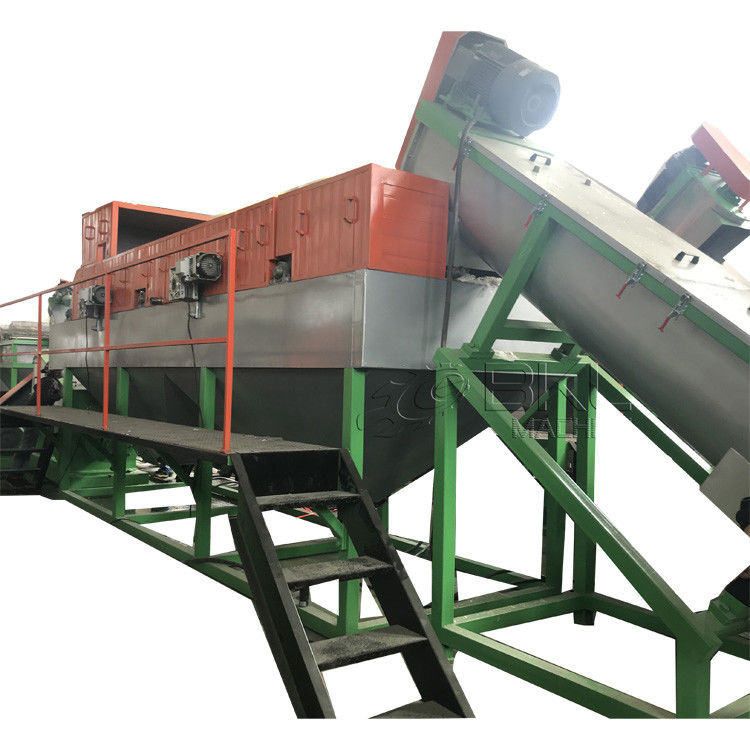

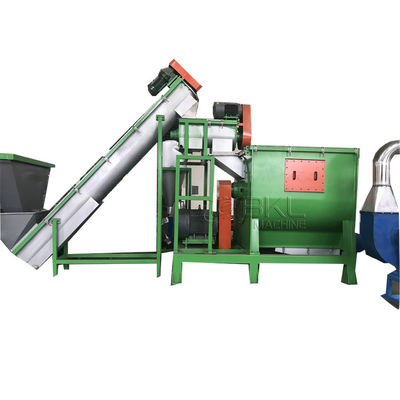

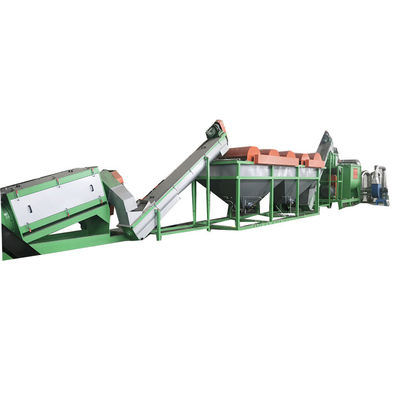

500kg/H Waste Plastic PPP Raffia Bags And Tons Bags Washing Recycling Machine Plant
Description:
This unit is mainly for PP Raffia Bags: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and PP Raffia Bags after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
.
Details:
| S/N | Item | Requirement | |
| 1 | Capacity: | 500kg/hr | |
| 2 | Raw material: | Post-consumer PP bags | |
| 3 | Final Products: | Recycled Clean flakes with below parameters: | |
| Flakes size | 100mm | ||
| Moisture Content | 1~3% | ||
| Total impurity | 200ppm | ||
| 4 |
Working condition:
|
Warehouse/workshop: Straight line dimension: 32x3.5x4.5m (also we can install the line as “U” or“L” shape) Plant height: >5m Area: >500 ㎡ |
|
|
Power supply:Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
|||
|
Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine. Air source: 0.6-0.8MPa All water supplying and draining piping Water supplying and water drain pools underground Water treatment system can buy optional Steam supplying can buy optional to instead of electricity heating Other installation facility and tools Sound proof for the crusher and other machines optional choose |
|||
|
5 |
Energy consumption: |
Installed Power about:95.4KW Actual consumption 95.4*70%=67KW Consumption: 10 tons/h(Proposed water-treatment project) Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply Labor requests:2-3 persons. |
|
Machine parts list:
| NO | Machine name | Quantity | Remark | |
| 1 | Belt Conveyor | 2sets | Necessary | |
| 2 | friction washer | 2sets | Necessary | |
| 3 | Wet Crusher | 1 set | Material of blades: SKD-11 | |
| 4 | Lower Speed Friction Washer | 2 sets | Necessary | |
| 4 | Floating Washer | 1set | Necessary | |
| 6 | Screw Conveyor | 2 sets | Necessary | |
| 7 | blower system | 1set | Necessary |
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
Each component before assembly needs strictly control by inspecting personnel.
Each assembly is in charged by a master who has working experience for more than 10 years
After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
