Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Condition: | New | Weight: | 300-2000 Kg |
| Certification: | CE | Power(w): | Customized |
| Material: | PE PP | Final Product: | Clean Flakes |
| Final Flake Size: | 100mm | Water Consumption: | 3-10 Tons |
Plastic Recycling Machine Price For PP Woven Bags Recycling Machine
Description:

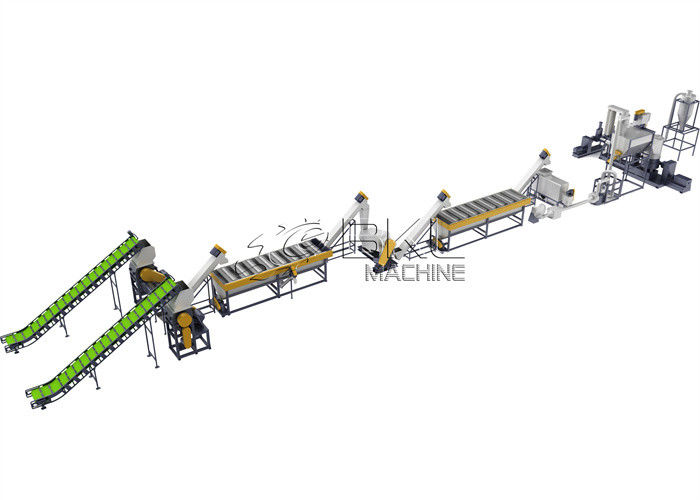

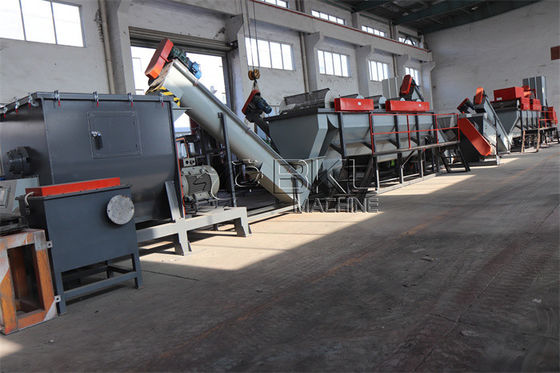

The production line including the conveyor belt,metal detector ,plastic wet crusher,floting washing tank,high speed friction washer,centrifugal dewatering machine drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your requirement..
.
Details:
| S/N | Item | Requirement | |
| 1 | Capacity: | 500kg/hr | |
| 2 | Raw material: | Post-consumer PET bottles | |
| 3 | Final Products: | Recycled Clean flakes with below parameters: | |
| Flakes size | 100 mm | ||
| Moisture Content | 1~3% | ||
| Total impurity | 200ppm | ||
| 4 |
Working condition:
|
Warehouse/workshop: Straight line dimension: 32x3.5x4.5m (also we can install the line as “U” or“L” shape) Plant height: >5m Area: >500 ㎡ |
|
|
Power supply:Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
|||
|
Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine. Air source: 0.6-0.8MPa All water supplying and draining piping Water supplying and water drain pools underground Water treatment system can buy optional Steam supplying can buy optional to instead of electricity heating Other installation facility and tools Sound proof for the crusher and other machines optional choose |
|||
|
5 |
Energy consumption: |
Installed Power about:95.4KW Actual consumption 95.4*70%=67KW Consumption: 10 tons/h(Proposed water-treatment project) Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply Labor requests:2-3 persons. |
|
Machine parts list:
| NO | Machine name | Quantity | Remark | |
| 1 | Belt Conveyor | 2sets | Necessary | |

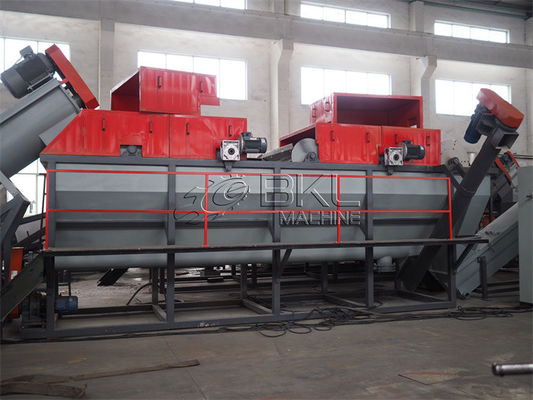

| 2 | friction washer | 2sets | Necessary | |

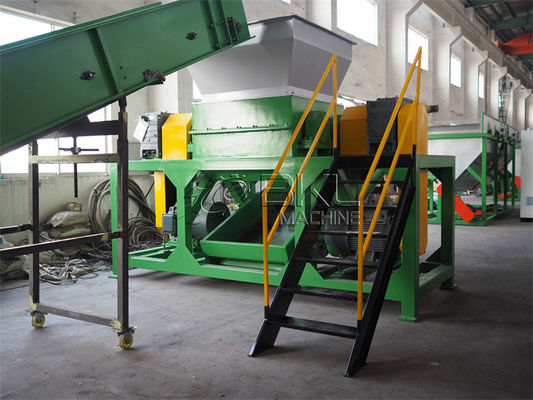

| 3 | Wet Crusher | 1 set | Material of blades: SKD-11 | |
| 4 | Lower Speed Friction Washer | 2 sets | Necessary | |

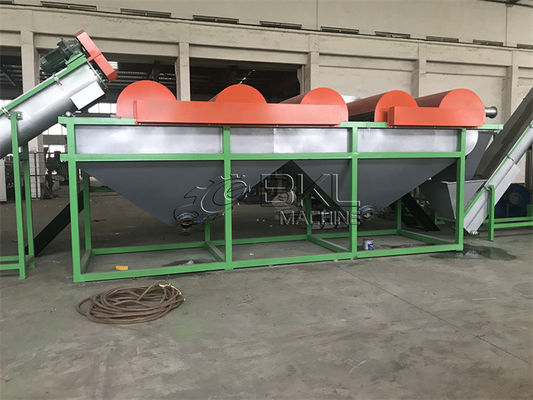

| 4 | Floating Washer | 1set | Necessary | |
| 6 | Screw Conveyor | 2 sets | Necessary | |
| 7 | blower system | 1set | Necessary |
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
