9CrSi Plastic Crusher Machine Water Bottle 1000kg H

Brief intro:

The Heavy duty HVC series Plastic Crushing Machine has been specially design for the processing of flms,bottles, and other hollow thin walled plastics. This plastic crushig machine has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re- sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.

Features:
1.The plastic crushing machine rotor is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives of the plastic crushing machine are manufactured from chrome nickel tool steel as standard.

2.The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels and more throughput.

3.Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.

4.The base frame has a solid welded construction . The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction system for material collection.

5.Specially designed hopper to prevent material fly back. Electrical overloading protective

Technology Data:

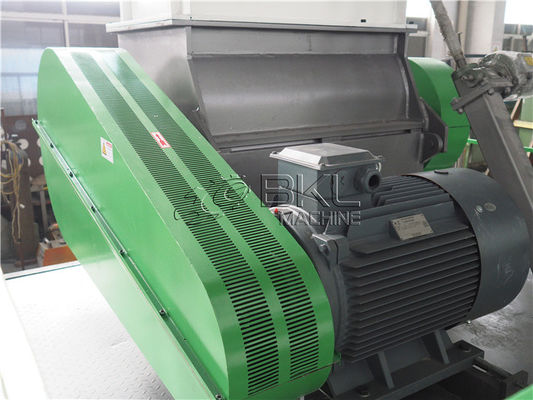

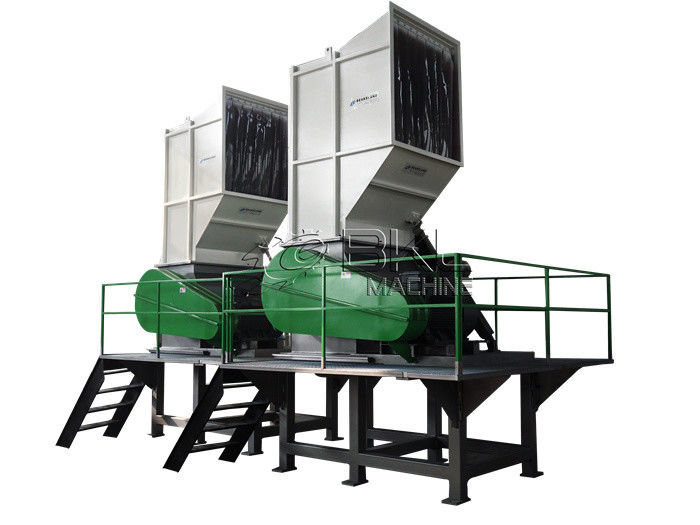

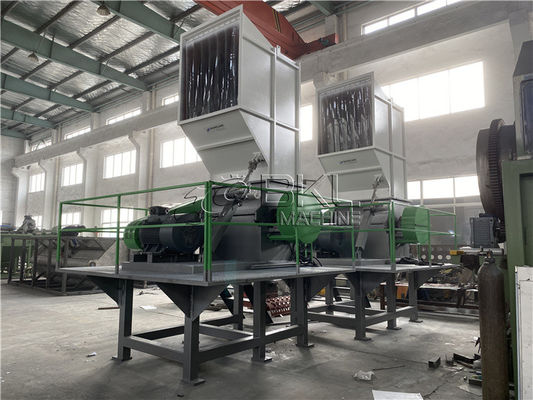

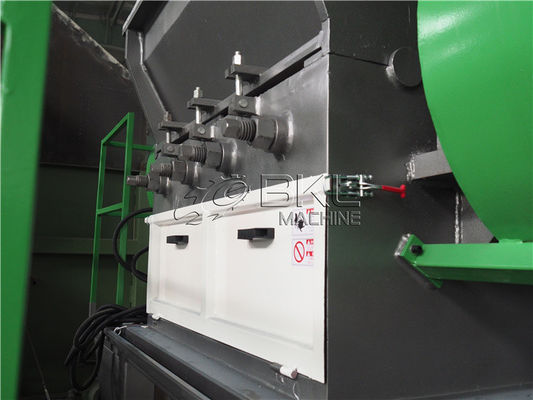

Plastic crushing machine details photo:
