Product Details:
Payment & Shipping Terms:
|
| Name: | Waste Plastic Crusher | Type: | Plastic Grinding Machine |
|---|---|---|---|
| Application: | PVC PE HDPE PPR Pipe Sheet Long Profile | Power: | 15~110kw |
| Use: | Plastic Waste Recycling | Bearings: | External Bearing Design |
| Blade Design: | V Type Or C Type Up To Material Application | Capacity Range: | 100-2000kg/h |
| High Light: | SWP500 Plastic Crusher Machine,110kw Plastic Crusher Machine,SWP500 bottle crushing machine |
||

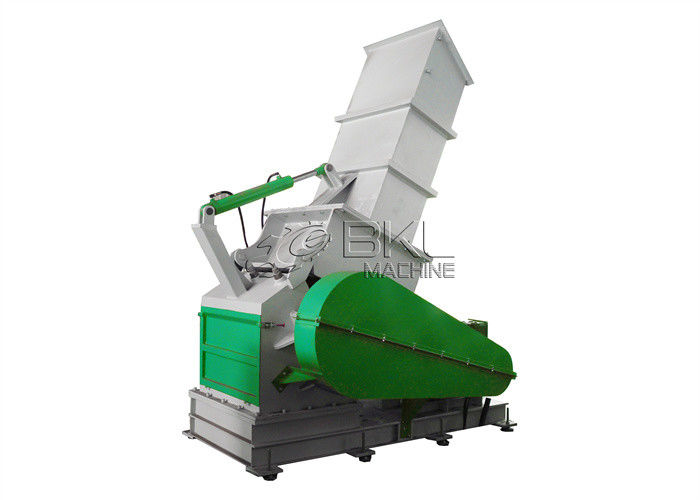

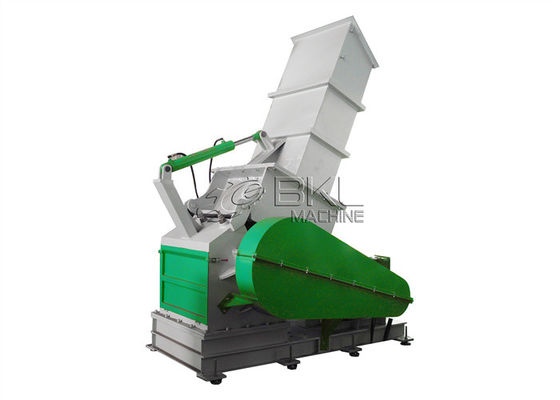

Long Profile HDPE Pipe Crusher Machine For Plastic Crusher Machine
Description
SWP series HDPE Pipe Crusher Machine are designed to meet the needs of high-volume crushing of PVC hollow plates, plastic trays and wide profiles, PPR pipe,HDPE pipe, corregated pipes eliminating the pre-decomposition process of products using conventional machines, saving labor, reducing labor intensity, and improving crushing recovery efficiency.
According to the material characteristics, design the appropriate cutting angle, cutting speed, and wear-resistant design to ensure that the system runs continuously for a long time, so as to achieve the ideal material crushing effect.
Applications:
Relatively long HDPE PVC special shaped materials, such as plastic pipe, pipe fittings,plastic door & window,sheet and etc.
Waste PVC pipes, PE pipes with wall thickness less than 20mm.
Main Technical Parameter:
| ITEM | UNIT | SWP400 | SWP600 | SWP800 | SWP1000 | SWP1200 | SWP1400 |
| Rotor Diameter | mm | Φ320 | Φ500 | Φ500 | Φ600 | Φ600 | Φ800 |
| Rotor Width | mm | 400 | 600 | 800 | 1200 | 1200 | 1400 |
| Rotor speed | Rpm | 560 | 500 | 500 | 470 | 470 | 410 |
| Rotor Knives | pcs | 3 | 6 | 6 | 10 | 10 | 20 |
| Stator Knives | pcs | 2 | 4 | 4 | 4 | 4 | 4 |
| Cutting Chamber Dimension | mm | 300x400 | 600x500 | 800x500 | 1000x600 | 1200x600 | 1400x800 |
| Motor Power | kw | 15-22 | 22~30 | 37-55 | 55-75 | 75-90 | 90-110 |
| Capacity | Ton/hr | 200~2000kg/h | |||||
| Open hopper | By manual or hydraulic control | By hydraulic control | |||||
| Open screen cradle | By manual or hydraulic control | By hydraulic control | |||||
Features:
1. Compact design, saves space,Ground hopper easy for feeding long material
2. Tilt up and down case for easy blade replacement
3. Hydraulically driven hopper and box opening device for easy maintenance
4. High safety factor bearings reduce the chance of bearing damage
5. Precise spindle machining (V cut or Claw type)
6. Both sides of the box are equipped with replaceable wear plates

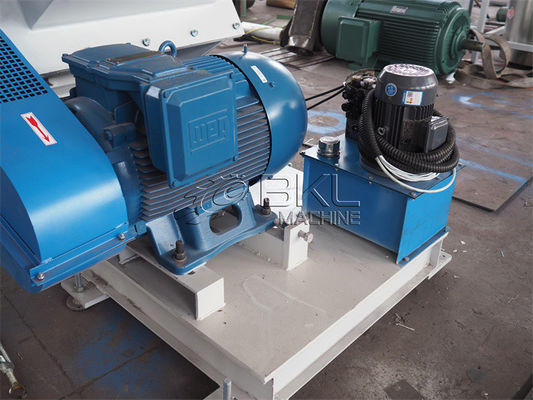

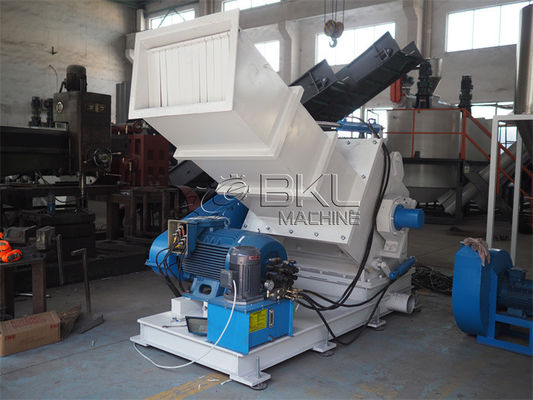

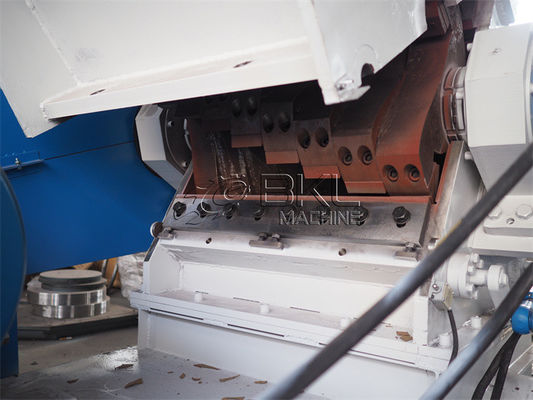

7.Standard models can be equipped with air blower device.Detailed photos for Long profile HDPE pipe Waste Plastic Crusher:
