Product Details:
Payment & Shipping Terms:
|
| Machine Name: | 300KG/H PE PP Bags Recycling Machine In Plastic Granulating Line | Screw Diameter: | 130 |
|---|---|---|---|
| L / D: | 28 | Plastic Processed: | PE,PP,HDPE,LDPE Film |
| Capcacity: | 300 Kg / H | Condition: | New |
| Warranty: | 1 Year | Name: | Pp Pe Pelletizing Machine |
| High Light: | 300KG H Plastic Granulating Line,HDPE LDPE Plastic Granulating Line,HDPE LDPE polythene bag recycling machine |
||

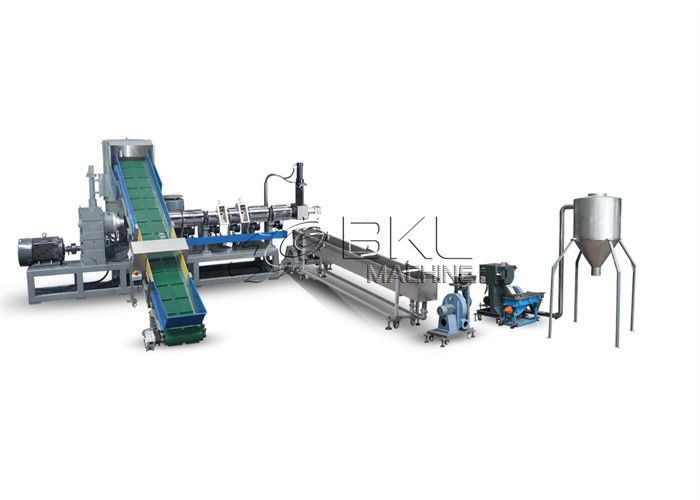

PE PP Bags Recycling Machine In Plastic Granulating Line
Description:
Film Recycling Granulating Machine Line with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, plastic handbag etc.
After processing techniques such as compression, heating, melt, pelletizing, cooling, drying etc., the final products are plastic pellets, granules, which can be to produce garbage bags, drainage pipes, plastic board etc.
Single stage extruder is normally designed for good cleanliness and low moisture material,such as leftover material from the film/bag production line, printed films ect.
| No. | Machine | Qty. |
| 1 | Belt conveyer | 1 set |
| 2 | Metal detectors | 1set |
| 3 | Agglomerator | 1 set |
| 4 | 130/28 single screw extruder | 1 set |
| 5 | Screen changer | 1 set |
| 6 | Traction device | 1 set |
| 7 | Frequency inverter | 1 set |
| 8 | ML130/10 single screw extruder | 1 set |
| 9 |
Screen changer |
1 set |
| 10 | Water ring cutter-patent technology | 1 set |
| 11 | Centrifugal dryer water tank | 1 set |
| 12 | Vibrator | 1 set |
| 13 | Packing system | 1 set |
| 14 | Control cabinet | 1set |
Components:
Film Recycling Granulating Machine Line mainly consists of Belt conveyor, Cutter Compactor, Single Screw Extruder, Degassing, Hydraulic Screen Changer, Die Mould, Water ring Pelletizing or Spaghetti Pelletizing, Centrifugal Dewatering or Cooling Water Tank,Vibration machine,Air blowing and Silo, Electric Control Panel.
| Raw material & formulation |
Clean PE PP Film, woven/nonwoven bag products Moisture content≤10%, Dimension up to 40mm |
| Output capacity | Max: 350kg/hr (PE) Max: 300kg/hr (PP) (based on raw material condition and water content) |
| Machine color | CUSTOMIZED |

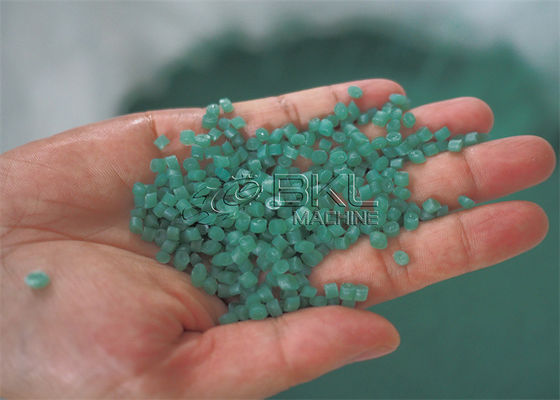

| Description final product | PE PP pellet, Granule size: Ф3*3mm |
