Product Details:
Payment & Shipping Terms:
|
| Name: | Flakes Plastic Granulating Line | Screw Design: | Single Screw Extruder |
|---|---|---|---|
| Stage: | Double Stage | Material Type: | PP PE LDPE HDPE Flakes |
| Capacity: | 900 - 1200 KG / H | First Stage Motor: | 250KW |
| Second Stage Motor: | 75 KW | Screw Diameter: | 180mm,200mm |
| Highlight: | 250KW plastic granulating machine,Double stage plastic granulating machine,250KW plastic recycling granulator |
||

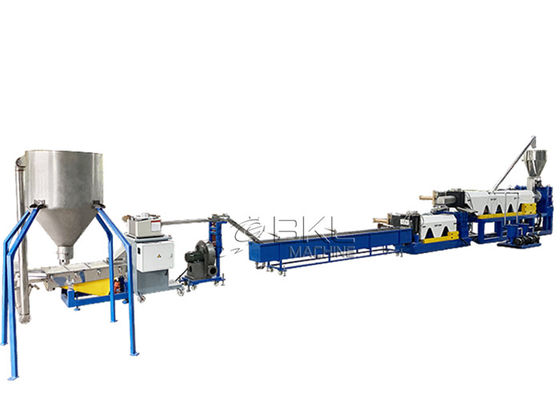

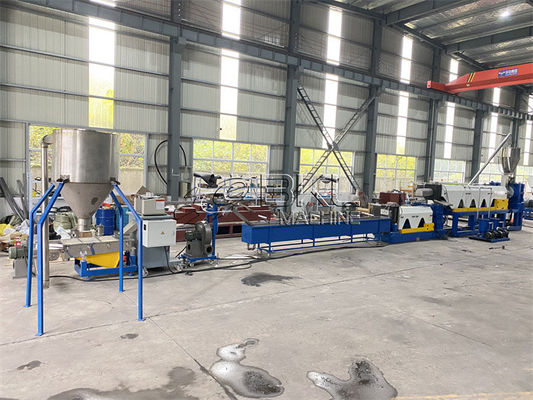

PP PE Flakes Recycled Milk Bottle Flakes Plastic Granulating Line
Description:
PP PE Flakes Recycled Milk Bottle Flakes Plastic Granulating Line is consists of two sets single screw extruders.
This Plastic Granulating Line with international advanced recycling technology and combined with the actual application condition. It is design specializes for recycling the recycled washed plastic PP PE rigid plastic flakes, such as plastic milk bottle flakes, shampoo bottle flakes, medicine bottle flakes, pe drinking bottle flakes, plastic basin flakes, plastic bucket flakes, etc.
After processing techniques such as feeding, heating, melt, cooling, drying, cutting etc., the final products are PP PE plastic pellets, granules that can be further to produce plastic chair, plastic profile, plastic bottle, drainage pipes, plastic sheet etc.
Working flow of PP PE Flakes Recycled Milk Bottle Flakes Plastic Granulating Line:
Screw feeder → efficient extruder → non-stop hydraulic screen filter changer → second stage extruder → hydraulic screen filter changer → die head →water cooling → strand cutting(watering cutting) → blower → storage hopper → electric control panel
Advantages:
Technicial specificaions for Double Stage Plastic Granulating Line:
| Machine | SJ120-120 | SJ130-130 | SJ150-150 | SJ160-160 | SJ180-180 |
| Capacity(kg/h) | 200-350 | 300-400 | 400-550 | 600-750 | 800-1000 |
| First stage screw(mm) | 120 | 130 | 140 | 160 | 180 |
| First stage main motor(kw) | 75/90/110 | 110/132 | 160 | 185/220 | 250 |
| First stage screw l/d | 33 | 35 | 35 | 35 | 35 |
| Second stage screw (mm) | 120 | 130 | 150 | 160 | 180 |
| Second stage main motor(kw) | 22/30 | 45 | 55 | 75 | 75 |
| Second stage screw l/d | 10 | 10 | 10 | 10 | 10 |
| Screw max speed | 90rpm | 90rpm | 90rpm | 90rpm | 90rpm |
| Total power consumption | 65-85kwh | 105-117kwh | 150kwh | 178-200kwh | 230kwh |
| Delivery time | 50-75 work days | ||||
| Workers | One | Two | Two | Two | Two |
