Product Details:
Payment & Shipping Terms:
|
| Name: | PP Woven Bag Washing Recycling Lines | Processing Steps: | Crushing-Washing-Drying |
|---|---|---|---|
| Capacity Range: | 200-300kg/h | Automatic Grade: | Automatic |
| Application Field: | Manufacturing Plant | Moisture Of Products: | 5-10% |
| Power Consumption: | 120KW | Crushing Motor: | 37KW |
| Keywords: | Plastic Recycling Lines | ||
| High Light: | 200kg/h bag Plastic Recycling Lines,BKL 1000 Plastic Recycling Lines,200kg/h plastic recycling washing machine |
||
PP Raffia Bag Ton Bag PP Woven Bag Washing Recycling Lines
Description
PP Woven Bag Washing Recycling Lines could roughly divided to PP PE soft plastic recycling washing line and PP PE rigid plastics recycling washing line.
It is mainly used for process materials such as PE waste film, LDPE (LLDPE) film 98/99,PE Mulch film, PE Agricultural film, PE shopping bags,garbage bags, PP raffia bags,woven bags,PP Ton bag, PP non-woven film,bags and related wastes from varies source. The complete recycling washing machine line could turn collected dirty polyethylene and polypropylene films,post-consumer bags to clean and dry film pieces which could be used for further pelletizing.
Main processing steps include: Crushing-Washing-Drying-Packing.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
Working Flow of PP Woven Bag Washing Recycling Lines
Belt conveyor → Crusher (with water) → High speed friction washing machine → Floating washing machine(Can be hot washer) → High speed friction washing machine → Floating washing machine → dewatering machine → drying pipeline system → Silo→control cabinet
Technical parameter of PP PE Plastic Recycling Washing Line
For soft PP / PE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
For Rigid PP / PE:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Features and advantage of plastic recycling lines
1. Simple and reasonable design machine structure,easy for operation and maintenance.
2. Excellent washing ability,High capacity and High automation control level,labor cost saving and energy saving could be realized.
Capacity ranges: 200-2000kg/h
3. Low Moisture contents of final products. Film normally keeps at 5-10%. Rigid plastics keeps at 1-2%.
4. Final material particle size: film 40-100mm(customized), rigids: 10-20mm(customized).
5. Electrical components are all famous brand in China and abroad.(customized)
6. Washing machine Parts which contact material use SUS304 with high thickness to ensure long service lift time
7. Production line could be displayed “L” or “U’ shape according to customer’s workshop.

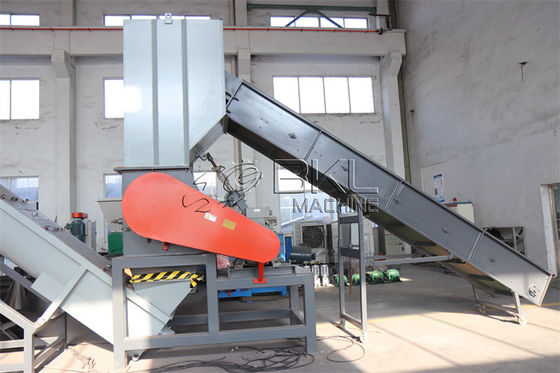

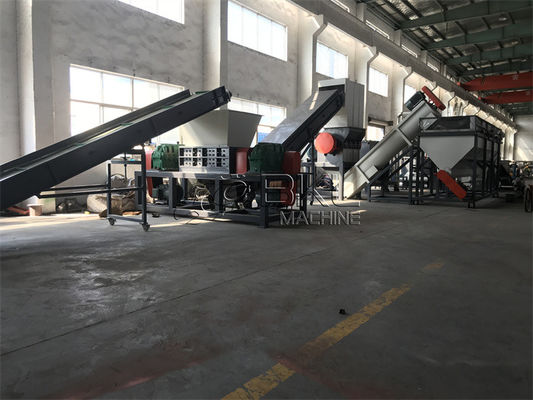

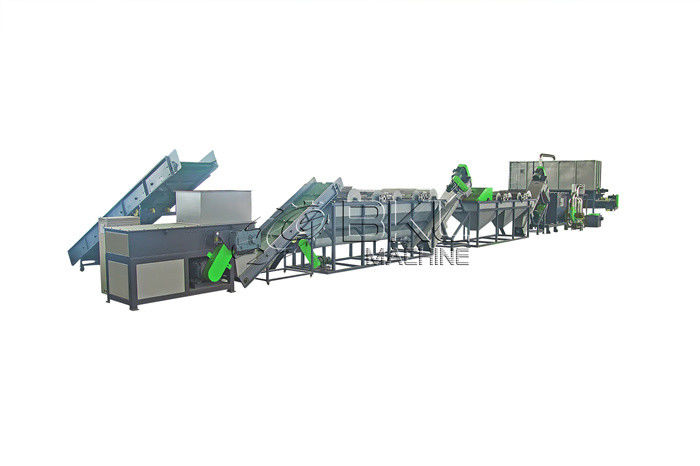

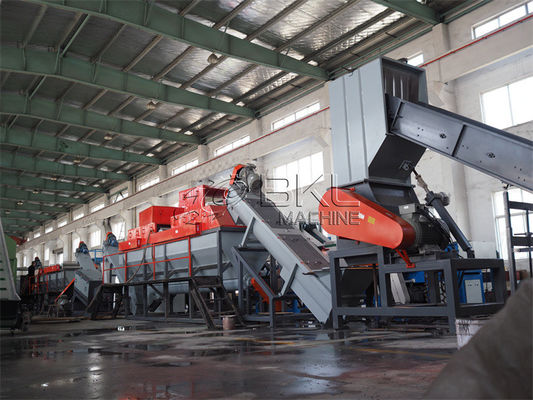

Detailed Photos
