| Product Name: | Recycle Washing Line | Processing Steps: | Crushing-Washing-Drying |
|---|---|---|---|
| Input Capacity: | 200-300kg/h | Application: | Plastic Recycling |
| Moisture Of Products: | 5-10% | Plastic Type: | PP\PE,PP PE HDPE Film(bottle) |
| Power Consumption: | 120KW | Crushing Motor: | 37KW |
| Keywords: | Plastic Recycling Lines | ||
| High Light: | 120KW Plastic Recycling Lines,PP HDPE Plastic Recycling Lines,120KW waste plastic washing machine |
||

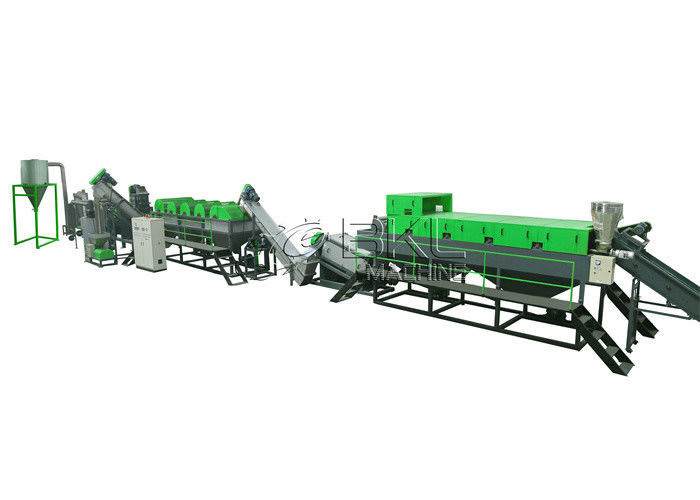

Waste plastic PP PE Recycle washing line
Description
Plastic Recycle washing line is one of the main element of the recycling market. With years of experience in the field, Recycling Lines manufacture and sell plastic film recycling production line all of the world. Thanks to the technology and our know-how we can provide different types of plastic recycling lines according requirements of our clients. Here you can find details and specifications of the recycling lines that we can able to provide.
PP PE Recycle washing line could roughly divided to PP PE soft plastic recycling washing line and PP PE rigid plastics recycling washing line.
PE PP soft material washing line can process PP woven bags, plastic jumbo bags, plastic shopping bags, PP PE films etc.
Main processing steps include: Crushing-Washing-Drying-Packing.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
Working Flow of Waste plastic PP PE Recycle washing line
Belt conveyor → Crusher (with water) → High speed friction washing machine → Floating washing machine(Can be hot washer) → High speed friction washing machine → Floating washing machine → dewatering machine → drying pipeline system → Silo→control cabinet
Technical parameter of Waste plastic PP PE Recycle washing line
For soft PP / PE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
For Rigid PP / PE:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Product features of the Waste plastic PP PE Recycle washing line
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
