| Machine Name: | Plastic Bottle Recycling Machine Price | Processing Steps: | Crushing-Washing-Drying |
|---|---|---|---|
| Capacity: | 400-600kg/h | Application: | PP PE Rigid Plastic Recycling |
| Moisture Of Products: | 1-2% | Plastic Type: | PP\PE,PP PE HDPE Film(bottle) |
| Energy Consumption: | 200KW | Crusher Power: | 55KW |
| Labor Required: | 2-3 | ||
| Highlight: | BKL 500 pet bottle recycling machine,200KW pet bottle recycling machine,200KW pet bottle flakes machine |
||

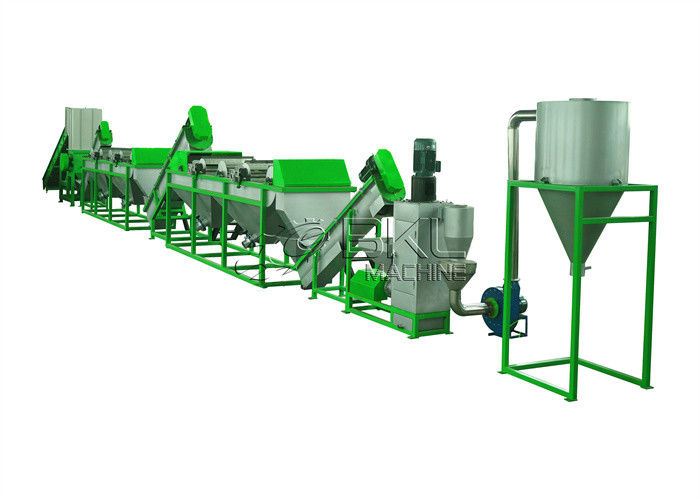

Plastic Rigid Scrap Plastic Bottle Recycling Machine Price
Description :
Plastic Rigid Scrap Plastic Bottle Recycling Machine is mainly used for process rigid PP PE (HDPE) wastes in varies products forms of daily life like milk bottles,detergent bottles,shampoo bottles,barrel,bucket,creates,containers,vaires profiles ect. It could turn wastes to clean scraps ,flakes for further pelletizing.
Main processing steps include: Crushing-Washing-Drying-Packing.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
Main components of Plastic Rigid Scrap Plastic Bottle Recycling Machine
| No. | Machine name | Function |
| 1 | Belt conveyor | For waste material feeding automatically. |
| 2 | Shredder | For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs. |
| 3 | Crusher/Granulator | Wet crushing system.It used for material size reduction and pre-washing. |
| 4 | Low speed friction washer | For material conveying to next washing steps. 720rpm rotating speed could pre-washing the material with a good effect. |
| 5 | Screw loader | For material conveying to next stage. |
| 6 | Sink & Float separation tank | for impurities precipitating separation and wash the material more clean. |
| 7 | High speed Friction washer( Scrub washing machine) |
It could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing.
|
| 8 | Dewatering machine(Centrifugal dryer) | This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently. |
| 9 | Storage silo | For material storage and packing |
| 10 | Electrical control cabinet | Electrical parts brand customized. |
Technical parameter of Plastic Rigid Scrap Plastic Bottle Recycling Machine
For Rigid PP / PE:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Product features of the Plastic Bottle Recycling Machine
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
Detailed Photos
