| Name: | Plastic Recycling Washing Machine | Production Steps: | Crushing-Washing-Drying |
|---|---|---|---|
| Capacity: | 400-600kg/h | Application: | PP PE Rigid Plastic Recycling |
| Moisture Of Products: | 1-2% | Plastic Type: | PP\PE,PP PE HDPE Film(bottle) |
| Energy Consumption: | 200KW | Crushing Particle: | 60-120mm For Film, 8-16mm For Rigid Flakes |
| Labor Required: | 2-3 | ||
| High Light: | 600kg/h Plastic Recycling Lines,200KW Plastic Recycling Lines,600kg/h plastic bag recycling machine |
||

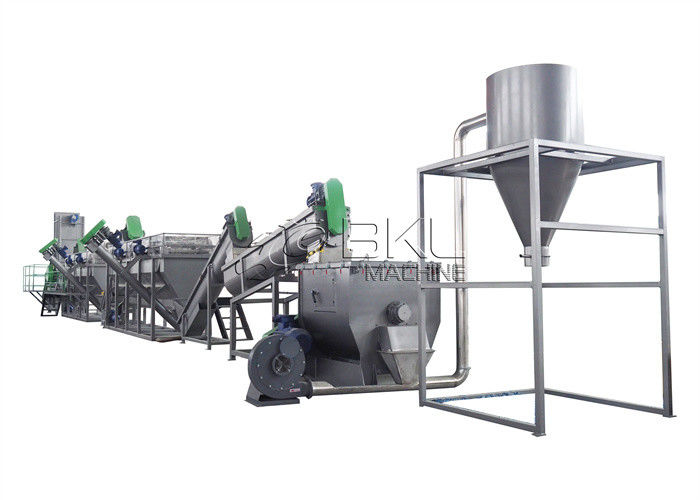

PP PE Plastic Bag Recycling Machine Plastic Recycling Washing Machine
Description :
This Plastic Recycling Washing Machine can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine.
It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
Main components of Plastic Recycling Washing Machine
Belt Conveyor: The materials go into the crusher by the crawler belt, which is moved by inside scroll wheel.
Crusher: Crush the material to smaller size.
Screw Loader: Put the flakes into the Hot washer to clean.
Hot Washer: If the bottle is very dirty, like oil, sand, it must be use hot washer.
Screw Loader: Put the flakes into the High-speed Friction Washer to clean.
High-speed Friction Washer: After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
Floating Washer 1: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Floating Washer 2: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Dewatering: Rejection the water from the flakes, moisture content is less than 2%.
Drying Pipeline
Silo: Storage materials.
Electrical Control Cabinet
Technical parameter of Plastic Recycling Washing Machine
For soft PP / PE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
For Rigid PP / PE:
| Model | BKL-FR500 | BKL-FR1000 | BKL-FR2000 | BKL-FR3000 |
| Capacity (KG/H) | 400-500 | 800-1000 | 1800-2000 | 2500-3000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 90--130 | 130-210 | 200-350 | 300-400 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-8 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 1 | 1 | 1 | 1 |
| Final particle size(mm) | 8-14mm | 8-14mm | 8-14mm | 8-14mm |
Detailed Photos
