Product Details:
Payment & Shipping Terms:
|
| Name: | HDPE Pipe Hose Shredding Machine | Application: | Turn Big Wastes To Small Size |
|---|---|---|---|
| Shaft Design: | Single Shaft | Blades Material: | SKD11 Or DC53 |
| Processed Material: | PP PE Blocks, HDPE Pipes Hoses, Film Bags In Bales | Mesh Size: | 30mm~100mm |
| Main Motor: | 37-55KW | Keywords: | Plastic Shredder Machine |
| High Light: | SS 800 HDPE Plastic Shredder Machine,SKD11 Plastic Shredder Machine,SKD11 plastic bottle shredder machine |
||
Waste Large HDPE Pipe Hose Shredding Machine Plastic Shredder Machine
Description:
Plastic Shredder Machine
Through the interaction between the rotor blades and the fixed fixed blades in the shredder machine, the single shaft waste plastic shredder machine can shred, cut, and squeeze materials into small sizes. It can be used to crush various materials, including plastic materials like thick-wall plastic sheet, pipe, rubber, film, plastic tray, carpets, wood, kitchen and domestic waste.
The cutter head is composed of a spindle and multiple quadrilateral cutters. There are four sides could be applied and easy to change.
The V-shaped rotary tool is fixed on a single shaft. The fixed blades are installed on adjacent rotating knives at an angle to achieve better cutting. The material is repeatedly shredded between the "V"-shaped rotating cutter and the fixed cutter.
During the grinding process, the "V"-shaped rotor blades are installed to ensure uniform cutting, save energy and reduce noise. Moreover, the blades are also very easy to install and remove.

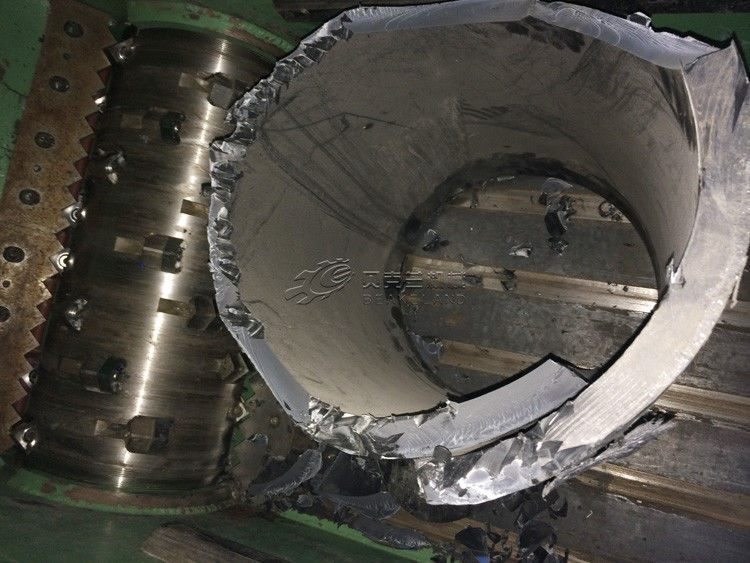

Details Photo:
Applications:
Plastic lump, plastic purgings, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, industrial waste paper, wood pallet, circuit board, aluminum material, copper material, wire, cable, etc.
before After
Features of Plastic shredder Machine:
▶Low rotation speed
▶High torque gearbox
▶ Electrical overloading protective,
▶Compact structure
▶PLC program control system
Main technical parameter of Plastic shredder Machine:
| Shredder Model | SS600 | SS800 | SS1000 | SS1200 | SS1500 |
| Rotation diameter | 260 | 355 | 355 | 420 | 480 |
| Rotation speed(rpm) | 80 | 80 | 80 | 80 | 80 |
| Rotary blades(pcs) | 26/40 | 38/56 | 46/68 | 68/80 | 78/92 |
| Fixed blades(pcs) | 1 | 2 | 2 | 3 | 3 |
| Hydraulic Station Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Oil cylinder stroke(mm) | 750 | 850 | 1050 | 1200 | 1400 |
| The use of pressure(Mpa) | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 |
| Crushing capacity(kg/h) | 250~400 | 250~450 | 300~600 | 500~1000 | 600~1200 |
| Feeding caliber(mm) | 550*650 | 700*900 | 880*1100 | 1070*1150 | 1280*1300 |
| Power of main motor(kw) | 22/30 | 37/55 | 55/75 | 75/90 | 90/110 |
| Machine weight(kg) | 2500 | 3700 | 4800 | 5500 | 6800 |
| Dimension(L*W*H)(cm) | 240*140*190 | 300*160*225 | 340*170*250 | 380*220*290 | 420*300*330 |
More Photos for Single shaft shredder / Plastic Shredder Machine:
