| Name: | Double Rotor Shredder | Plastic Type: | PP/PE,PET,PP,PVC,ABS,PS,PC Ect |
|---|---|---|---|
| Blades Material: | 9Crsi, SKD11,DC53 | Application: | Recycle Waste Plastic Film Bags Mainly |
| Usage: | Waste Plastic Cusher | Motor Power: | 75KW+75KW |
| Keywords: | Plastic Shredder Machine | Control: | Siemens PLC Control |
| High Light: | DSS1200 twin shaft shredder machine,DC53 twin shaft shredder machine,DC53 dual shaft shredder |
||
Plastic Bags Film Double Rotor Shredder Plastic Shredder Machine
Description:
DSS series Plastic Bags Film Double Rotor Shredder takes advantage of single shaft shredder and double shaft shredder. Firstly, instead of using stacked cutters(disk knives), this shredder adopts two rotors from one shaft shredder. The 2 rigid and heavy rotors bring twice the torque and crushing ability for you.
Secondly, the two rotors contra-rotate like a double shaft shredder. Once objects fall into the shredding chamber, the two rotors tear down the objects.
As double rotor shredder equips with screens, you can get uniform particle size.
In a harsh environment, the shredding machines can maintain good stability and reliability. 2 types of shredder rotor can be selected according to material characteristics.
Main technical parameter:
| Shredder Model |
DSS600 |
DSS800 |
DSS1000 |
DSS1200 |
DSS1500 |
| Rotation diameter |
280*2 |
350*2 |
350*2 |
400*2 |
480*2 |
| Rotation speed(rpm) |
80 |
80 |
80 |
80 |
80 |
| Rotary blades(pcs) |
80 |
112 |
46/68 |
68/80 |
78/92 |
| Fixed blades(pcs) |
8 |
8 |
8 |
12 |
12 |
| Crushing capacity(kg/h) |
500~800 |
800~1200 |
1000~1500 |
1500~2500 |
2500~3500 |
| Feeding caliber(mm) |
600*900 |
800*1000 |
1060*1030 |
1260*1030 |
1660*1100 |
| Power of main motor(kw) |
30×2 |
37×2 |
55×2 |
75×2 |
90×2 |
| Machine weight(kg) |
3500 |
5500 |
6000 |
7000 |
9000 |
Applications :
Plastic: Plastic sheet, PE and LDPE film, PP big bag
Wood: Wood waste, wood pallet, residue
Paper: Newspaper, magazine, document
Material before Material After
Features:
1. compact structure. Two rotors in one machine.
2. Unique parallel double rotor shredding system, synchronous centripetal rotating, ensure sgredding coordination and stability.
3. Rotor knife adopts four angles structure, perfecyly matched with serration fixed knife. Realize high capacity and small output size.
4. Equipped with two independent power system, low rotation rate and high torque, avoid winding and stuck.
5. Electrical system adopts PLC program, features start, stop, reverse functions along with automatic overload return mechanism to prevent damage to working parts. Lower labor intensit and longer machine service life

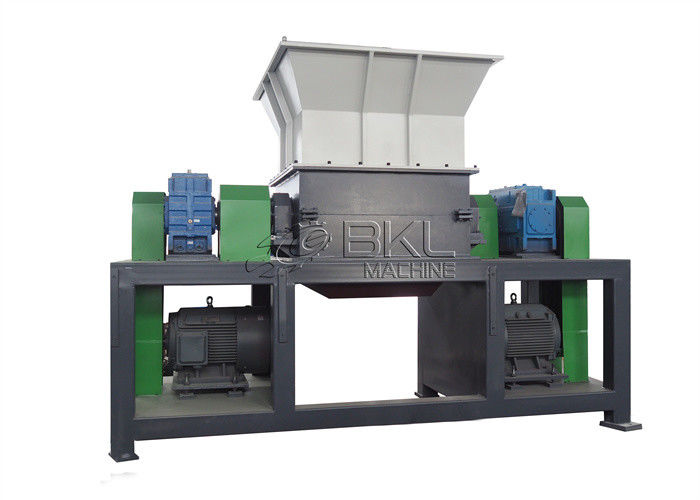

Photos for Two rotor shredder / Plastic Shredder Machine:
