Product Details:
Payment & Shipping Terms:
|
Product Name: | Twin Shaft Plastic Shredder Machine | Application: | Recycle Waste Plastic |
---|---|---|---|
Shaft Design: | Double Shaft | Blades Material: | Special Alloy Steel |
Processed Material: | Plastic Flexible Film ,hollow Drum,containers,bottles | Main Motor: | 22KW*2 |
Key Words: | Double Shaft Shredder,Plastic Shredder Machine | Core Components: | Motor, Gear, Engine |
High Light: | DS800 Plastic Shredder Machine,22KW Plastic Shredder Machine,22KW shaft shredder machine |

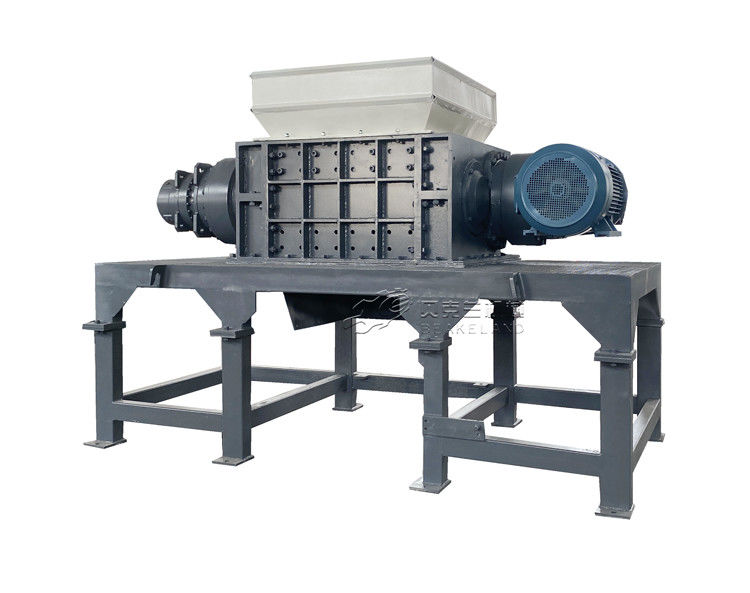

Plastic Wood Tire Metal Fabric Twin Shaft Plastic Shredder Machine
Description:
DS series Twin Shaft Plastic Shredder Machine is a kind of heavy duty shear type size reduction machine. They adopt to PLC automatic control for start,stop, reversion and overload reversion.
DS Series double shaft shredders can handle a wide range of solid waste. Compared to single shaft shredder, this series has lower speed, higher torque, and higher efficiency.
Because the shredder is screen less, it is often used as primary shredding, and its shredded particle size depends on the blade thickness.
• MSW, industry waste, wood, paper, tires, plastics, carpet, textile, etc. • Metal materials: Aluminum, ferrous, non-ferrous, steel drums, waste automotive, etc. • Electronics: WEEE, electronic equipment, waste household appliances, etc.
Main technical parameter of Twin Shaft Plastic Shredder Machine:
Model |
Power(KW) |
Blades thickness(mm) |
Rotary diameter(mm) |
Capacity approx.(kg/h) |
DS600 | 22×2 | 25mm~100mm | ф300mm | 500-800 |
DS800 | 30×2 | 25mm~100mm | Ф460mm | 1000-1200 |
DS1000 | 37×2 | 25mm~100mm | Ф460mm | 1200-2000 |
DS1200 | 45×2 | 25mm~100mm | Ф520mm | 1800-2500 |
DS1400 | 55×2 | 25mm~100mm | Ф520mm | 2000-3000 |
DS2000 | 75×2 | 25mm~100mm | Ф520mm | 2500-4000 |
More Photos:
