Product Details:
Payment & Shipping Terms:
|
| Name: | PP PE Bags Crushing Washing Drying Line | Processing Steps: | Crushing-Washing-Drying |
|---|---|---|---|
| Production Capacity: | 500-600kg/h | Application Material: | PP PE BOPP LDPE HDPE Film, Bags,fabric |
| Moisture Of Products: | 5-10% | Plastic Type: | PP\PE,PP PE HDPE LDPE BOPP |
| Crushing Motor: | 55KW | Final Product: | Clean Flakes,Clean Film Scrap |
| Keyword: | PP PE Bags Crushing Washing Drying Line | ||
| High Light: | BOPP Plastic Recycling Lines,55KW Plastic Recycling Lines,BOPP pet bottle flakes making machine |
||
PP PE Bags Crushing Washing Drying Line Of Plastic Recycling Lines
Description:
PP PE Bags Crushing Washing Drying Line is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
Main processing steps include: Crushing-Washing-Drying-Packing.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE Bags Crushing Washing Drying Line could layout as "L", “S” or "U" shape according different workshop.
Main components of Plastic Recycling Lines
| No. | Machine name | Function |

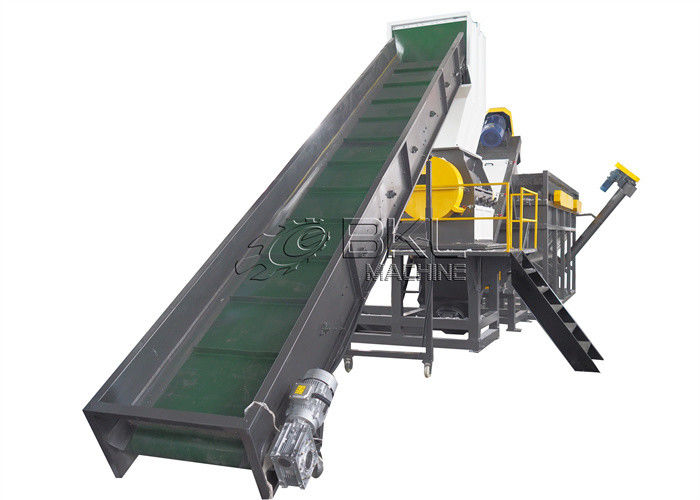

| 1 | Belt conveyor | For waste material feeding automatically. |
| 2 | Shredder | For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs. |
| 3 | Crusher/Granulator | Wet crushing system.It used for material size reduction and pre-washing. |
| 4 | Low speed friction washer | For material conveying to next washing steps. 720rpm rotating speed could pre-washing the material with a good effect. |
| 5 | Screw loader | For material conveying to next stage. |
| 6 | Sink & Float separation tank | for impurities precipitating separation and wash the material more clean. |
| 7 | High speed Friction washer( Scrub washing machine) |
It could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing.
|
| 8 | Dewatering machine(Centrifugal dryer) | This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently. |
| 9 | Hot air drying system | For further material drying and transportation to final packing system |
| 10 | Film Squeezer dryer | Replace the traditional centrifugal dryer above.It could turn washed film to granulas pieces directly which could increase pelletizing capacity further. |
| 11 | Storage silo | For material storage and packing |
| 12 | Electrical control cabinet | Electrical parts brand customized. |
Technical parameter of Plastic Recycling Lines
For soft PP / PE BOPP LDPE:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
Product features of the Plastic Recycling Lines
| 1 | High working efficiency, less energy consumption; high automation, less power. |
| 2 | Long life, machine material is SUS304 stainless steel. |
| 3 | Wet crusher. Crush the plastic with water. SKD-11 blade material. |
| 4 | By multiple friction washing, rinsing washing and hot washing, the dirty such oil contamination and mud can be washed out fully. |
| 5 | Reasonable flowchart design for convenient operation and lower maintenance cost. |
| 6 | Good drying result. Final plastic moisture is less than 3%. |
Detailed Photos
