Product Details:
Payment & Shipping Terms:
|
| Name: | Recycle Plastic Machine | Application: | PET Bottle Recycle |
|---|---|---|---|
| Production Capacity: | 500kg / H | Voltage: | 380V,50HZ,3P(customized) |
| Products Moisture: | 1 - 2% | Main Processing: | Sorting Crushing Washing Drying |
| Impurity: | 100 - 300 Ppm | Keyword: | PET Recycling Equipment |
| High Light: | 500KG/H pet bottle recycling machine,150kw pet bottle recycling machine,500KG/H plastic pelletizing machine |
||

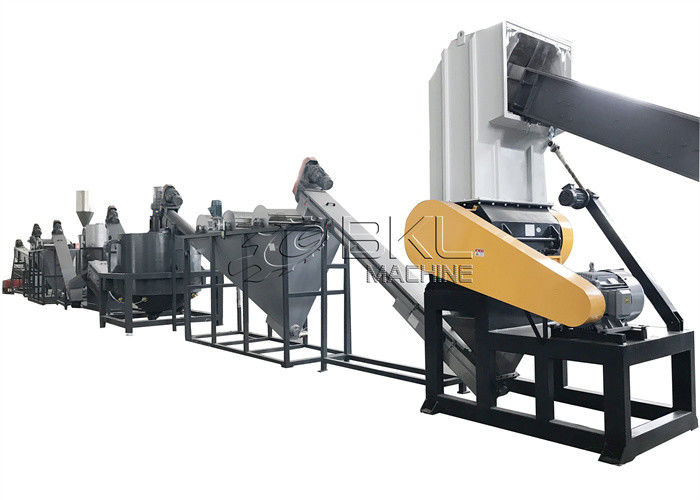

Recycle Plastic Machine PET Recycling Equipment Plastic Recycling Lines
Despriction:
Post-consumer PET bottles are doubtless among the most important components of the recycling market. Recycled PET may be used in a wide variety of final applications, with very interesting and remunerable financial returns for the recycling companies.
The waste PET recyclig equipmet is used for crushing, cleaning, separation of PET bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET materials.
We have several different standards of PET bottle crushing washing recycling machine line according to different production capacity and requirement for cleaning (capacity of 300-3000kg/h).
Models&specifications:
| Model | BKL-500 | BKL-1000 | BKL-1500 | BKL-2000 | BKL-3000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Installation Power (kw) | 150 | 250 | 300 | 400 | 500 |
| Labor | 2-4 person | 3-5 person | 5-6 person | 6-8 person | 8-12 person |
Components of a typical PET bottle recycling line:
| Belt conveyor | For waste material infeeding |
| Bale Breaker | opens the tight bales of PET bottles |
| Trommel screen | separate heavy stones, caps, sand or other small contamination down |
| Pre-washing machine | Pre -Washing the whole bottle surface |
| Label remover | Remove 95% lables on bottles before crushing |
| Sorting belt | sorting the dirties out before granulating. |
| Metal Detector | detects metal contamination |
| Granulator / Crusher | Wet crushing bottles to flakes size |
| Screw conveyor | Conveying material to downstream machines |
| High speed Friction washer | Scrub washing and cleaning flakes |
| Single screw or double screw washing tank | flakes floating washing and conveying. |
| Hot Washing Tank/ steam washer | Hot wash with detergent for clean flakes and remove glue |
| Horizontal dewatering machine ( Dehydrator ) | Dehydrate flakes to dry flakes |
| Second granulator (optional) | Crush flakes to final size required. |
| Zig-Zag label separato (air classifier) | separate labels in the crushed flakes. |
| Wind conveying system | Material transport and bagging |
| Control cabinet | control the whole system intensively. |
Final PET products quality for reference:
Machine line Features:
Detailed Photos:
Debaler
Sorting conveyor
Crusher
