Product Details:
Payment & Shipping Terms:
|
| Name: | Plastic Granulating Pelletizing Line | Screw Design: | Single Screw Extruder |
|---|---|---|---|
| Stage: | Single Stage | Material Type: | PP PE LDPE HDPE Flakes |
| Capacity: | 300- 450 KG / H | First Stage Motor: | 132KW |
| Screw Diameter: | 130mm | Keyword: | Single Screw Extruder |
| High Light: | LDPE HDPE Pelletizing Machine,132KW HDPE Pelletizing Machine,132KW single screw extruder machine |
||
Plastic Flakes Single Screw Extruder Plastic Granulating Pelletizing Line
Description:
This Plastic Flakes Single Screw Extruder Plastic Granulating Pelletizing Line with international advanced recycling technology and combined with the actual application condition. It is design specializes for recycling the recycled washed plastic PP PE rigid plastic flakes, such as plastic milk bottle flakes, shampoo bottle flakes, medicine bottle flakes, pe drinking bottle flakes, plastic basin flakes, plastic bucket flakes, etc.
After processing techniques such as feeding, heating, melt, cooling, drying, cutting etc., the final products are PP PE plastic pellets, granules that can be further to produce plastic chair, plastic profile, plastic bottle, drainage pipes, plastic sheet etc.
Working flow of Plastic granulating Line:
Screw feeder → efficient extruder → non-stop hydraulic screen filter changer → second stage extruder → hydraulic screen filter changer → die head →water cooling → strand cutting(watering cutting) → blower → storage hopper → electric control panel
Advantages:
Technicial specificaions for Single screw extruder plastic granulating pelletizing line:
| Machine | SJ90 | SJ100 | SJ120 | SJ130 | SJ150 | SJ160 | SJ180 |
| Capacity(kg/h) | 100-150 | 150-250 | 200-300 | 300-400 | 400-550 | 600-750 | 800-1000 |
| Screw(mm) | 90 | 100 | 120 | 130 | 150 | 160 | 180 |
| Main motor(kw) | 55 | 75 | 90 | 132 | 160/185 | 185/220 | 250 |
| L/d | 33 | 33 | 33 | 35 | 35 | 35 | 35 |
| Screw max speed | 120rpm | 120rpm | 90rpm | 90rpm | 90rpm | 90rpm | 90rpm |
| Total power consumption | 50kwh | 60kwh | 70kwh | 90kwh | 115kwh | 135kwh | 185kwh |
| Delivery time | 50-55day | 50-55day | 50-55day | 50-55day | 50-55day | 50-55day | 50-55day |
| Workers | One | One | One | Two | Two | Two | Two |

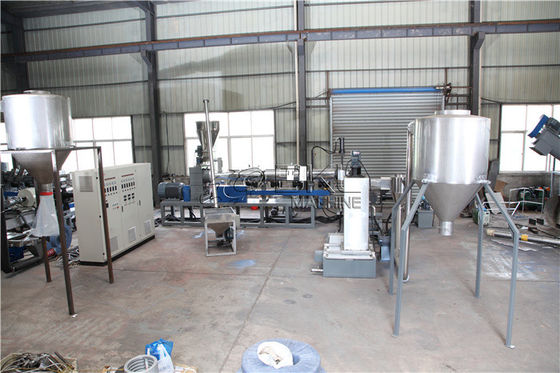

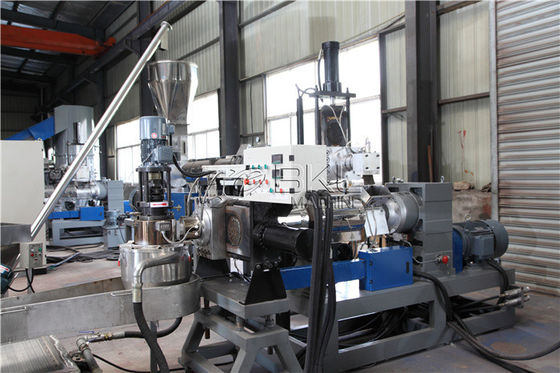

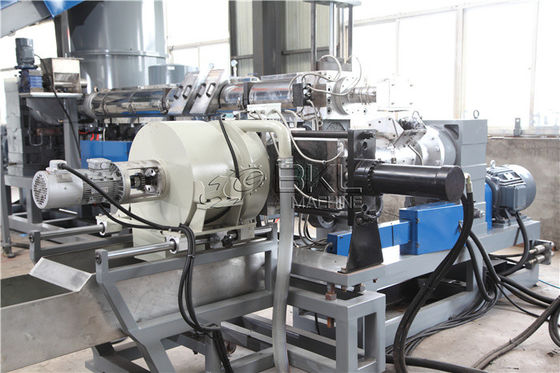

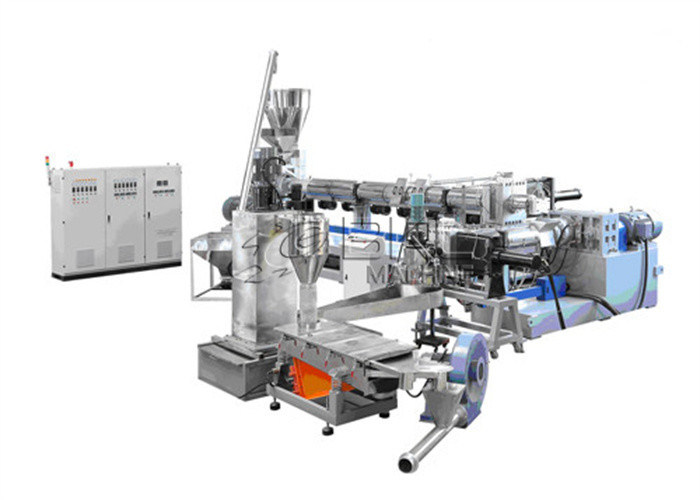

More Images:
