Product Details:
Payment & Shipping Terms:
|
| Machine: | PET Granulating Line | Screw Design: | Twin Screw Extruder |
|---|---|---|---|
| Stage: | Single Stage | Raw Material: | PET Flakes |
| Capacity: | 300 - 400 KG / H | Main Motor: | 75-110 KW |
| Keyword: | Plastic Granulating Line | Final Products: | φ3mm* 3mm Pellets |
| High Light: | Single stage twin screw extruder machine,400KG H twin screw extruder machine,400KG H PET Granulating Line |
||

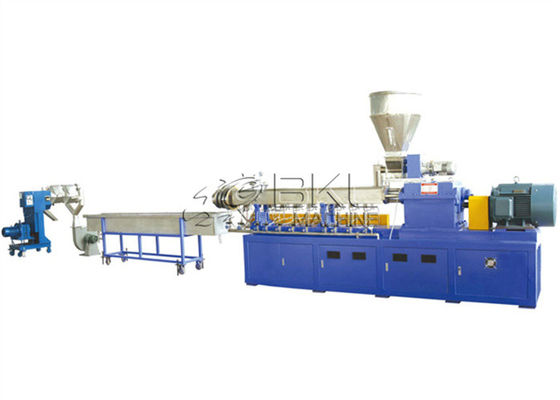

Twin Screw Extruders PET Granulating Line Plastic Granulating Line
Description:
PET pelletizing line is applied in recycled PET flakes pelletizing field.As most recycled PET flakes are used for producing polyester fibers. We
leave the PET pelletizing equipment for produce beautiful PET pellets for option after our washing process.
Our PET granulating line is consists of a feeder,twin screw extruder (double screw extruder),strand pelletizer(Granulator) ,Storage silo.
From feeding system to final products, we can design and work out a PET Flakes Pelletizing Machine complete system to satisfy all of your production requirements.We will provide you with a PET pelletizing system in good quality and price as per your requirements.
Flow Process for a PET Granulating Line:
Conveying feeding→metal detector → parallel twin screw extruder → bipolar vacuum exhaust system → hydralic screen exchanger → material outing mould → water tank → drying system → cutting granulating unit → storage hopper
Technical parameters:
|
Model |
Screw diameter (mm) |
L/D |
Capacity (kg/h) |
Main motor power(kw) |
|
TSSK65 |
63 |
32-62 |
200-300 |
45-75 |
|
TSSK75 |
72 |
32-64 |
300-400 |
75-160 |
|
TSSK95 |
92 |
62-64 |
400-800 |
132-250 |
More Photos:
