Product Details:
Payment & Shipping Terms:
|
| Name: | Plastic Mixer Dryer | Material: | Stainless Steel 304 |
|---|---|---|---|
| Heating Power: | 24KW | Volume: | 1000L |
| Lifting Power: | 2.2KW | Blower Power: | 1.1KW |
| Keyword: | Plastic Mixing Machine | ||
| High Light: | 1000L plastic dryer machine,24KW plastic dryer machine,1000L high speed mixer for pvc compounding |
||

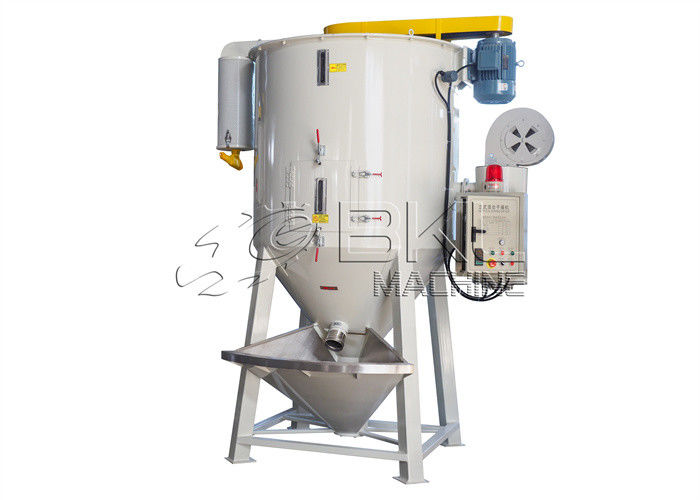

Lifting Mixing Dryer Plastic Mixer Dryer In Plastic Mixing Machine
Description
Plastic Mixer Dryer is a kind of lifting mixing dryer machine which is widely used in mixing,drying,coloring for all kinds of resin such as PVC,PP,PE.
1. The lifting mixing dryer includes two stages of spiral rapid transports. The first stage is to move the raw material to the barrel. The second stage is lift the material to the top of barrel rapidly and scatter it out like umbrella shape. Hot wind will blow upwards and penetrate the raw material,dynamic drying with complete heat exchange is conducted.
2.When the raw material in the barrel is rolling,hot wind is constantly blowing from the center, so mixing and drying is synchrionously conducted, This saves time and power. This machine could use the mixing function alone by turn off the hot air heating if the material is dry enough.
3.The barrel body, spiral vanes, shaft, cylinder, support frame and the parts which touch the raw material are all made of stainless steel.
Specification Parameters:
| Model | HG500 | HG1000 | HG2000 | HG3000 | HG4000 |
| Volume | 1000L | 2000L | 4000L | 6000L | 8000L |
| Capacity(kg/h) | 500 | 1000 | 2000 | 3000 | 4000 |
| Lift Screw Motor(kw) | 2.2 | 3 | 4 | 5.5 | 5.5 |
| Lift Screw Diameter(mm) | 219 | 219 | 273 | 273 | 273 |
| Lift Screw Blade Thickness (mm) | 3 | 3 | 3 | 3 | 3 |
| Principal Axis Size(mm) | 60×4 | 60×4 | 60×4 | 60×4 | 60×4 |
| Wall Thickness(mm) | 2 | 2 | 2.5 | 3 | 3 |
| Center Bearing Bracket Size(mm) | 32 | 32 | 38 | 38 | 38 |
| Lift Screw Speed(rpm) | 320 | 320 | 320 | 320 | 320 |
| Blow Motor(kw) | 1.1 | 1.5 | 2.2 | 3 | 3 |
| Heating Power(kw) | 24 | 36 | 42 | 48 | 48 |
| Overall Size(Dia x H)(mm) | Ø1100×2450 | Ø1300×2750 | Ø1600×3400 | Ø1910×3600 | Ø2100×4000 |

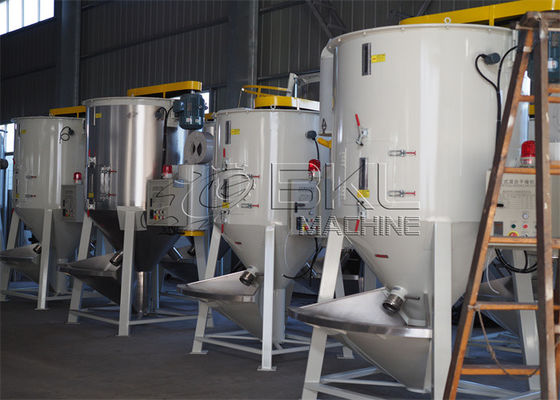

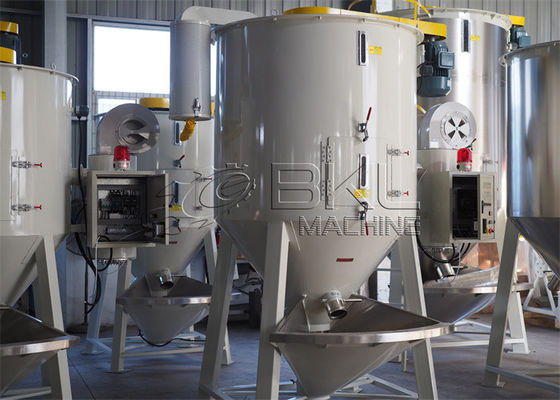

More photos:
