Plastic Grinding Milling Machine PP PE Pulverizer Machine
Description:
The PP PE Pulverizer Machine of the MF series are available with disc diameter from 300 to 800 mm. These plastic PP PE pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.

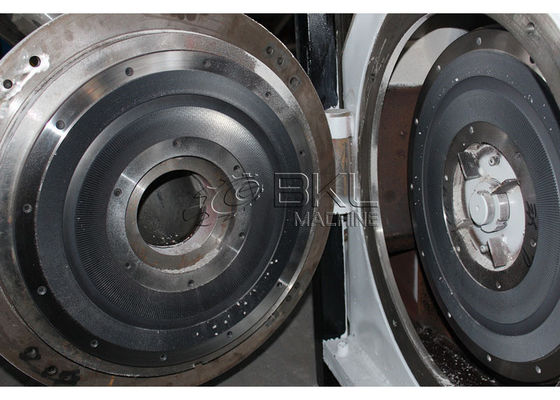

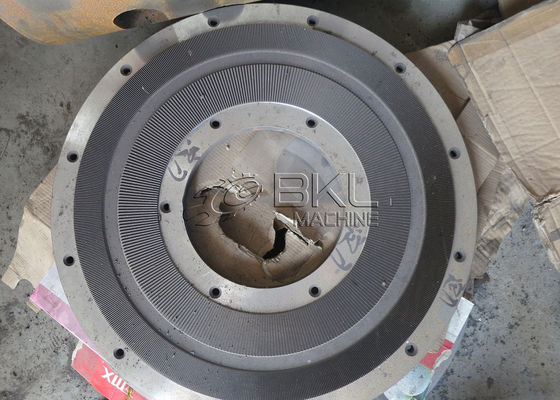

The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

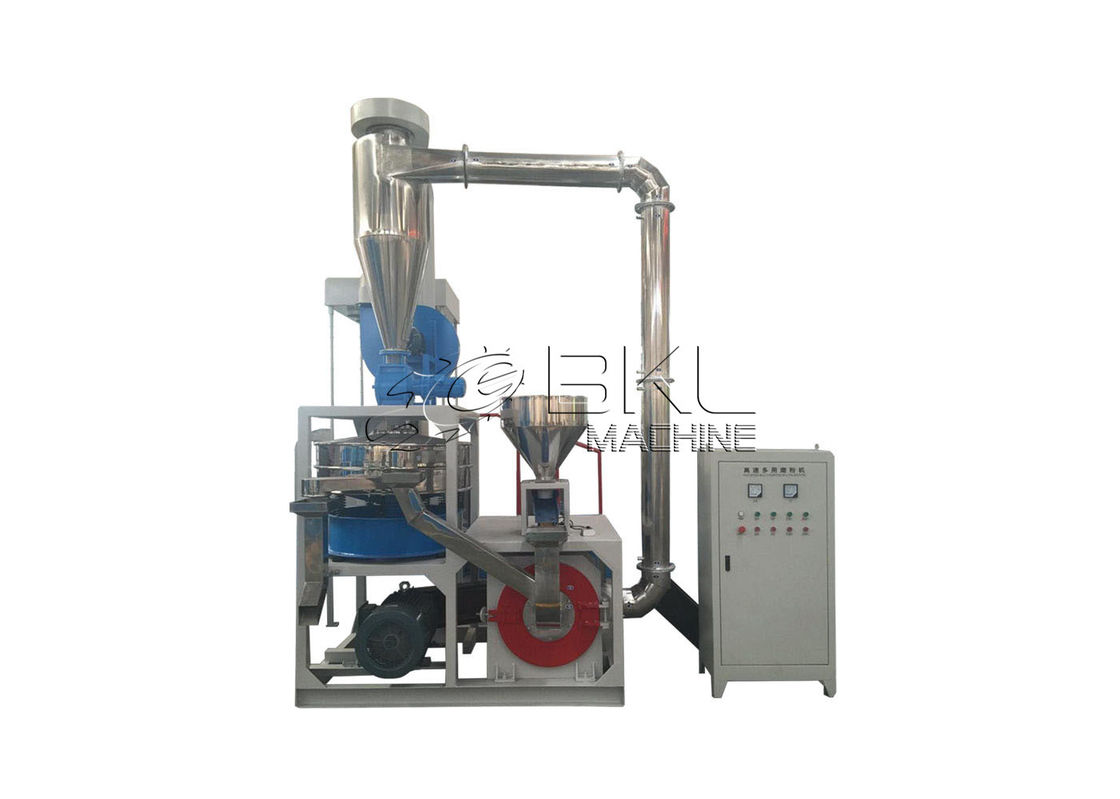

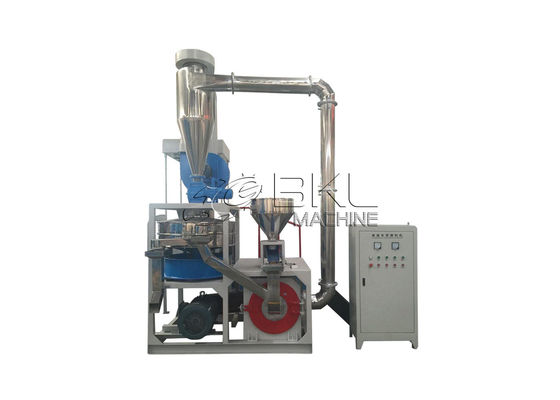

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Main features of PP PE pulverizer machine(Disc type):
1. Simple adjustment of cutting gap.
2.Choice of discs type and turbo type
3.Low power consumption, high capacity
4.Simple structure and easy installation.
5.Host with the wind ,water circulation cooling system.
6.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA, PC, PS,PET, PP etc.
(Disk balde type) PP PE pulverizer machine specification:
| Model |
MF-400 |
MF-500 |
MF-600 |
MF-800 |
| Blade disc size |
400mm |
500mm |
610mm |
800mm |
| Blade Disc quantity |
2 pieces |
2pieces |
2 pieces |
2 pieces |
| Main motor power |
30kw |
37kw |
45kw |
55kw |
| Blower power |
3kw |
4kw |
5.5kw |
7.5kw |
| Flow valve power |
0.75kw |
0.75kw |
0.75kw |
1.1kw |
| Powder size |
10-100mesh |
10-100mesh |
10-100 mesh |
10-100 mesh |
| Cooling method |
Air cooling & water cooling |
| Capacity |
80-120kg/h |
150-250kg/h |
250-350kg/h |
350-500kg/h |
