Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer

Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer
Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer

Large Image :  Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: BEAKELAND
Certification: CE
Model Number: SMF500

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Delivery Time: 20-50 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 80 SETS/YEAR
Contact Now
Detailed Product Description
Name: Plastic Pulverizing Machine Application Material: PVC
Mill Blade Design: Rotary Type Vibration Sieve: Stainless Steel 304
Cooling: Wind Cooling Or Water Cooling Bearing Brand: Imported Brand
Usage: Mill Plastic Flakes To Powder Size Keyword: Plastic Power Mill Machine
High Light:

ss304 Plastic Pulverizing Machine

,

SMF 500 Plastic Pulverizing Machine

,

SMF 500 mill power pulverizer

Plastic Power Mill Machine Plastic Pulverizing Machine

Description:

PVC Plastic Pulverizing Machine is used in PVC recycling industry for grinding of PVC plastic material,These Plastic Power Mill Machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.Adopts high quality tooling steel ,have the advantages of durable ,high resistance ,movable ,reliable performance and long uselife, and blade designed drawing acceptable.

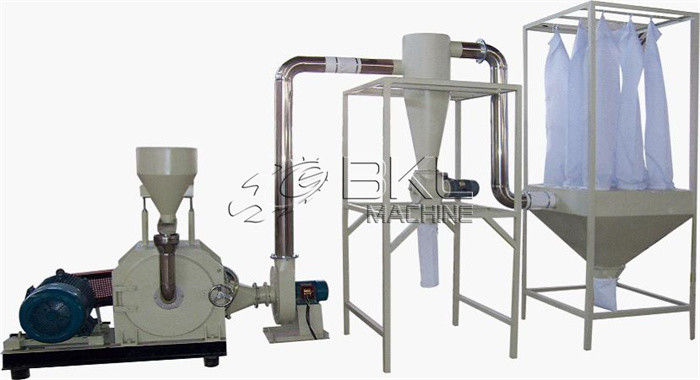

The Plastic Power Mill Machine is mainly composed of electric motor, rotary type blade, feeding fan, vibrating sieve, dust removing system, etc.

According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

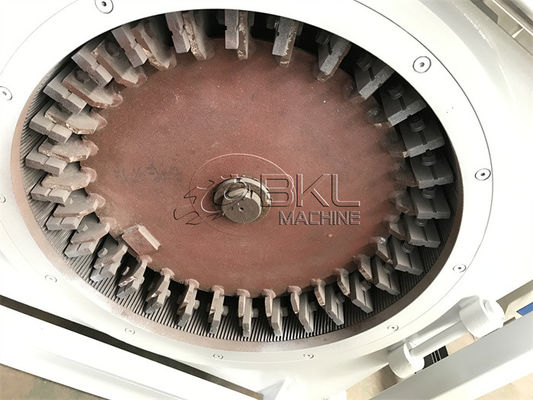

Main features of Plastic Power Mill Machine(Rotor type):

1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the machine body.



Rotor blade type Plastic Pulverizing Machine specification(for PVC)



Model SMF-500 SMF-600 SMF-800
Motor power (kw) 37kw 45/55kw 75kw
Blow power (kw) 3kw 5.5kw 11kw
Voltage 380V, 50Hz (or according to customer)
Total power 41kw 52kw 90.5kw
Blade Dia. 500mm 600mm 800mm
Feeding material size Below 10mm Below 10mm Below 10mm
Output size 40-80mesh 40-80mesh 40-80mesh
Vibration model ZDS-800 ZDS-1000 ZDS-1200
Capacity 200-300kg/h 300-500kg/h 500-600kg/h

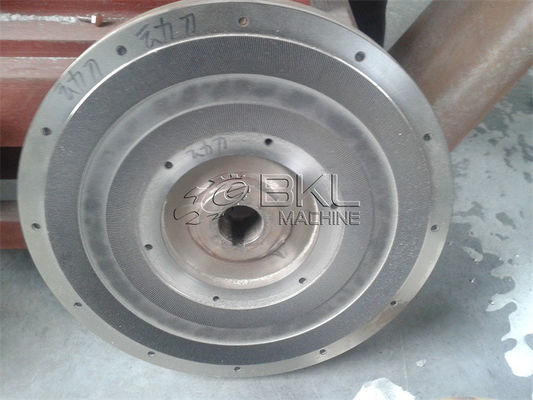

Main features of Plastic Pulverizing Machine(Disc type):

1. Simple adjustment of cutting gap.
2.Choice of discs type and turbo type
3.Low power consumption, high capacity
4.Simple structure and easy installation.
5.Host with the wind ,water circulation cooling system.
6.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA, PC, PS,PET, PP etc.



(Disk balde type) Plastic Pulverizing Machine specification:



Model MF-400 MF-500 MF-600 MF-800
Blade disc size 400mm 500mm 610mm 800mm
Blade Disc quantity 2 pieces 2pieces 2 pieces 2 pieces
Main motor power 30kw 37kw 45kw 55kw
Blower power 3kw 4kw 5.5kw 7.5kw
Flow valve power 0.75kw 0.75kw 0.75kw 1.1kw
Powder size 10-100mesh 10-100mesh 10-100 mesh 10-100 mesh
Cooling method Air cooling & water cooling
Capacity 80-120kg/h 150-250kg/h 250-350kg/h 350-500kg/h



More photos:



Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 0Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 1Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 2Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 3

Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 4

Ss304 Plastic Pulverizing Machine SMF 500 Mill Power Pulverizer 5
