PVC Pulverizer PVC Milling Pulverizer Grinding Pulverizer Machine
Description:
PVC Grinding Pulverizer Machine is used in PVC recycling industry for grinding of PVC plastic material,These PVC Milling Pulverizers are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.Adopts high quality tooling steel ,have the advantages of durable ,high resistance ,movable ,reliable performance and long uselife, and blade designed drawing acceptable.

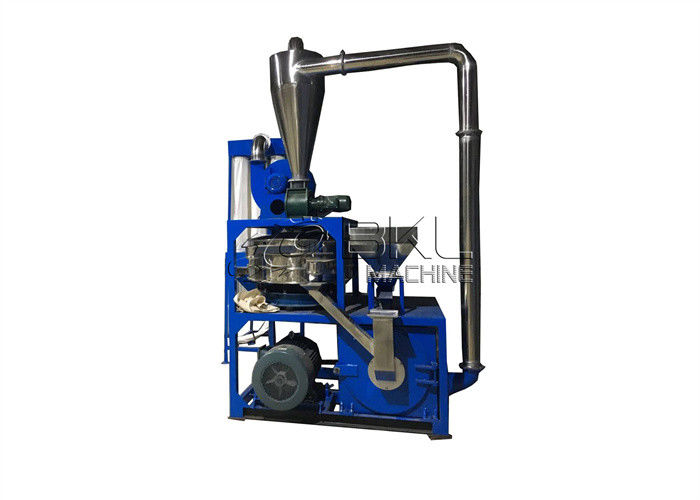

The PVC Pulverizer machine is mainly composed of electric motor, rotary type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Main features of PVC Milling Pulverizer (Rotor type):
1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the machine body.
Rotor blade type Grinding Pulverizer Machine specification(for PVC)
| Model |
SMF-500 |
SMF-600 |
SMF-800 |
| Motor power (kw) |
37kw |
45/55kw |
75kw |
| Blow power (kw) |
3kw |
5.5kw |
11kw |
| Voltage |
380V, 50Hz (or according to customer) |
| Total power |
41kw |
52kw |
90.5kw |
| Blade Dia. |
500mm |
600mm |
800mm |
| Feeding material size |
Below 10mm |
Below 10mm |
Below 10mm |
| Output size |
40-80mesh |
40-80mesh |
40-80mesh |
| Vibration model |
ZDS-800 |
ZDS-1000 |
ZDS-1200 |
| Capacity |
200-300kg/h |
300-500kg/h |
500-600kg/h
|
Core patents of the PVC Pulverizer:
1: Grinding chamber; Cutter head and grinding disc are air-cooled and water-cooled, especially suitable for processing thermoplastic materials;
2: Transmission device of the pulverizer; Adopts European-style belt wheel, high-speed operation is not loose, and it is more convenient for daily maintenance;

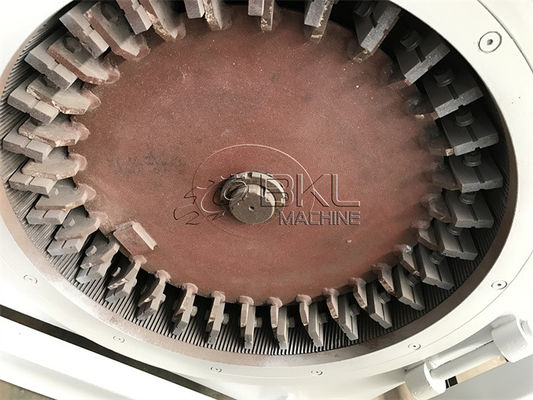

3: Pulverizer blade; PVC cutter head is made of wear-resistant steel material, special tooth shape design, double the service life; the frequency of use of the cutter head is determined according to the material, usually grinding to 400 tons needs to be replaced. (Depending on the blade wear condition);
4: Fully automatic, automatic feeding, discharging and sorting;

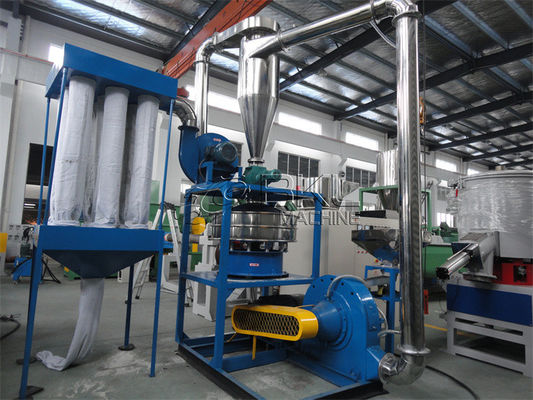

More photos:
