PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic

PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic
PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic

Large Image :  PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: BEAKELAND
Certification: CE
Model Number: SRL-Z200/500

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Delivery Time: 30-50 WORKING DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets/Year
Contact Now
Detailed Product Description
Name: High Speed Mixer Machine Application: Plastic Raw Material Mixing
Total Volume: 300 / 600L Typical Mixing Type: PVC Power Mixing
Motor Power: 40/55/11 Mixing Type: High Speed Mixing-Cooling Mixing
Automatic Grade: Automatic Mixing Time: 8-12 Min
Material For Internal: Stainless Steel Keyword: PVC Powder Mixing Machine
High Light:

600L Plastic Mixing Machine

,

PVC Powder Plastic Mixing Machine

,

600L high speed mixer for plastic

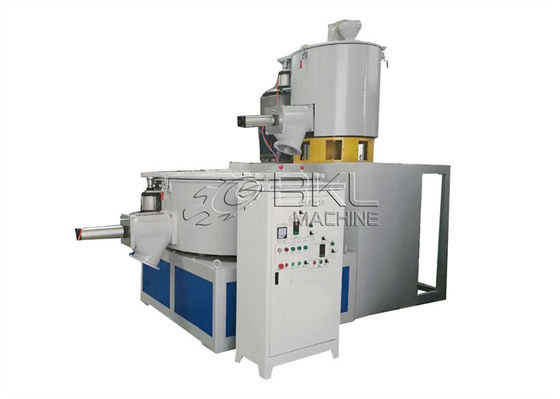

Heating And Cooling PVC Powder Mixing Machine High Speed Mixer Machine

Description:

SRL-Z series Heating And Cooling PVC Powder Mixing Machine are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from high speed mixer machine (hot mixer) is fed into cooling mixer for cooling to eliminate gas and avoid burning.

Working principle :

The motor directly drives the main shaft to rotate through the belt wheel and the reduction box. The rotating blades with special shapes installed on the main shaft rotate accordingly. Under the action of centrifugal force, the material rises along the tapered wall of the fixed mixing tank and is in a state of reversing motion. , Forming a kind of swirling motion, for materials of different densities, it is easy to mix uniformly in a short time, and the mixing efficiency is more than twice that of ordinary mixers.

Mixed material Application:

Plastic plates,pipe,special-shaped profiles and degradation plastics. PVC powder Mixing.

Vertical type High Speed Mixer Machine:

Model
Total volume
Available capacity
Motor power
Shaft speed
Heating method
SHR-5A
5L
3L
1.1Kw
1400rpm
Self friction/electric
SHR-10A
10L
7L
3Kw
2000rpm
SHR-25A
25L
20L
5.5Kw
1440rpm
SHR-50A
50L
35L
7/11Kw
750/1500rpm
SHR-100A
100L
75L
14/22Kw
650/1300rpm
SHR-200A
200L
150L
30/42Kw
475/950rpm
SHR-300A
300L
225L
40/55Kw
475/950rpm
SHR-500A
500L
375L
47/67Kw
430/860rpm
SHR-800A
800L
600L
60/90Kw
370/740rpm

Vertical type High Speed Mixer Machine:

Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
SRL-Z800/1600
Total volume
100/200
200/500
300/600
500/1000
800/1600
Effective volume
75/160
150/320
225/400
375/650
600/1050
Shaft speed
650/130/180
475/950/130
475/950/60
430/860/60
370/740/50
Heat method
Self friction/electric
Cooling method
Water
Mixing time
6-10
6-10
6-10
6-10
8-12
Motor power
14/22/7.5
30/42/7.5
40/55/11
55/75/11
110/30

Horizontal type High Speed Mixer Machine:

Model
SRL-W500/1600
SRL-W800/2000
SRL-W800/2500
SRL-W800*2/4000
Total volume
500/1600
800/2000
800/2500
1600/4000
Effective volume
330/1000
560/1400
600/1500
1120/2700
Shaft speed
430/860/70
330/660/55
330/660/60
350/700/65
Heat method
Self friction/electric
Cooling method
Water
Mixing time
8-12
8-12
8-12
8-12
Motor power
55/75/22
86/110/22
86/110/22
110*2/30





PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic 0PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic 1PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic 2PVC Powder Plastic Mixing Machine 600L High Speed Mixer For Plastic 3
