| Name: | High Speed Friction Washing Machine | Processed Material: | PP PE PET PS ABS PC Ect. |
|---|---|---|---|
| Capacity: | 500~3000kg/h | Motor Power: | 15~37KW |
| Material: | Part Contact With Material Are SS304 | Application: | Machine In Plastic Recycling Washing Line |
| Function: | Strong Friction Washing For Dirty Plastics | Mesh Tunnel: | Stainless Steel |
| Keywords: | Friction Washer Machine | ||
| High Light: | PET flakes pe film washing line,woven bags pe film washing line,woven bags Plastic Recycling Machine |
||
Plastic Recycling Machine High Speed Friction Washing Machine
Description :
High Speed Friction Washing Machine,We also called friction scrub washing nachine, is a high effictive washing equipment in a plastic recycling machine plant no matter for PP PE flakes, films, woven bags or PET flakes washing. It forces the plastics to rub against each other at a high speed. The material plastics is continuously spun against the mesh screen.This causes a immense amount of pressure and friction where containants such as dirt,paper,lables are effectively loosened and pass through the mesh screen during working.
It’s the key washing machine in washing plant which can decide whether the material could be cleaned enough or not.
High Speed Friction washing machine consists of a high-speed rotor, enclosed by detachable screens.
A high-speed rotor ensures materials fully “scrubbed” and “beat” inside the screens. Multiple nozzles spray water to the screens to constantly unclog the screens.Contaminants and dirty water are then discharged via holed screens and collected at the bottom.
The friction washer could complete maximize friction and bring out impurities and contaminants under 750~1200rpm speed. Beakeland understands getting rid of contaminants increases your product values. Thus, our cutting-edge and robust design aims to reach this goal by realizing the highest possible friction washing efficiency.
Main models&specifications:
| Models | Motor power | Rotor diameter | Rotating speed |
| HSW450 | 15 / 22kw | 450mm | 1200rpm |
| HSW550 | 37kw | 550mm | 1200rpm |
| HSW600 | 45kw | 600mm | 1200rpm |
Application Materials of the High Speed Friction Washing Machine:
Highly contaminated materials such as plastic flakes and plastic films,such as Post-Consumer Packaging Waste and Used Containers & Baled Blue Drums,Agricultural Film,Beverage Bottles and Containers,Post-industrial FIlm & Sheet Waste. Contaminants include paper and plastic labels, dirts, sands and grease.
1. PP PE film and flakes
2. HDPE film and flakes
3. LDPE film and flakes
4. PET flakes

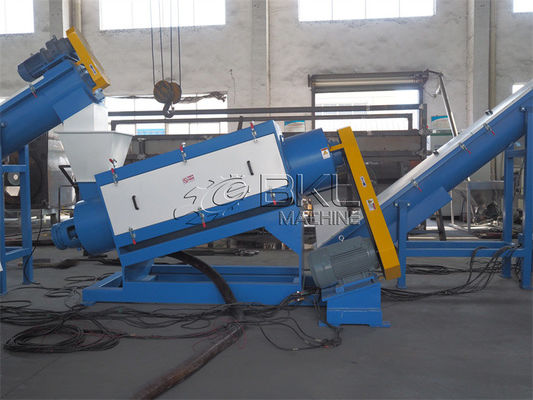

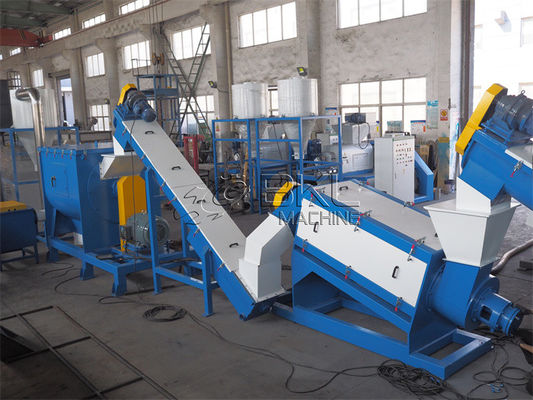

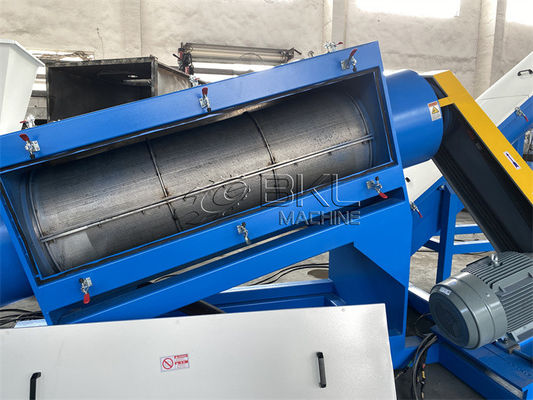

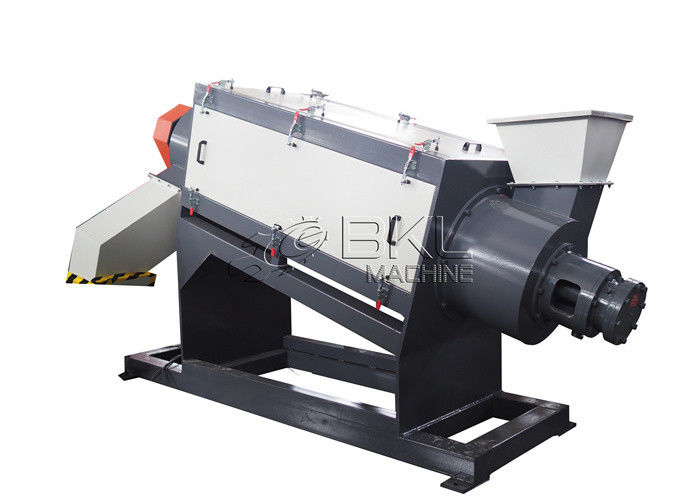

Photos for reference :
